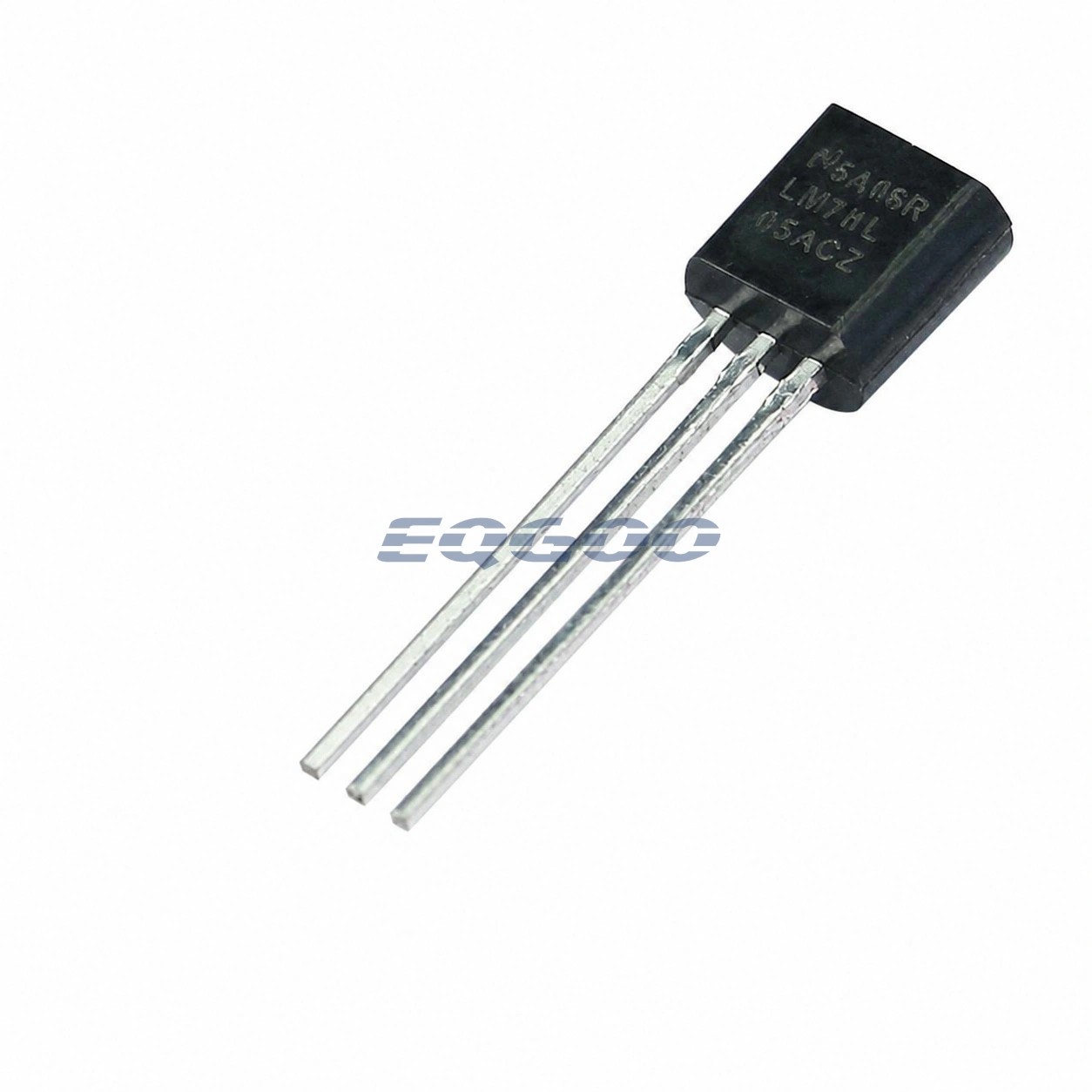

LM78L05ACZ/NOPB TO-92 – Texas Instruments

Linear regulator (LDO) with 100mA output current, 20V input range, and 5V output range.

Add to RFQ View Datasheet
SKU: LM78L05ACZ/NOPB Category: Tag: Brand:
Questions about LM78L05ACZ/NOPB TO-92 – Texas Instruments ?

Key Selection Information

Selection Parameter Confirmed Information
Package TO-92
Operating/input voltage 20V
Output Voltage 5V
Output Current 100mA
Operating Temperature 0℃~+125℃@(Tj)
Number of Outputs 1
Supply Current (Iq) 3mA

Product Overview

LM78L05ACZ/NOPB is a Texas Instruments linear regulator (LDO) identified by the exact orderable code LM78L05ACZ/NOPB. Its confirmed technical identity includes Operating/input voltage 20V, Output Voltage 5V, Output Current 100mA, Operating Temperature 0℃~+125℃@(Tj).

The exact device is described as: 5V Positive Fixed TO-92 Voltage Regulators – Linear, Low Drop Out (LDO) Regulators. Selection should be based on the exact package and the operating conditions required by the design, rather than on a nearby family member or a generic part number.

Technical Specifications

Parameter Value
Package TO-92
Operating/input voltage 20V
Output Voltage 5V
Output Current 100mA
Operating Temperature 0℃~+125℃@(Tj)
Number of Outputs 1
Supply Current (Iq) 3mA
Output Configuration Positive
Features Thermal shutdown;Over Current Protection;Short Circuit Protection
Output Type Fixed

Exact-Part Selection Insight

The exact part combines an output-voltage condition of 5V with an output-current rating of 100mA. Verify the stated test/operating conditions and thermal path before treating both limits as simultaneously achievable in the final circuit.

Selection Notes

  • Package: TO-92
  • Operating/input voltage: 20V
  • Output Voltage: 5V
  • Output Current: 100mA
  • Operating Temperature: 0℃~+125℃@(Tj)

Application Fit

This exact part is appropriate for designs that require a linear regulator (LDO) with the confirmed package and electrical/function parameters above. Final fit depends on the surrounding circuit, interface, thermal and mechanical requirements of the target design.

Design Considerations

Confirm the available supply rail stays inside the stated operating range, including startup and transient conditions.

Check current, power dissipation and board thermal conditions at the intended operating point rather than using the headline rating alone.

Use the exact TO-92 footprint/package definition when checking PCB land pattern, assembly clearance and sourcing equivalence.
