ADM7172ACPZ-R7 8-lead 3 mm × 3 mm LFCSP (CP-8-21) – Analog Devices

Adjustable-output ADM7172, providing up to 2 A from a 2.3 V to 6.5 V input range with 2.3 V to 6.5 V input range and 2 A maximum load current.

Add to RFQ View Datasheet
SKU: ADM7172ACPZ-R7 Category: Tag: Brand:
Questions about ADM7172ACPZ-R7 8-lead 3 mm × 3 mm LFCSP (CP-8-21) – Analog Devices ?

Key Selection Information

Selection Parameter Confirmed Information
Input voltage 2.3 V to 6.5 V
Maximum load current 2 A
Output Adjustable from 1.2 V to VIN − VDO
Output noise 5 µV rms, 100 Hz to 100 kHz
PSRR 60 dB at 100 kHz
Dropout 172 mV at 2 A, VOUT = 3 V family condition
Accuracy ±1.5% over line, load, and temperature
Output capacitor Stable with 4.7 µF ceramic
Package 8-lead 3 mm × 3 mm LFCSP, CP-8-21
Operating temperature −40°C to +125°C

Product Overview

ADM7172ACPZ-R7 is the adjustable-output member of the ADM7172 2 A CMOS LDO family. It accepts 2.3 V to 6.5 V and sets output voltage from 1.2 V up to approximately VIN minus dropout using an external feedback divider.

The regulator is intended for rails where output noise, supply rejection, and transient response are important. The datasheet specifies 5 µV rms output noise over 100 Hz to 100 kHz and 60 dB PSRR at 100 kHz.

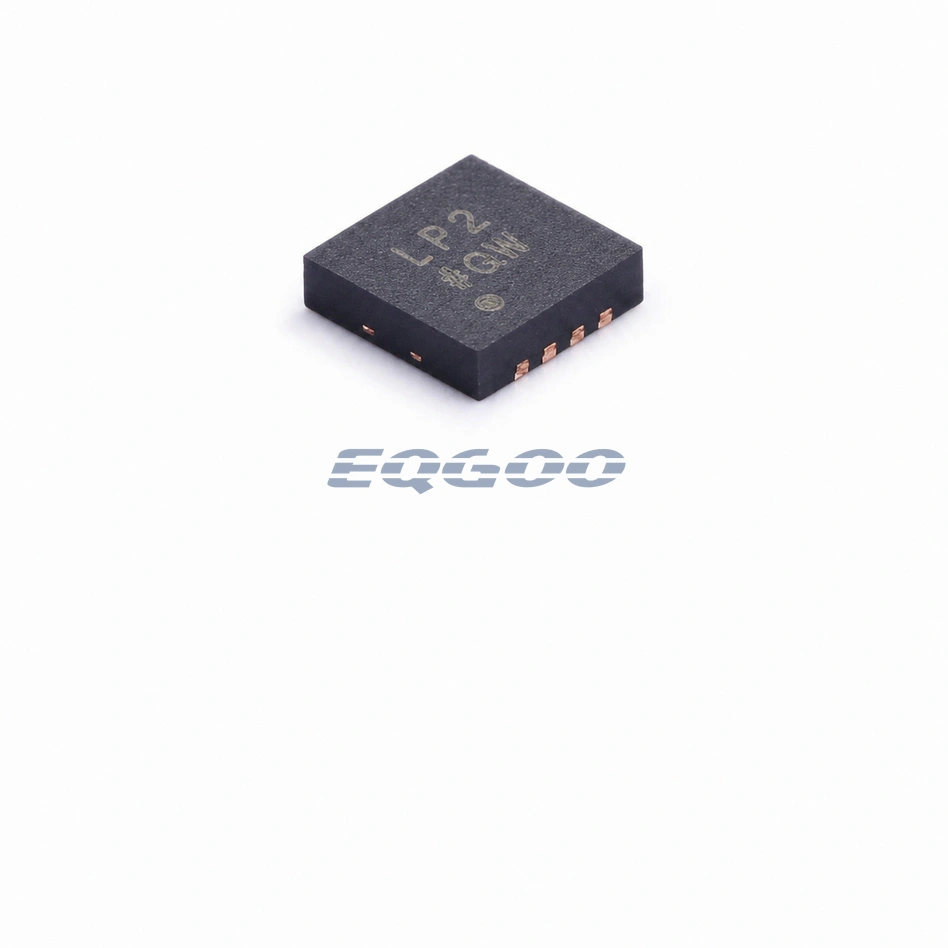

ADM7172ACPZ-R7 product view

Key Features

  • Up to 2 A output current.
  • Adjustable output beginning at 1.2 V.
  • 5 µV rms output noise and high PSRR.
  • Precision enable and adjustable soft-start.

Functional Highlights

The ACPZ-R7 order code is adjustable, not fixed at 3.3 V. The feedback divider therefore becomes part of output accuracy and noise performance.

At high load current, thermal dissipation can dominate selection: approximately (VIN − VOUT) × IOUT is converted to heat in the regulator.

Application Fit

  • Low-noise regulation for ADC and DAC circuits.
  • Precision amplifier supplies.
  • PLL, VCO, and clocking-IC rails.
  • Instrumentation and communications circuits requiring a clean high-current rail.

Design Considerations

  • Set the output with the datasheet feedback network rather than assuming a fixed voltage.
  • Check dropout headroom at the real load current and temperature.
  • Calculate power dissipation and use the exposed pad/PCB copper for thermal performance.
  • Meet the datasheet output-capacitor requirements and keep feedback nodes away from switching noise.

Product Status

Manufacturer status: RECOMMENDED FOR NEW DESIGNS

Analog Devices currently marks the ADM7172 family RECOMMENDED FOR NEW DESIGNS.

For a design that needs a manufacturer-set 3.3 V output without the adjustable version’s external feedback divider, compare ADM7172ACPZ-3.3-R7. It is a separate fixed-voltage ADM7172 orderable; match the output target and input headroom and do not assume an unchanged feedback circuit can be carried across.
