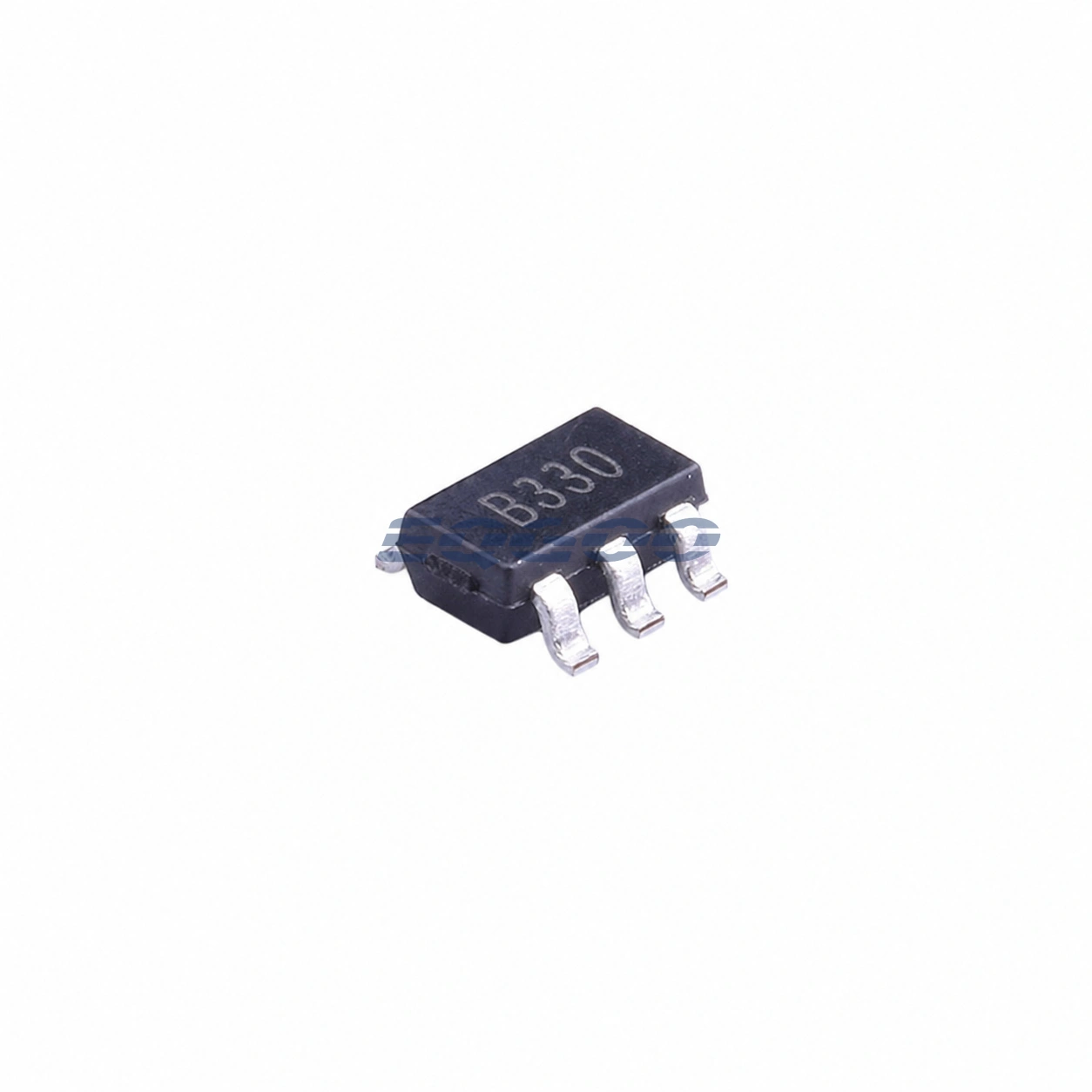

LD3985M33R SOT-23-5L – STMicroelectronics

Fixed 3.3 V, 150 mA low-noise LDO for 2.5 V to 6 V inputs, with 60 mV typical dropout at 150 mA, low-ESR ceramic-capacitor stability and shutdown control.

Add to RFQ View Datasheet
SKU: LD3985M33R Category: Tag: Brand:
Questions about LD3985M33R SOT-23-5L - STMicroelectronics ?

Device Overview

LD3985M33R is the fixed 3.3 V version of STMicroelectronics’ LD3985 ultra-low-dropout, low-noise regulator family in SOT-23-5. It is designed for low-power rails that need up to 150 mA, low dropout, ceramic-capacitor stability, and electronic shutdown.

Key Selection Information

Parameter Verified Information
Manufacturer STMicroelectronics
Exact MPN LD3985M33R
Output voltage 3.3 V fixed
Input operating range 2.5 V to 6 V
Guaranteed output current Up to 150 mA
Dropout voltage 60 mV typical at 150 mA load
Quiescent current 85 µA typical at no load; 170 µA typical at 150 mA load
Shutdown current 1.5 µA maximum in OFF mode
Output noise 30 µV RMS over 10 Hz to 100 kHz
Supply rejection 60 dB at 1 kHz; 50 dB at 10 kHz
Capacitor compatibility Stable with low-ESR ceramic capacitors
Temperature range -40 °C to +125 °C
Package SOT-23-5
Manufacturer status Active / volume production

Engineering Selection Notes

ST specifies a 2.5 V to 6 V input operating range; 6 V is the upper limit of that operating range, not a nominal input value. For the fixed 3.3 V version, the actual input rail must also leave enough headroom for dropout and transient conditions.

The 60 mV typical dropout figure is specified at the full 150 mA load, which makes LD3985 useful when battery or post-regulator headroom is limited. That value is a typical condition, not a universal guaranteed voltage margin, so worst-case design should still follow the datasheet limits and temperature behavior.

Noise and PSRR are meaningful selection axes for sensor, RF-bias, or mixed-signal rails. The bypass/noise architecture can deliver 30 µV RMS output noise, while the low-ESR ceramic-capacitor requirement affects both stability and PCB placement. The output capacitor should be placed close to the regulator rather than treated as a generic bulk capacitor elsewhere on the rail.

Official Engineering Resources

Alternative Candidates for Engineering Evaluation

Candidate alternative parts require engineering verification before substitution. Electrical characteristics, pinout, package, qualification, and application requirements should be verified before use.

MPN Manufacturer Package
LP3985IM5-3.3/NOPB TI SOT-23-5
MIC5255-3.3YD5-TR MICROCHIP TSOT-23-5
LDS3985M33R ST SOT-23-5
LTC1844ES5-3.3#TRMPBF ADI TSOT-23-5
MIC5259-3.3YD5-TR MICROCHIP TSOT-23-5
TPS78433QDBVRQ1 TI SOT-23-5
LP3985IM5X-3.3/NOPB TI SOT-23-5
NCP600SN330T1G onsemi TSOP-5
