Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Resolution / Rate | 24-bit delta-sigma; up to 2 kSPS |
| Effective Resolution | Up to 20 effective bits stated by TI |
| Inputs | 4 single-ended or 2 differential |
| PGA | Gain 1 to 128 |
| Excitation | Two matched current sources, 10 µA to 1.5 mA |
| Reference | Internal 2.048 V reference, 5 ppm/°C typical drift |
| Integrated | Oscillator and temperature sensor; SPI interface |

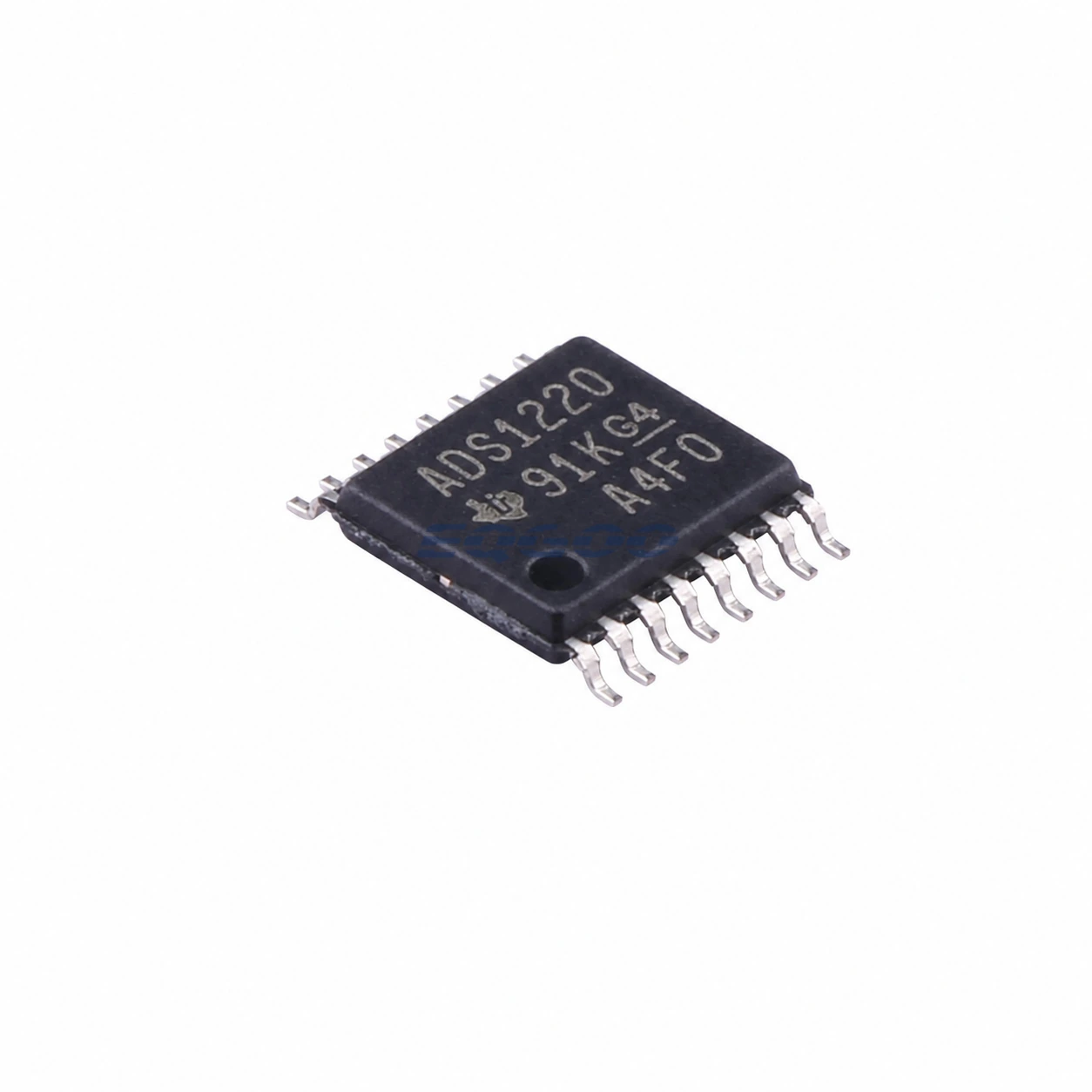

| Exact Package / Packing | TSSOP (PW), 16 pins; 2500-piece large reel; marking ADS1220 |
Product Overview
ADS1220IPWR is the 24-bit member of the compact ADS12x0 sensor ADC architecture. It combines four-input muxing, a low-noise PGA, internal reference and two programmable excitation currents for precision resistance, bridge and low-level sensor measurement.
The extra nominal code width over ADS1120 is useful only if the sensor, reference, PCB leakage/noise and excitation network support it. TI specifies up to about 20 effective bits rather than implying that every 24-bit output code is noise-free.
The IDAC range starts lower than ADS1120, which can help high-resistance sensors or applications where sensor self-heating must be minimized. PWR is the 2500-piece TSSOP reel.
For related devices, see HKEQGOO’s ADCs category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | ADS1220IPWR |
| Resolution / Rate | 24-bit delta-sigma; up to 2 kSPS |
| Effective Resolution | Up to 20 effective bits stated by TI |
| Inputs | 4 single-ended or 2 differential |
| PGA | Gain 1 to 128 |
| Excitation | Two matched current sources, 10 µA to 1.5 mA |
| Reference | Internal 2.048 V reference, 5 ppm/°C typical drift |
| Integrated | Oscillator and temperature sensor; SPI interface |
| Exact Package / Packing | TSSOP (PW), 16 pins; 2500-piece large reel; marking ADS1220 |
| Manufacturer Status | Active / Production |
| Part Marking | ADS1220 |
Functional Highlights
24-bit output supports finer low-rate precision work
The practical benefit appears in noise-limited measurements after choosing gain, data rate and reference architecture appropriately.
10 µA minimum excitation broadens resistance-sensor options
Lower sensor current can reduce self-heating while still supporting ratiometric measurement with an appropriate reference resistor.
Design Considerations
- Base accuracy targets on noise/effective resolution at the selected rate and gain, not the 24-bit word length.
- Calculate sensor self-heating and reference-resistor dissipation for each IDAC setting.
- Protect high-impedance inputs from leakage and noisy digital routing.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists ADS1220IPWR as Active / Production; TSSOP (PW), 16 pins; 2500-piece large tape and reel; −40°C to +125°C; marking ADS1220.
