Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Resolution | 16-bit delta-sigma |
| Inputs | 4 single-ended or 2 differential channels |
| Data Rate | 8 SPS to 860 SPS |
| PGA | Integrated programmable gain amplifier |
| Integrated | Low-drift reference, oscillator and programmable comparator |
| Interface | I²C with four pin-selectable addresses |
| Supply / Current | 2.0 V to 5.5 V; 150 µA continuous stated |

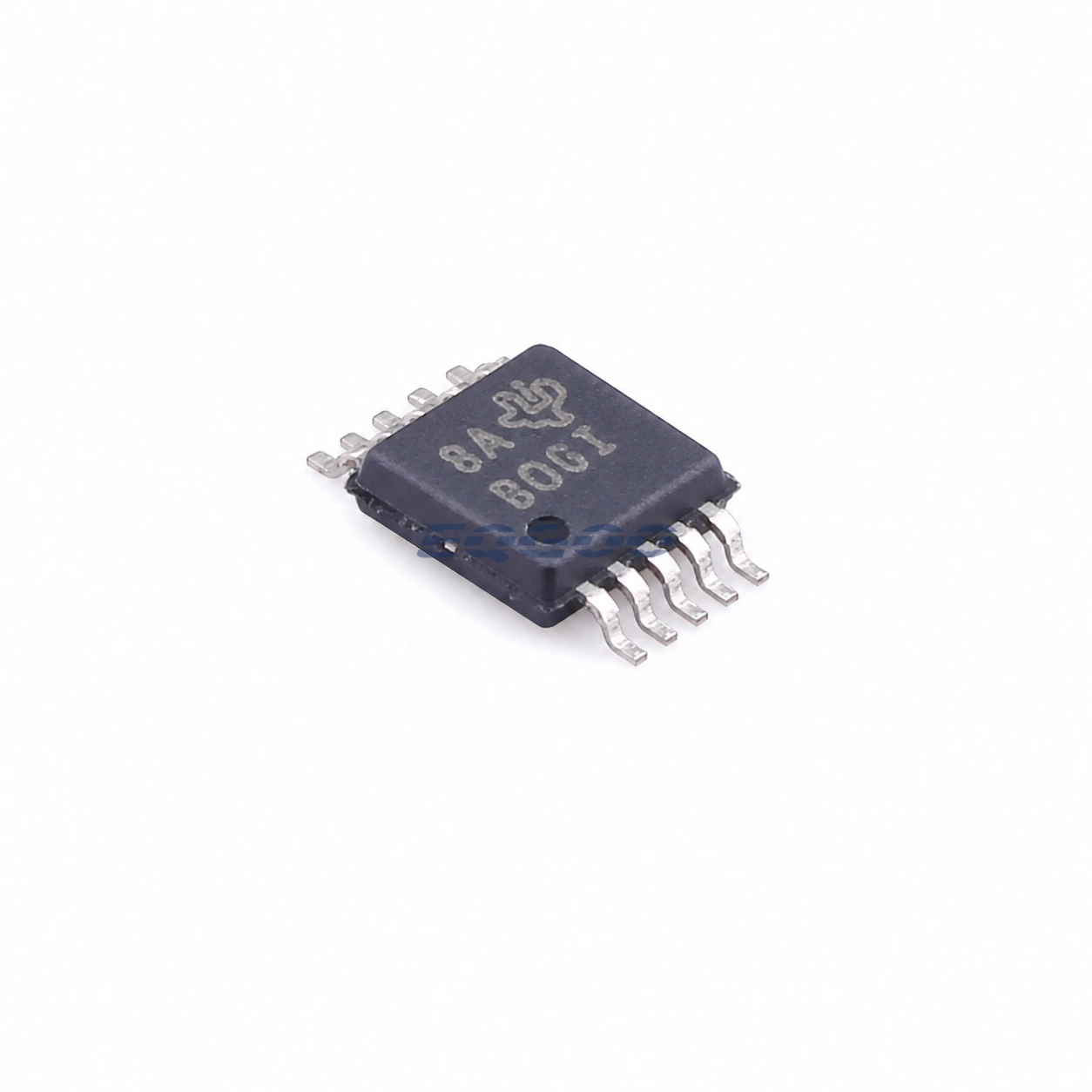

| Exact Package / Packing | VSSOP (DGS), 10 pins; 2500-piece large reel; marking BOGI |
Product Overview
ADS1115IDGSR is a four-input precision ADC for low-bandwidth sensors that need more resolution than ADS1015 while retaining the same I²C-oriented integration style. The input mux supports four single-ended measurements or two differential pairs.
The PGA can zoom the converter range around small differential signals, but it does not permit analog pins to exceed supply/common-mode limits. Sensor offset, fault voltage and common-mode range therefore need separate checks from the selected digital full-scale setting.
The integrated comparator can generate threshold alerts or data-ready behavior, reducing firmware polling. The exact DGSR code is the 2500-piece VSSOP reel with current TI addendum marking BOGI.
For related devices, see HKEQGOO’s ADCs category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | ADS1115IDGSR |
| Resolution | 16-bit delta-sigma |
| Inputs | 4 single-ended or 2 differential channels |
| Data Rate | 8 SPS to 860 SPS |
| PGA | Integrated programmable gain amplifier |
| Integrated | Low-drift reference, oscillator and programmable comparator |
| Interface | I²C with four pin-selectable addresses |
| Supply / Current | 2.0 V to 5.5 V; 150 µA continuous stated |
| Exact Package / Packing | VSSOP (DGS), 10 pins; 2500-piece large reel; marking BOGI |
| Manufacturer Status | Active / Production |
| Part Marking | BOGI |
Functional Highlights
16-bit conversion fits slow bridge, shunt and environmental sensing
Compared with the 12-bit ADS1015, ADS1115 prioritizes code depth at a lower maximum 860-SPS rate.
Comparator/ALERT can move simple threshold logic out of firmware
A rail, battery or sensor threshold can generate an interrupt without continuous I²C reads.
Design Considerations
- Account for delta-sigma filter settling when switching mux channels.
- Choose PGA range with headroom for offset and transient overrange.
- Keep I²C pull-up current and address assignment compatible with the system rail.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists ADS1115IDGSR as Active / Production; VSSOP (DGS), 10 pins; 2500-piece large tape and reel; −40°C to +125°C; marking BOGI.
