MCP1700T-3302E/TT SOT-23-3 – Microchip Technology

Microchip’s fixed 3.3 V, 250 mA low-quiescent-current LDO tape-and-reel packaging with up to 250 mA output current, 3.3 V output range, and 1.6 µA typical quiescent current.

Add to RFQ View Datasheet
SKU: MCP1700T-3302E/TT Category: Tag: Brand:
Questions about MCP1700T-3302E/TT SOT-23-3 – Microchip Technology ?

Key Selection Information

Selection Parameter Confirmed Information
Regulator Type Fixed positive LDO
Output Voltage 3.3 V
Output Current Up to 250 mA
Quiescent Current 1.6 µA typical
Typical Dropout 178 mV at 250 mA
Package SOT-23-3, tape and reel

Product Overview

MCP1700T-3302E/TT is the fixed 3.3 V SOT-23-3 tape-and-reel version of Microchip’s MCP1700 CMOS low-dropout regulator. Its main selection advantage is very low quiescent current combined with modest 250 mA output capability, making it well suited to battery-powered and always-on rails.

The low regulator overhead only helps when the system maintains enough input headroom for regulation. Small-package power dissipation also needs to be checked when the input voltage is substantially above 3.3 V.

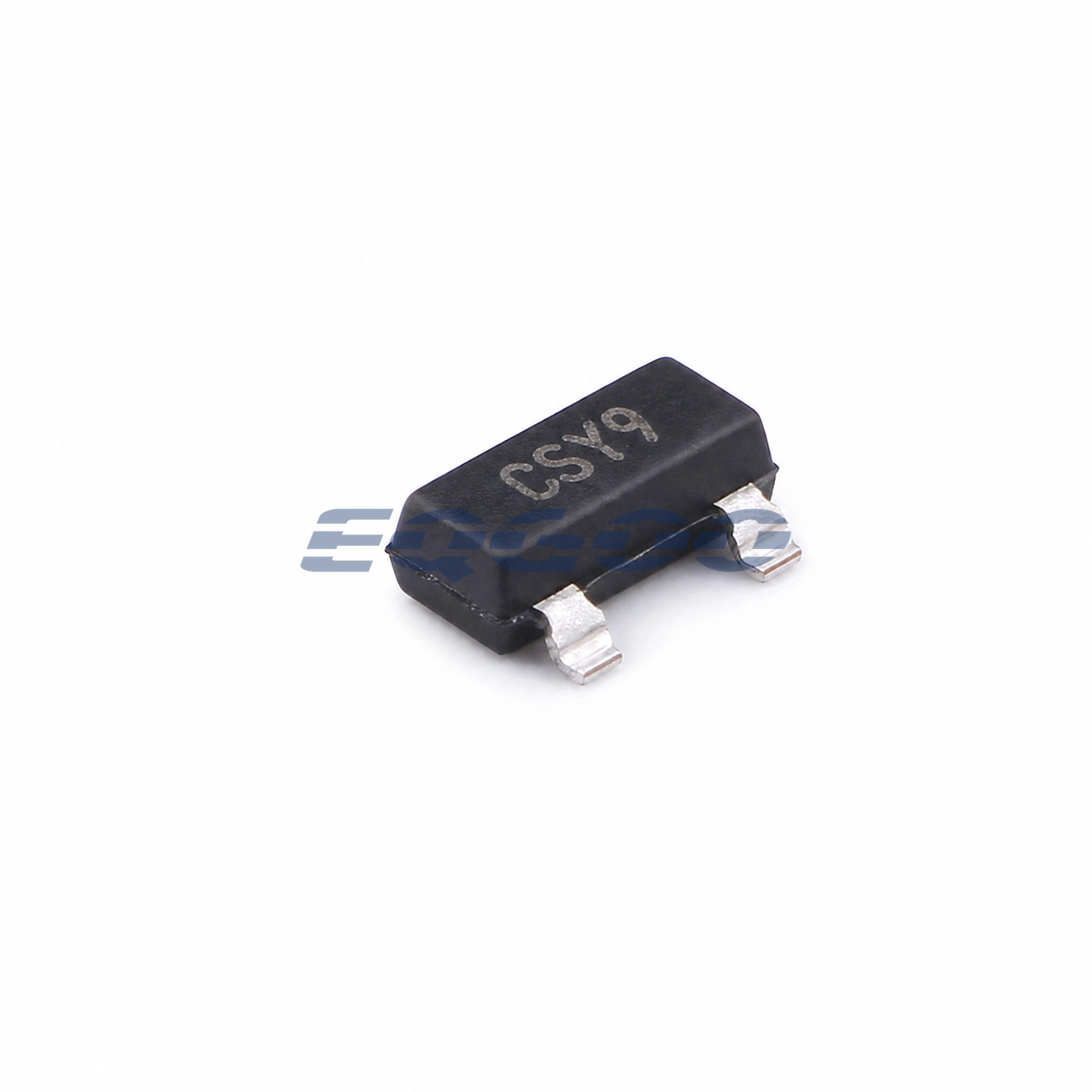

MCP1700T-3302E/TT product view

Technical Specifications

Group Parameter Value / Condition
Output Nominal voltage 3.3 V
Output Current Up to 250 mA
Supply Quiescent current 1.6 µA typical
Dropout At 250 mA 178 mV typical
Stability Output capacitor Stable with 1 µF ceramic
Protection Integrated Short-circuit and overtemperature protection
Package Type SOT-23-3

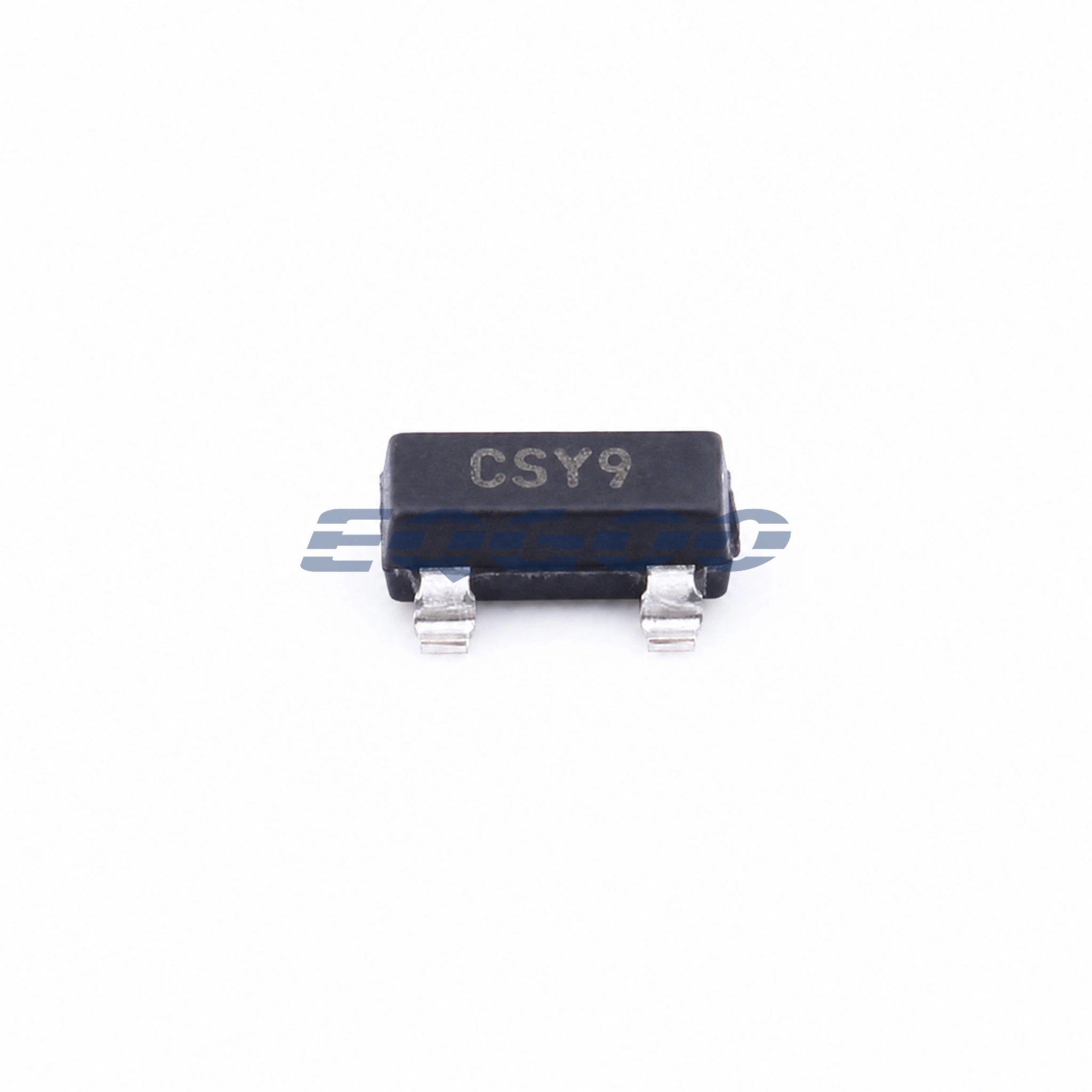

MCP1700T-3302E/TT additional product view

Functional Highlights

Very low quiescent current favors standby rails

Microchip specifies 1.6 µA typical quiescent current, so the regulator contributes little current overhead in low-duty-cycle battery systems.

Low dropout extends usable battery range

The low input-to-output differential allows a 3.3 V rail to remain regulated closer to the source’s end-of-discharge voltage than older high-dropout regulators.

Applications / Application Fit

  • Battery-operated 3.3 V electronics
  • Always-on supervisory and sensor rails
  • Low-power embedded nodes with modest load current

Design Considerations

Ensure worst-case VIN remains high enough to regulate 3.3 V after including source tolerance and dropout.

Use the manufacturer-recommended ceramic output capacitor and placement.

Check SOT-23 power dissipation at the actual VIN and current rather than relying only on the 250 mA rating.
