ADM7150ARDZ-3.3-R7 SOIC-8-EP – Analog Devices

LDO regulator with 800mA output current, 3.3V output range, and 16V supply.

Add to RFQ View Datasheet
SKU: ADM7150ARDZ-3.3-R7 Category: Tag: Brand:
Questions about ADM7150ARDZ-3.3-R7 SOIC-8-EP – Analog Devices ?

Procurement Snapshot

Procurement Field Value
Exact MPN ADM7150ARDZ-3.3-R7
Manufacturer Analog Devices
Package SOIC-8-EP
Availability Contact for current stock and lead time
Datasheet Verified PDF

Key Selection Information

Selection Parameter Confirmed Information
Output Voltage 3.3V
Output Current 800mA
Operating Voltage 16V
Supply Current (Iq) 4.3mA
Number of Outputs 1
Output Configuration Positive
Operating Temperature -40℃~+125℃
Package SOIC-8-EP

Product Overview

ADM7150ARDZ-3.3-R7 is a Fixed 3.3V 800mA Ultralow-Noise LDO Regulator from Analog Devices. The exact order code is preserved for BOM, RFQ and incoming-inspection control. The verified package for this listing is SOIC-8-EP. This exact order-code variant is specified for a 3.3V output, which must be preserved when comparing nearby family suffixes. For engineering selection, the most relevant confirmed values include Output Voltage 3.3V, Output Current 800mA, Operating Voltage 16V, Supply Current (Iq) 4.3mA.

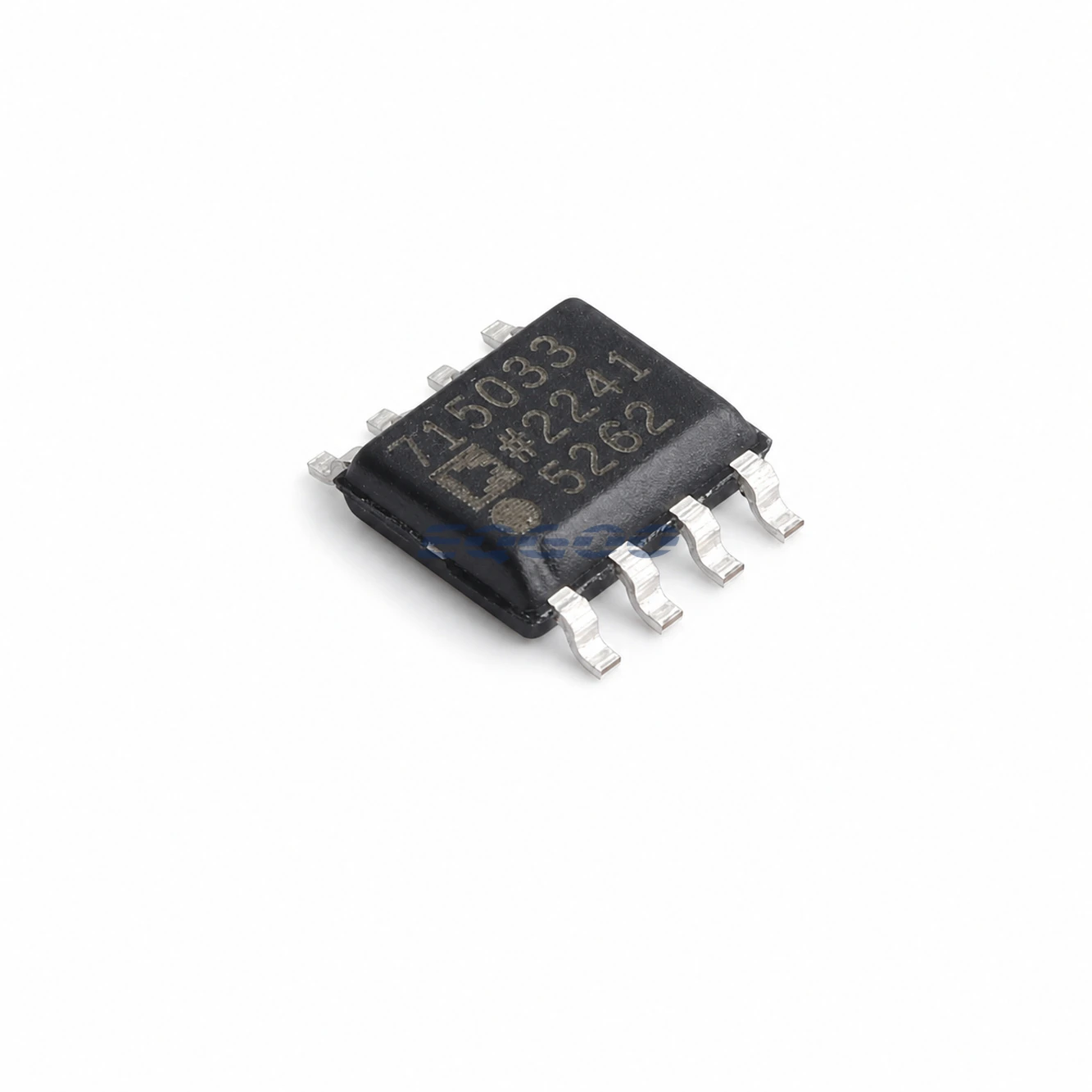

ADM7150ARDZ-3.3-R7 Analog Devices product image

Application Fit

  • Low-noise analog power rails
  • ADC/DAC and precision signal chains
  • RF, clocking and instrumentation supplies

Design Considerations

  • Verify input headroom and dropout at the real load current.
  • Calculate power dissipation and junction temperature at the intended VIN and load.
  • Follow the datasheet capacitor, grounding and exposed-pad recommendations.

Alternative Candidates for Engineering Evaluation

MPN Manufacturer Package
MD7218E33SF4 Mingda Microelectronics ESOP-8
BD33FC0WEFJ-E2 ROHM HTSOP-J8
ADM7150ARDZ-3.3 ADI SOIC-8-EP

These candidates are listed by LCSC. Verify electrical characteristics, pinout, package, qualification and application requirements before substitution.

When a fixed 3.3 V rail needs the smaller 8-lead LFCSP package rather than this SOIC exposed-pad footprint, compare ADM7150ACPZ-3.3-R7. The ADM7150 voltage option and 800 mA family rating are shared, but the LFCSP CP-8-11 versus SOIC RD-8-2 outline affects footprint, assembly and heat removal.

When the load instead requires a factory-fixed 5.0 V output in this ADM7150 RD-8-2 exposed-pad SOIC family, compare ADM7150ARDZ-5.0-R7. The output target is not the same as this 3.3 V regulator, so check load tolerance, available input voltage and power dissipation before making a new selection.
