Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Resolution / Rate | 24-bit delta-sigma; up to 2 kSPS |
| Inputs | 4-channel precision sensor input mux |
| PGA | Integrated low-noise programmable gain amplifier |
| Reference | Integrated precision reference plus external-reference options |
| Excitation | Two programmable current DACs for sensor excitation |
| Diagnostics | Burnout detection / system-monitor functions in family architecture |
| Interface | SPI with data-ready/control pins |

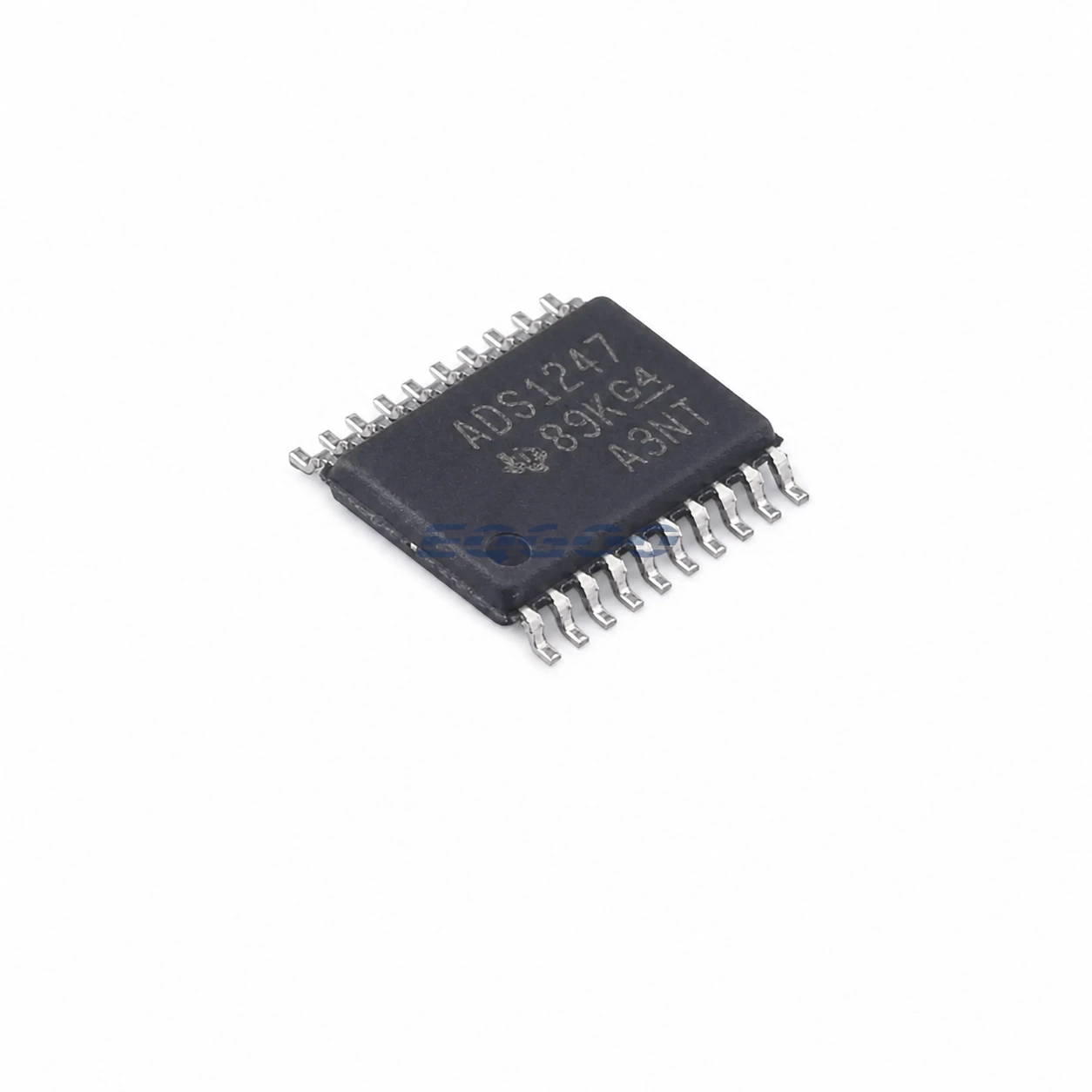

| Exact Package / Packing | TSSOP (PW), 20 pins; 2000-piece large reel; marking ADS1247 |
Product Overview
ADS1247IPWR is a higher-integration precision sensor ADC aimed at RTD, thermocouple, bridge and industrial process inputs. It combines a 24-bit modulator/filter with PGA, reference routing and two excitation-current DACs so multiple sensor types can share one analog front end.
Its value is system integration as much as nominal resolution: excitation current, reference routing, burnout checks and sensor bias functions reduce the external precision components needed around field inputs.
The four-channel ADS1247 sits between simpler compact sensor ADCs and the larger ADS1248 family variant. The exact PWR order code is the active 20-pin TSSOP, 2000-piece reel, with TI addendum temperature range to +105°C.
For related devices, see HKEQGOO’s ADCs category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | ADS1247IPWR |
| Resolution / Rate | 24-bit delta-sigma; up to 2 kSPS |
| Inputs | 4-channel precision sensor input mux |
| PGA | Integrated low-noise programmable gain amplifier |
| Reference | Integrated precision reference plus external-reference options |
| Excitation | Two programmable current DACs for sensor excitation |
| Diagnostics | Burnout detection / system-monitor functions in family architecture |
| Interface | SPI with data-ready/control pins |
| Exact Package / Packing | TSSOP (PW), 20 pins; 2000-piece large reel; marking ADS1247 |
| Manufacturer Status | Active / Production |
| Part Marking | ADS1247 |
Functional Highlights
Sensor excitation and diagnostics are integrated with the converter
RTD current, open-sensor detection and reference topology can be managed through the ADC rather than separate current-source/diagnostic ICs.
Reference topology can be matched to the sensor
Ratiometric resistance measurements can use excitation-derived references, while absolute sensors can use the integrated/external precision reference path.
Design Considerations
- Design IDAC routing and reference-resistor placement as part of the precision error budget.
- Use burnout currents for diagnostics, not as the normal precision excitation source.
- Check mux/filter settling when rapidly switching between sensor types or gains.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists ADS1247IPWR as Active / Production; TSSOP (PW), 20 pins; 2000-piece large tape and reel; −40°C to +105°C; marking ADS1247.
