Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| ADC | 12-bit SAR |
| Channels | 8 single-ended inputs |
| Throughput | 500 kSPS to 1 MSPS specified |
| Interface | SPI/QSPI/MICROWIRE/DSP-compatible serial |
| Analog Supply | 2.7 V to 5.25 V; serves as ADC reference |
| Digital Supply | 2.7 V to VA |
| Power | 2.3 mW typ at 3 V / 10.7 mW typ at 5 V stated |
| Exact Package / Packing | TSSOP (PW), 16 pins; 2500-piece large reel |
Product Overview
ADC128S102CIMTX/NOPB is the high-throughput sibling of ADC128S022, sampling eight multiplexed channels at 500 kSPS to 1 MSPS. It is selected when control, motor, waveform or fast scanner timing cannot tolerate the slower 200 kSPS class.
The faster conversion shortens acquisition time, making source impedance and input RC settling more demanding. A sensor network that worked unbuffered at 200 kSPS may not settle to 12-bit accuracy at 1 MSPS after a large channel step.
VA is the conversion reference as well as analog supply, so reference noise/decoupling remain critical despite the faster SAR core.
For related devices, see HKEQGOO’s ADCs category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | ADC128S102CIMTX/NOPB |
| ADC | 12-bit SAR |
| Channels | 8 single-ended inputs |
| Throughput | 500 kSPS to 1 MSPS specified |
| Interface | SPI/QSPI/MICROWIRE/DSP-compatible serial |
| Analog Supply | 2.7 V to 5.25 V; serves as ADC reference |
| Digital Supply | 2.7 V to VA |
| Power | 2.3 mW typ at 3 V / 10.7 mW typ at 5 V stated |
| Exact Package / Packing | TSSOP (PW), 16 pins; 2500-piece large reel |
| Manufacturer Status | Active / Production |

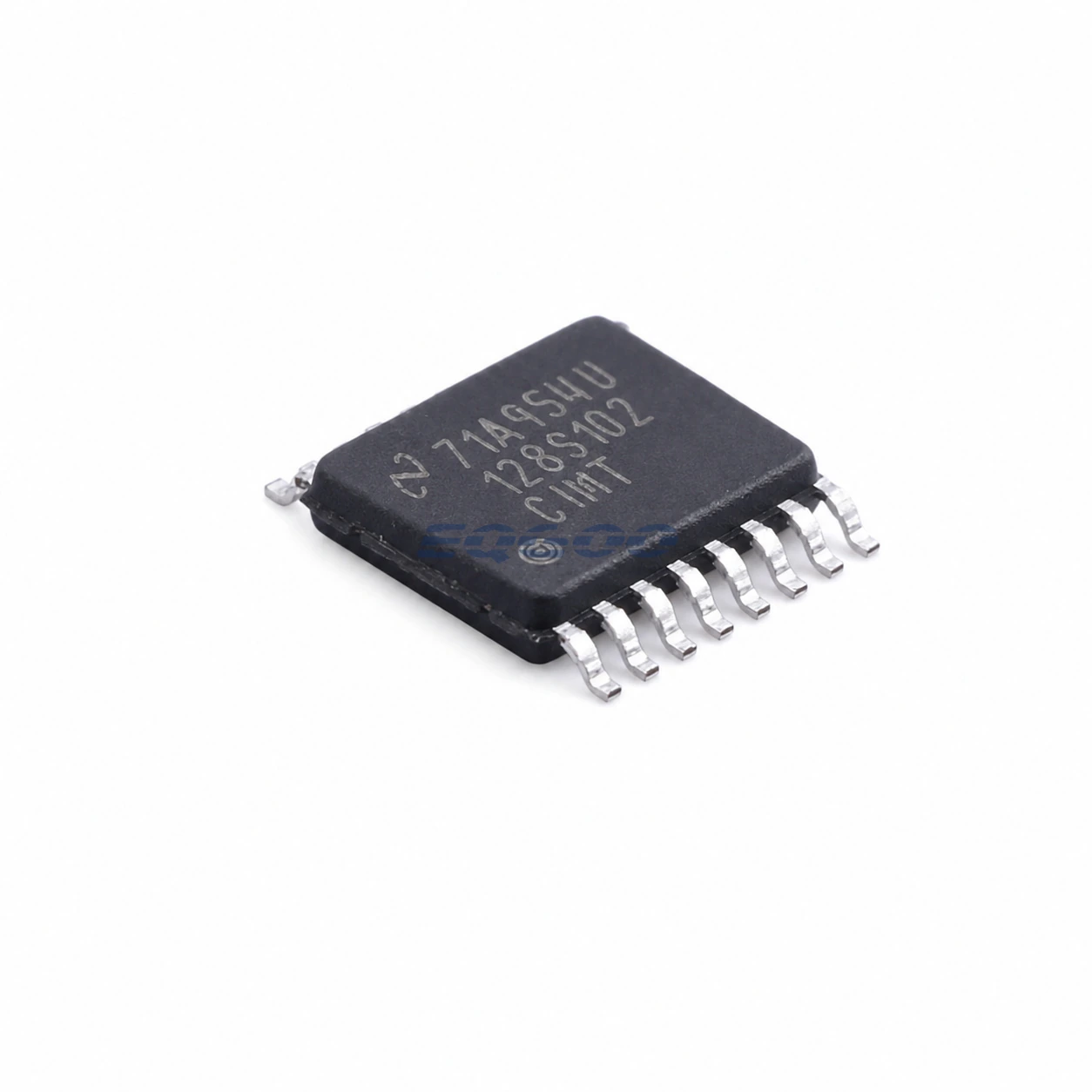

| Part Marking | 128S102 CIMT |
Functional Highlights
1 MSPS aggregate throughput improves scan latency
Eight channels can be revisited much faster, useful for multi-axis/control measurements, but per-channel rate is still the aggregate rate divided by the scan strategy.
Faster SAR acquisition raises driver requirements
Buffer settling, source resistance and anti-alias RC values must be chosen for the shorter sampling window.
Design Considerations
- Verify the input driver settles to 12-bit accuracy within the acquisition window.
- Budget per-channel sample rate after mux sequencing, not from the 1 MSPS headline alone.
- Keep VA low-noise because it defines conversion scale.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists ADC128S102CIMTX/NOPB as Active / Production; TSSOP (PW), 16 pins; 2500-piece large tape and reel; −40°C to +105°C.
