Procurement Snapshot
| Procurement Field | Value |
|---|---|
| Exact MPN | ADM3101EARQZ-REEL |
| Manufacturer | Analog Devices |
| Package | QSOP-16-150mil |
| Availability | Contact for current stock and lead time |
| Datasheet | Verified PDF |
Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Type | Transceiver |
| Voltage – Supply | 3V~5.5V |
| Data Rate | 460Kbps |
| ESD Protect | ±15kV |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Operating Temperature | -40℃~+85℃ |
| Package | QSOP-16-150mil |
Product Overview

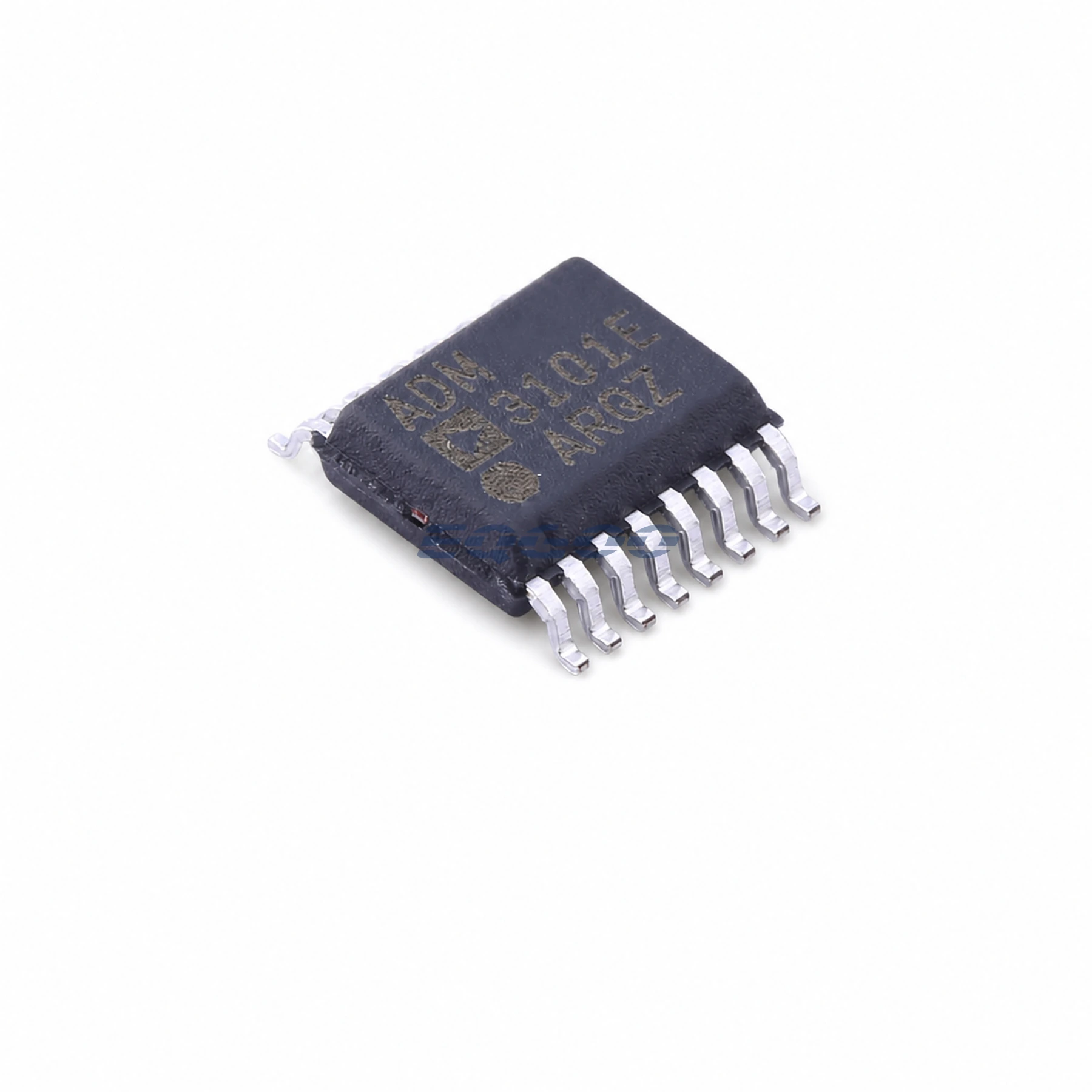

ADM3101EARQZ-REEL is a ±15 kV ESD Protected, 3.3 V Single- Channel RS-232 Line Driver/Receiver from Analog Devices. The exact order code is preserved for BOM, RFQ and incoming-inspection control. The verified package for this listing is QSOP-16-150mil. For engineering selection, the most relevant confirmed values include Type Transceiver, Voltage – Supply 3V~5.5V, Data Rate 460Kbps, ESD Protect ±15kV.
Application Fit
- Industrial and diagnostic serial ports
- Embedded RS-232 interfaces
- Instrumentation communication links
Design Considerations
- Confirm supply range, channel count and data-rate requirement.
- Place required charge-pump capacitors close to the device when applicable.
- Verify the exact package and pinout before replacing a related family member.
Alternative Candidates for Engineering Evaluation
| MPN | Manufacturer | Package |
|---|---|---|
| ADM3101EARQZ | ADI | SSOP-16-150mil |
These candidates are listed by LCSC. Verify electrical characteristics, pinout, package, qualification and application requirements before substitution.
For the same ADM3101E single-channel RS-232 function in a 12-lead 3 mm × 3 mm LFCSP rather than this 16-lead QSOP order code, compare ADM3101EACPZ-REEL. Analog Devices lists both package variants; their PCB footprints and assembly requirements differ, so the choice is a package redesign rather than an automatic footprint-compatible replacement.
Quality & RFQ Support
For quotation or inspection requirements, provide the exact MPN, quantity, destination, target Date Code if applicable, and any requested third-party testing before shipment.
