Procurement Snapshot
| Procurement Field | Value |
|---|---|
| Exact MPN | ADM3050EBRIZ-RL |
| Manufacturer | Analog Devices |
| Package | SOIC-8-300mil |
| Availability | Contact for current stock and lead time |
| Datasheet | Verified PDF |
Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Data Rate(Max) | 12Mbps |
| Isolation Voltage(Vrms) | 5700 |
| CMTI(kV/us) | 75kV/us |
| number of channels | 1 |
| Features | CAN FD;Bus fault detection and protection;Fail-safe |
| Operating Temperature | -40℃~+125℃ |
| Package | SOIC-8-300mil |
| Voltage – Supply (Bus) | 4.5V~5.5V |
Product Overview

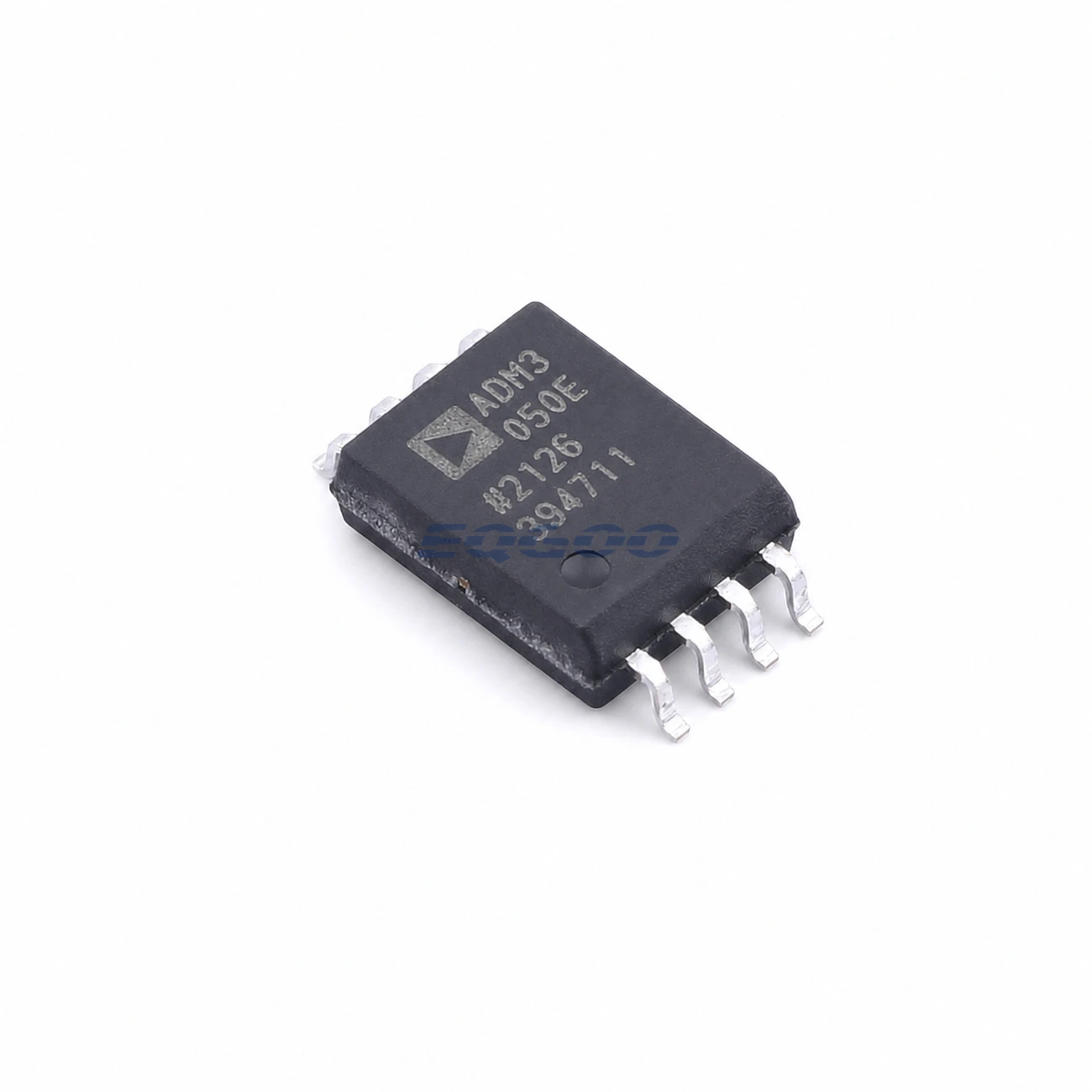

ADM3050EBRIZ-RL is a 5.7 kV rms, Signal Isolated, Basic CAN FD Transceiver from Analog Devices. The exact order code is preserved for BOM, RFQ and incoming-inspection control. The verified package for this listing is SOIC-8-300mil. For engineering selection, the most relevant confirmed values include Data Rate(Max) 12Mbps, Isolation Voltage(Vrms) 5700, CMTI(kV/us) 75kV/us, number of channels 1.
Application Fit
- Industrial CAN/CAN FD networks
- Isolated controller-to-bus interfaces
- Automation and embedded control systems
Design Considerations
- Verify CAN/CAN FD data-rate and logic-side voltage requirements.
- Maintain isolation spacing and follow the datasheet decoupling/layout guidance when applicable.
- Use termination appropriate to the real CAN network.
Alternative Candidates for Engineering Evaluation
| MPN | Manufacturer | Package |
|---|---|---|
| ADM3050EBRIZ | ADI | SOIC-8-300mil |
| ADM3058EBRIZ-RL | ADI | SOIC-8-300mil |
These candidates are listed by LCSC. Verify electrical characteristics, pinout, package, qualification and application requirements before substitution.
If an isolated CAN FD design needs an integrated isolated DC/DC supply rather than this ADM3050E’s separately powered bus side, compare ADM3057EBRWZ-RL. That ADM3057E orderable has a 3 kV rms isolation rating and 20-lead wide SOIC, whereas this signal-isolated ADM3050E is rated 5.7 kV rms in 8-lead SOIC; the isolation target, supplies and footprint are different design choices.
Quality & RFQ Support
For quotation or inspection requirements, provide the exact MPN, quantity, destination, target Date Code if applicable, and any requested third-party testing before shipment.
