Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Channels | 1 comparator |
| Propagation Delay | 40 ns stated |
| Quiescent Current | 40 µA per channel stated |
| Supply | 2.7 V to 5.5 V |
| Input Common Mode | Extends approximately 200 mV beyond either rail |
| Input Offset | 1 mV stated |
| Output | Push-pull |

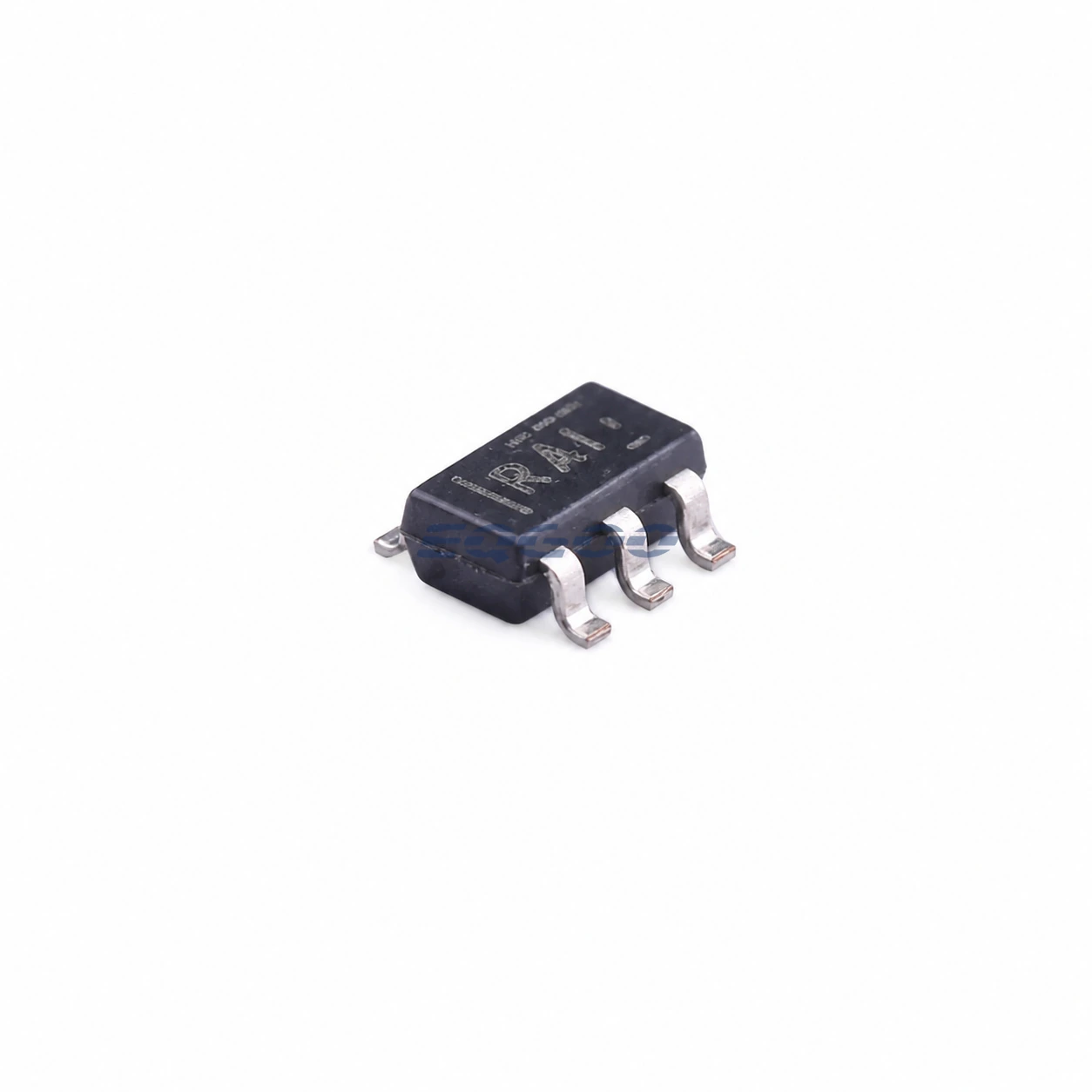

| Exact Package / Packing | SOT-23 (DBV), 5 pins; 3000-piece large reel; −40°C to +125°C; marking RAI |
Product Overview
TLV3201AIDBVR combines nanosecond-class response with very low quiescent current in a five-pin package. It targets portable high-speed threshold detection where standard microsecond open-collector comparators are too slow.
The push-pull output actively drives both high and low, avoiding the RC rise-time penalty of an open-collector pull-up. That simplifies fast logic interfacing but removes wired-OR capability.
The input common-mode range extends slightly beyond both rails, making near-ground and near-supply thresholds easier on a 2.7–5.5 V system. The DBVR order code is the 3000-piece SOT-23 reel.
For related devices, see HKEQGOO’s Comparators category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | TLV3201AIDBVR |
| Channels | 1 comparator |
| Propagation Delay | 40 ns stated |
| Quiescent Current | 40 µA per channel stated |
| Supply | 2.7 V to 5.5 V |
| Input Common Mode | Extends approximately 200 mV beyond either rail |
| Input Offset | 1 mV stated |
| Output | Push-pull |
| Exact Package / Packing | SOT-23 (DBV), 5 pins; 3000-piece large reel; −40°C to +125°C; marking RAI |
| Manufacturer Status | Active / Production |
| Part Marking | RAI |
Functional Highlights
Push-pull output preserves fast edges in both directions
No external pull-up resistor is required, so output rise time is less sensitive to PCB/input capacitance.
40 µA current is unusually low for 40-ns response
The device fits battery systems that need occasional fast event detection without keeping a high-power comparator biased continuously.
Design Considerations
- Do not wire multiple push-pull outputs together as with open-collector comparators.
- Use tight layout and controlled hysteresis for noisy fast thresholds.
- Check input overdrive/common-mode conditions when relying on the 40-ns headline.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists TLV3201AIDBVR as Active / Production; SOT-23 (DBV), 5 pins; 3000-piece large tape and reel; −40°C to +125°C; marking RAI.
