Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | Automotive dual differential comparator |
| Channels | 2 |
| Supply capability | Up to 36 V family |
| Output | Open collector |
| Qualification | AEC-Q100 |
| Temperature range | -40°C to +125°C |
| Package | SOIC-8 / D |
| Product status | Active |
Product Overview

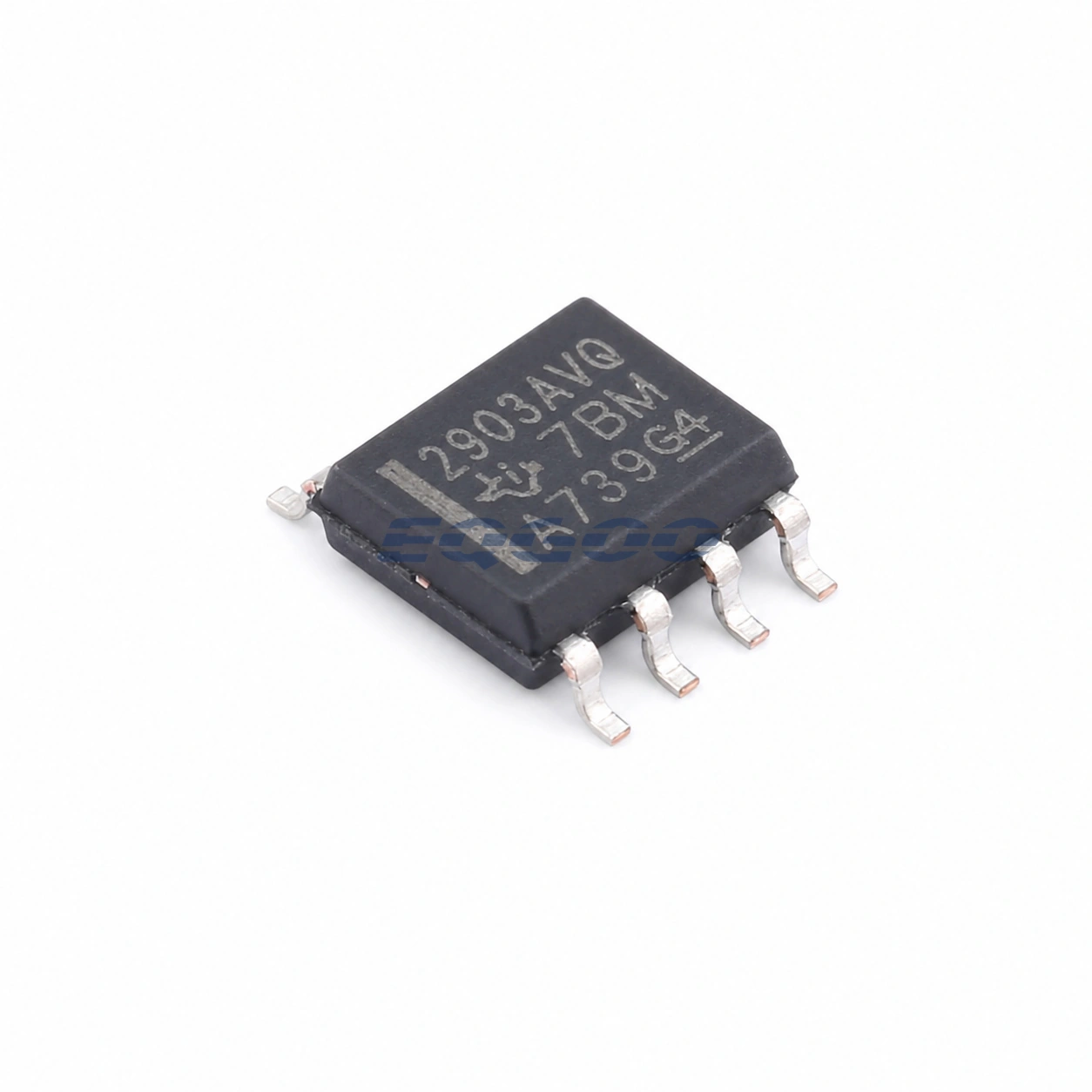

The LM2903AVQDRQ1 is TI’s active automotive-qualified SOIC-8 tape-and-reel orderable for the LM2903-Q1 dual comparator family. Its two open-collector comparator outputs support threshold detection, level monitoring and wired-logic functions across a wide supply range.
Open-collector outputs require external pull-up resistors. That architecture allows the logic-high voltage to be selected independently within the output limits.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Comparator channels | 2 |
| Supply voltage class | Up to 36 V |
| Output type | Open collector |
| Qualification | AEC-Q100 |
| Temperature range | -40°C to +125°C |
| Package | SOIC-8 |
| Large reel | 2,500 pieces |
Design Considerations
Each output requires a pull-up resistor sized for sink current and rise time. A high pull-up value reduces current but slows edges with capacitive loads.
Keep inputs inside the specified common-mode range even when absolute-maximum ratings are not exceeded.
Related Engineering Resources
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. After an order is placed, physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
To request a quotation, provide the manufacturer part number, required quantity, destination, target Date Code if applicable, and any testing or inspection requirements.
