Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | Quad differential comparator |
| Channels | 4 |
| Supply voltage | Up to 30 V |
| Output | Open collector |
| Input common-mode range | Includes ground; up to approximately VCC – 1.5 V |
| Propagation delay | ~1.3 µs family-class value |
| Package | TSSOP-14 / PW |
| Temperature range | -40°C to +125°C |
Product Overview

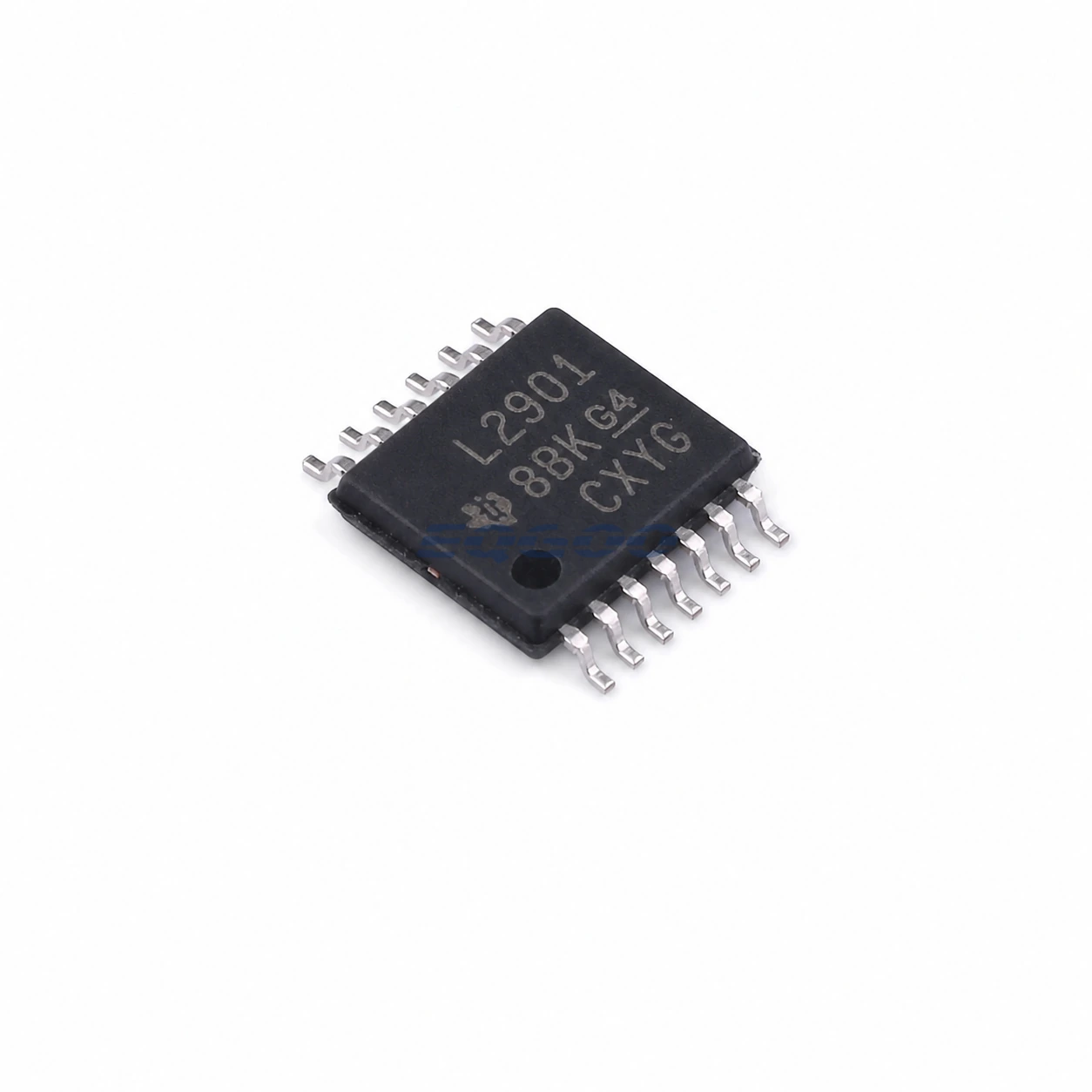

LM2901PWR is TI’s active TSSOP-14 tape-and-reel orderable for the LM2901 quad comparator. Four independent comparator channels share the supply while providing open-collector outputs that can be pulled up to a logic rail appropriate for the receiving circuit.
The open-collector architecture is a core selection point: each output needs an external pull-up, but that also makes wired-logic and level interfacing possible within the output-voltage limits.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Comparator channels | 4 |
| Maximum supply voltage | 30 V |
| Input common-mode | Includes 0 V; upper end roughly VCC – 1.5 V |
| Input bias current | 250 nA maximum family specification |
| Propagation delay | ~1.3 µs reference value |
| Output type | Open collector |
| Operating temperature | -40°C to +125°C |
| Package | 14-pin TSSOP |
| Packing | Large reel, 2,000 pieces |
Design Considerations
Every output requires a pull-up resistor. Choose the pull-up to meet low-level current, rise-time and power requirements; a very large resistor reduces current but slows rising edges through load capacitance.
Keep both comparator inputs inside the valid common-mode range. Inputs near the positive rail can leave the specified region even though the absolute-maximum voltage has not been exceeded.
Related Engineering Resources
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. After an order is placed, physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
To request a quotation, provide the manufacturer part number, required quantity, destination, target Date Code if applicable, and any testing or inspection requirements.
