Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | Single low-power comparator |
| Output | CMOS/TTL-compatible push-pull |
| Supply range | 1.6 V to 5.5 V |
| Quiescent current | 600 nA typical, 1 µA maximum |
| Input range | Greater than rail-to-rail, approximately VSS – 0.3 V to VDD + 0.3 V |
| Typical propagation delay | 4 µs at 100 mV overdrive |
| Temperature range | -40°C to +125°C |
| Product status | Active exact orderable |
Product Overview

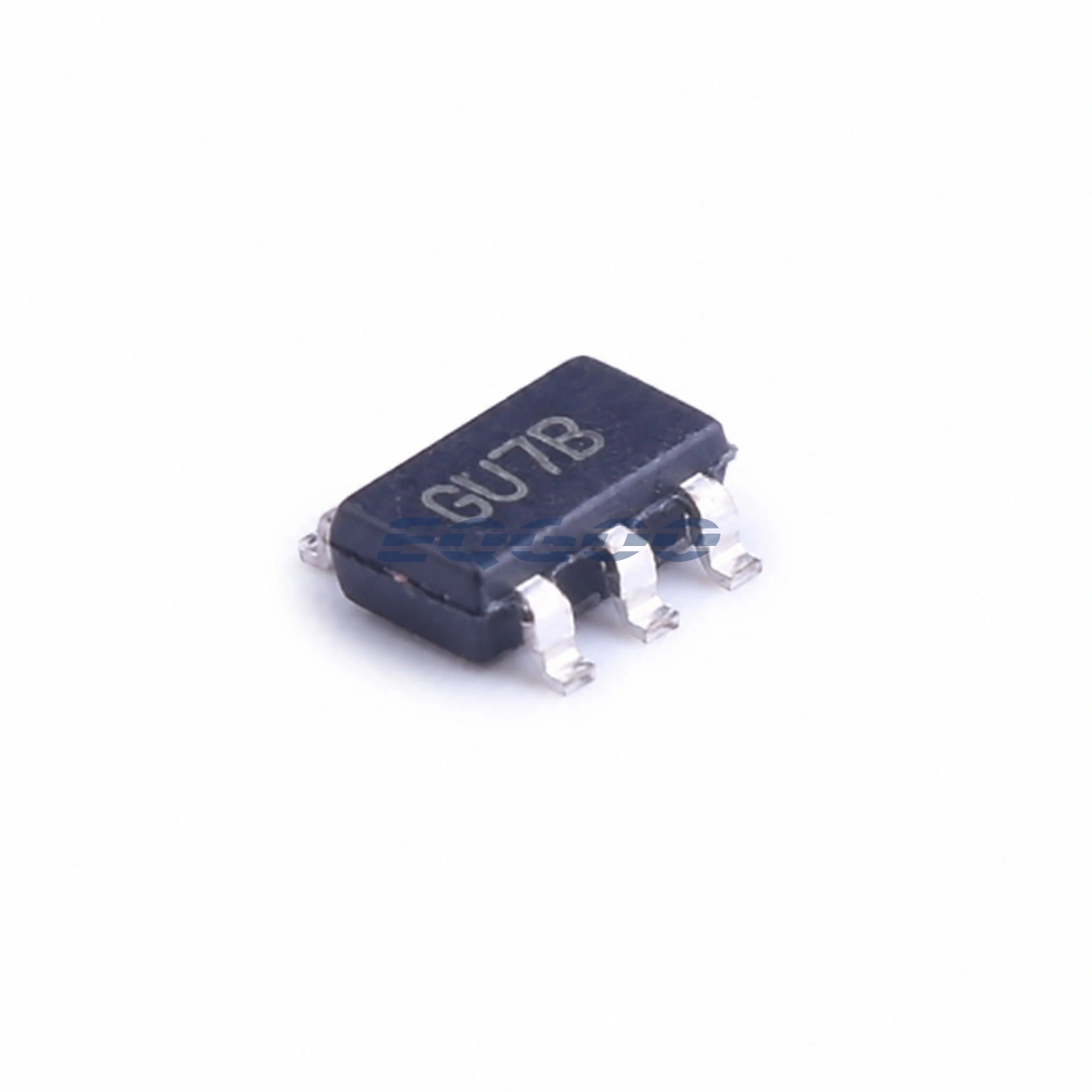

The MCP6541RT-E/OT is the extended-temperature, reverse-pinout SOT-23-5 ordering variant of Microchip’s MCP6541 sub-microamp comparator. It operates from 1.6 V to 5.5 V and combines a push-pull output with very low supply current for battery-powered threshold, supervisory and sensor-interface circuits.
The RT pinout is a procurement and PCB-layout detail that should not be ignored. Microchip offers several MCP6541 SOT-23 orientations, so a functionally similar MCP6541 order code can still be mechanically incompatible if the suffix is changed without checking the pin assignment.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Comparator channels | 1 |
| Supply voltage | 1.6 V to 5.5 V |
| Quiescent current | 600 nA typical, 1 µA max |
| Input bias current | 1 pA max at stated conditions |
| Input offset voltage | 7 mV max at 5.5 V orderable listing |
| Typical propagation delay | 4 µs at 100 mV overdrive |
| Maximum propagation delay | 8 µs orderable listing |
| Typical hysteresis | 3.3 mV family feature |
| Output type | Push-pull CMOS/TTL |
| Temperature grade | Extended, -40°C to +125°C |
| Package | SOT-23-5 |
Design Considerations
The greater-than-rail input range is useful for low-voltage sensing, but input pins still have absolute-maximum limits. Signals that can exceed the supply rails during power sequencing should be checked against the protection-current limits rather than relying on the functional common-mode description alone.
The device trades speed for extremely low current. A several-microsecond propagation delay is suitable for supervisory and slow sensing functions, but it is not a substitute for a high-speed comparator in timing-critical edge detection.
