Device Overview

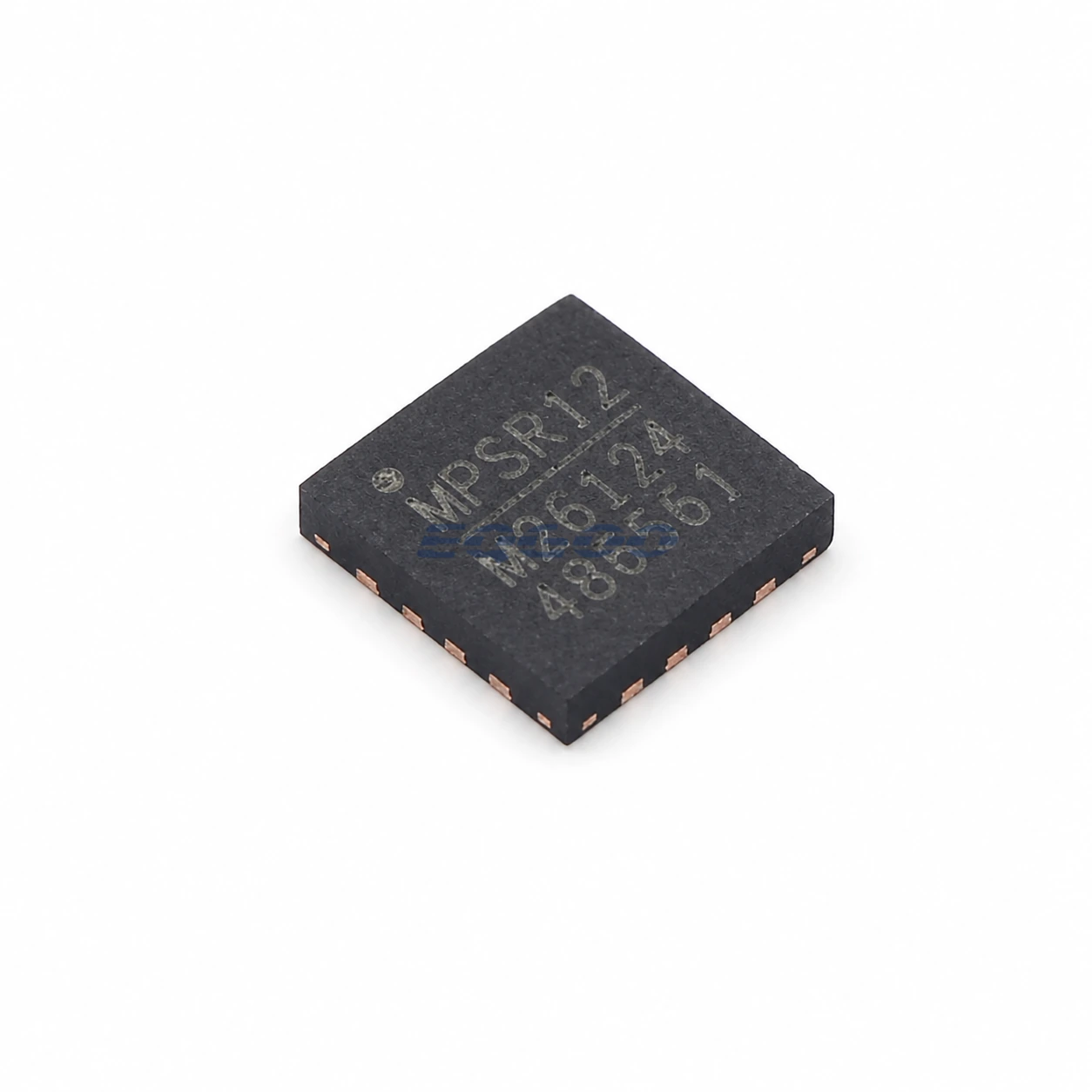

MP26124GR-Z is a QFN-16 switching charger for 4-series-cell Li-ion battery packs. The recommended input range is 18 V to 24 V, charge current is programmable up to 2 A, and the converter operates at a fixed 600 kHz switching frequency.
The charger integrates a 0.2 ohm power MOSFET and uses separate current and voltage control loops. MPS specifies battery-voltage regulation accuracy of ±0.75% and efficiency up to 90% under the relevant operating conditions.
Confirmed Technical and Ordering Data
| Parameter | Confirmed value | Scope / condition |
|---|---|---|
| Device Function | 4-series-cell Li-ion step-down switching battery charger | Manufacturer documented |
| Input Voltage | 18 to 24 V | recommended operating supply range |
| Output Voltage Or Range | 4S Li-ion battery charge voltage | charge voltage controlled by charger loop |
| Current Rating | 2 A | programmable charge current up to |
| Switching Frequency | 600 kHz | fixed |
| Dropout Or Efficiency | Up to 90% efficiency | Manufacturer documented |
| Accuracy | ±0.75 % | battery-voltage regulation accuracy |
| Protection Features | Cycle-by-cycle current limiting; thermal shutdown; battery temperature monitoring; programmable safety timer | Manufacturer documented |
| Integrated Switch | 0.2 ohm integrated power MOSFET | Manufacturer documented |
| Exact Package | QFN-16, 4 mm x 4 mm GR-Z exact orderable | Manufacturer documented |
| Temperature Grade | Maximum junction temperature 125 °C | recommended operating condition; no lower bound stated in this table |
Engineering Selection Guidance
The 4S designation is fundamental to this part. The MP26124 is not a universal one-to-four-cell charger; its voltage-control architecture and application circuit target four series Li-ion cells, so cell count must be matched before considering package or current capability.
The datasheet Recommended Operating Conditions state an 18-24 V input and a maximum junction temperature of 125 °C, but do not provide a complete lower-to-upper junction-temperature interval in that table. This page therefore does not invent a -40 °C lower endpoint.
Battery temperature monitoring, a programmable safety timer, cycle-by-cycle current limiting and thermal shutdown are integrated safety functions. The exact GR-Z orderable is the 4 mm x 4 mm QFN-16 tape-and-reel version.
Lifecycle and Procurement
Monolithic Power Systems currently lists MP26124GR-Z as an active exact orderable. The exact package is QFN-16, 4 mm x 4 mm. The documented temperature information used for this exact part is Maximum junction temperature 125 °C. Manufacturer lifecycle status does not state HKEQGOO stock, lead time, MOQ or final availability.
Official Engineering Resources
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment.
Request a Quote
For MP26124GR-Z sourcing, provide the required quantity, destination, target Date Code if applicable, and any inspection or testing requirements.
