Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | Single sub-microamp comparator |
| Output | Push-pull CMOS/TTL |
| Supply range | 1.6 V to 5.5 V |
| Quiescent current | 600 nA typical, 1 µA max |
| Package | Rotated SOT-23-5 |
| Temperature grade | Industrial |
| Family status | In Production |
Product Overview

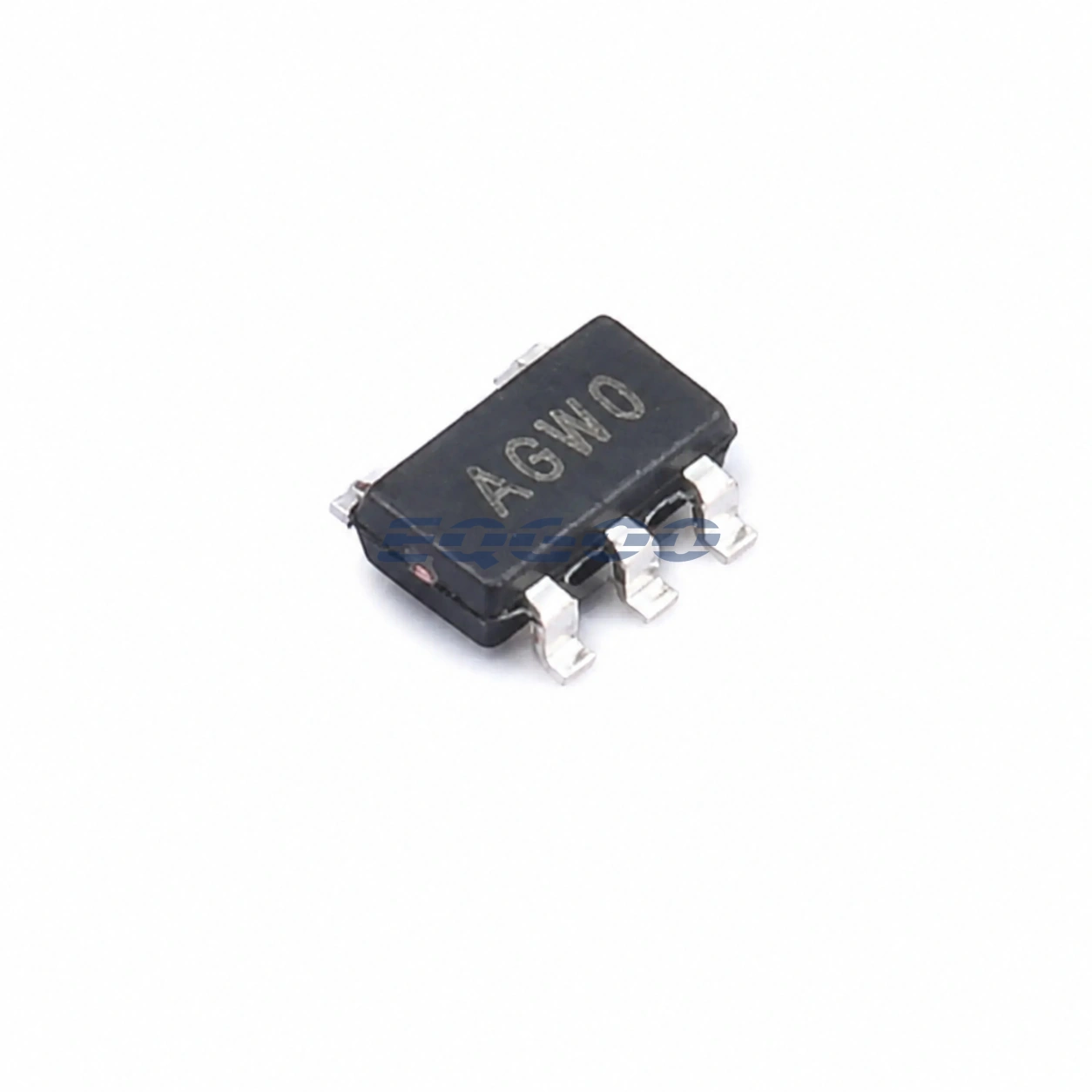

The MCP6541RT-I/OT is the industrial-temperature rotated-tape SOT-23 variant of Microchip’s MCP6541 push-pull comparator. It targets battery and always-on threshold functions where supply current below 1 µA is valuable.
The RT code is mechanically important because the SOT-23 pin orientation differs from other MCP6541 variants. Schematic and footprint review should use the exact RT pinout.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Supply voltage | 1.6–5.5 V |
| Typical quiescent current | 600 nA |
| Maximum quiescent current | 1 µA |
| Output type | Push-pull |
| Input operation | Greater-than-rail-to-rail family capability |
| Short-circuit output current | ~±30 mA at 5.5 V reference |
| Comparator timing reference | 100 mV overdrive, CL = 36 pF |
| Package | SOT-23-5 rotated |
Design Considerations
Because the output is push-pull, an external pull-up is generally unnecessary and can increase power. This differs from open-drain comparator families.
Low supply current comes with microsecond-class response. Confirm propagation delay for the required overdrive before using the part in fast fault protection.
