Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Channels | 1 comparator |
| Propagation Delay | 4.5 ns stated typical class |
| Supply | 2.7 V to 5.5 V |
| Input / Output | Rail-to-rail I/O family behavior |
| Output | Push-pull CMOS output |
| Control | Shutdown function on TLV3501 |
| Supply Current | 3.2 mA stated |

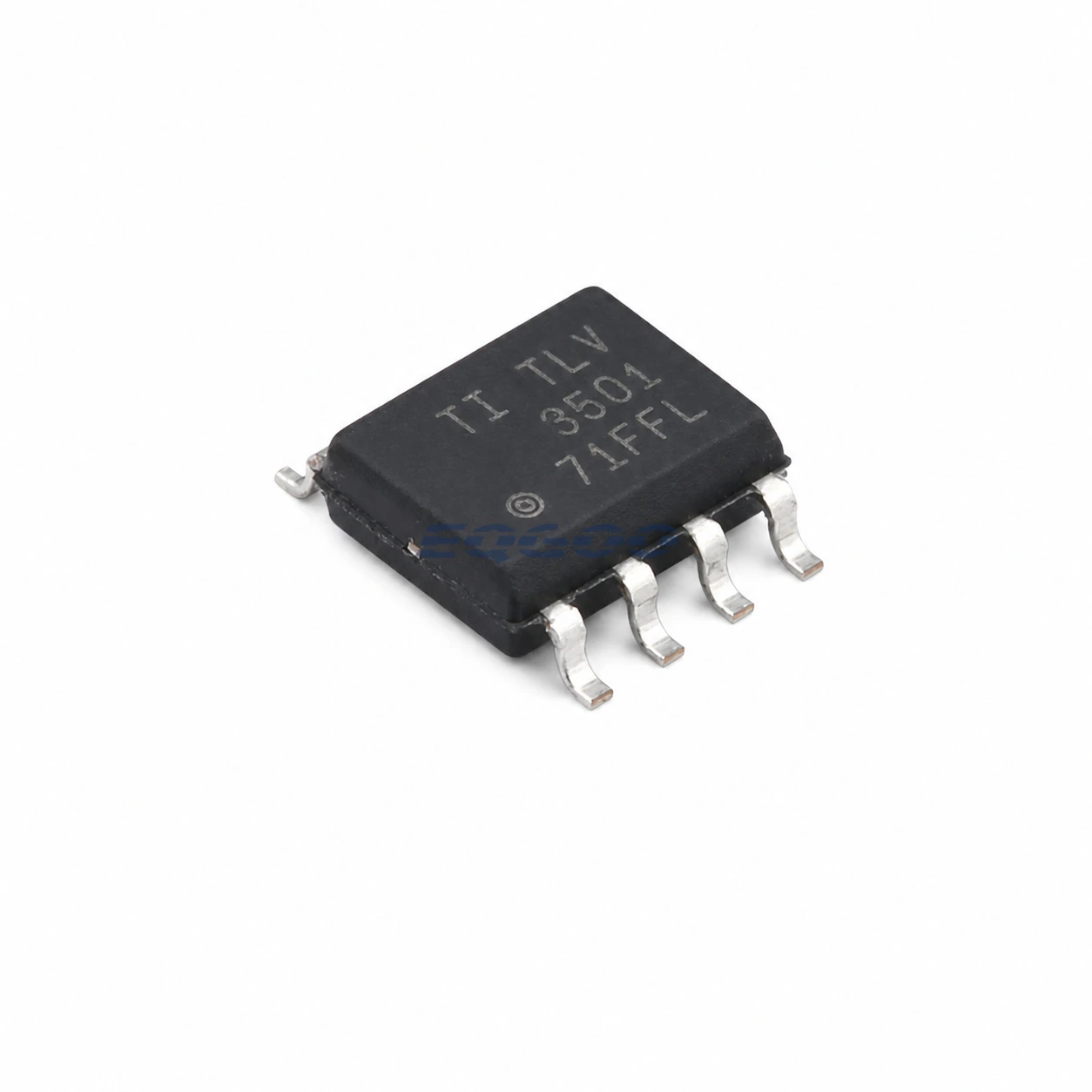

| Exact Package / Packing | SOIC (D), 8 pins; 2500-piece large reel; −40°C to +125°C; marking TLV 3501 |
Product Overview
TLV3501AIDR is a very fast single comparator for timing, threshold and zero-crossing applications where tens-of-nanoseconds devices are still too slow. The 4.5-ns class propagation delay pushes layout and input overdrive into the same importance level as the IC specification itself.
Its push-pull output directly drives CMOS or TTL logic without an external pull-up resistor. The shutdown function can reduce activity or gate the comparator when a measurement path is inactive.
The exact AIDR order code is the SOIC-8 large-reel version. It should not be confused with slower low-power comparators such as TLV3201, whose design target is tens of microamps rather than maximum speed.
For related devices, see HKEQGOO’s Comparators category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | TLV3501AIDR |
| Channels | 1 comparator |
| Propagation Delay | 4.5 ns stated typical class |
| Supply | 2.7 V to 5.5 V |
| Input / Output | Rail-to-rail I/O family behavior |
| Output | Push-pull CMOS output |
| Control | Shutdown function on TLV3501 |
| Supply Current | 3.2 mA stated |
| Exact Package / Packing | SOIC (D), 8 pins; 2500-piece large reel; −40°C to +125°C; marking TLV 3501 |
| Manufacturer Status | Active / Production |
| Part Marking | TLV 3501 |
Functional Highlights
Nanosecond propagation supports edge/timing discrimination
Fast test, clock recovery and zero-crossing circuits can respond within a few nanoseconds when sufficient overdrive is available.
Push-pull output avoids open-collector RC delay
Both rising and falling logic edges are actively driven, which preserves speed into typical digital input capacitance.
Design Considerations
- Use very short input/output traces and controlled grounding to prevent output-to-input coupling and oscillation.
- Evaluate propagation delay at the actual input overdrive rather than only quoting the headline value.
- Do not wire push-pull outputs together as an open-collector wired alarm bus.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists TLV3501AIDR as Active / Production; SOIC (D), 8 pins; 2500-piece large tape and reel; −40°C to +125°C; marking TLV 3501.
