Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Channels | 2 comparators |
| Output | Open-collector outputs |
| Input Common Mode | Includes ground in single-supply use |
| Supply | Wide single- or dual-supply comparator family |
| Temperature | −55°C to +125°C exact order-code range |
| Logic Interface | Pull-up selectable for TTL/MOS/CMOS-compatible logic levels |
| Use | Military-temperature threshold, zero-crossing and supervisory functions |

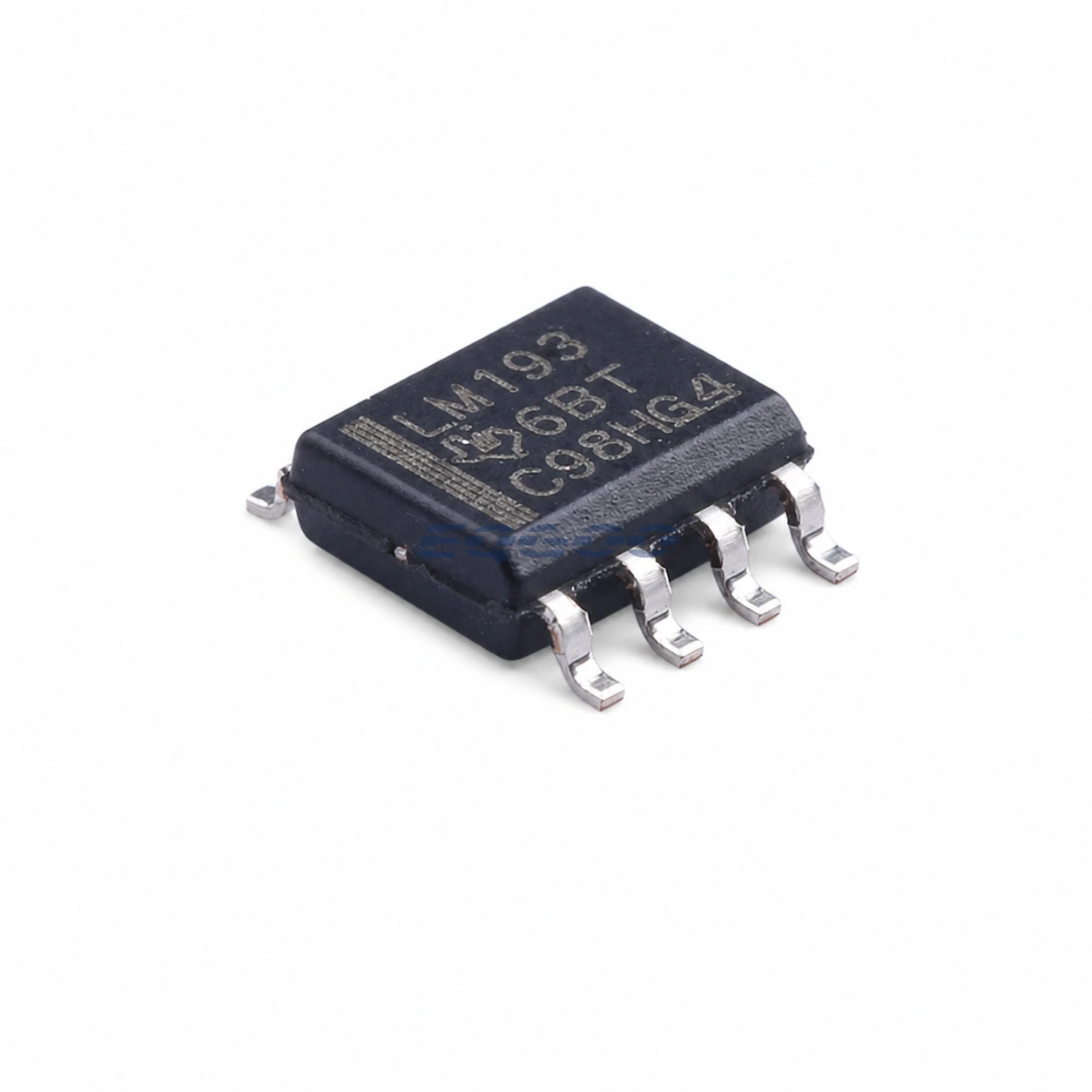

| Exact Package / Packing | SOIC (D), 8 pins; 2500-piece large reel; marking LM193 |
Product Overview
LM193DR is the extended-temperature dual member of the long-established LM193/293/393 comparator family. It is aimed at wide-temperature analog threshold detection rather than the lowest propagation delay or lowest offset available from newer B-generation comparators.
The open-collector outputs require external pull-up resistors, but that also lets the logic-high voltage be chosen independently from the comparator supply within ratings. Multiple outputs can be wire-combined for some alarm functions.
The −55°C to +125°C rating is a primary exact-order differentiator from commercial-family variants. The DR suffix selects SOIC-8 on a 2500-piece reel.
For related devices, see HKEQGOO’s Comparators category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | LM193DR |
| Channels | 2 comparators |
| Output | Open-collector outputs |
| Input Common Mode | Includes ground in single-supply use |
| Supply | Wide single- or dual-supply comparator family |
| Temperature | −55°C to +125°C exact order-code range |
| Logic Interface | Pull-up selectable for TTL/MOS/CMOS-compatible logic levels |
| Use | Military-temperature threshold, zero-crossing and supervisory functions |
| Exact Package / Packing | SOIC (D), 8 pins; 2500-piece large reel; marking LM193 |
| Manufacturer Status | Active / Production |
| Part Marking | LM193 |
Functional Highlights
Open-collector output gives flexible logic-domain interfacing
The pull-up can target a lower logic rail than the analog comparator supply, useful when sensing higher-voltage systems with a low-voltage MCU.
Temperature grade is selection-critical
LM193DR is relevant when the product must operate below the −40°C limit common to industrial parts.
Design Considerations
- Choose pull-up resistance from required rise time, sink current and wired-logic use.
- Do not apply newer LM393B/LM2903B offset or speed claims to this legacy LM193 order code.
- Check input common-mode and differential limits at the actual supply rails.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists LM193DR as Active / Production; SOIC (D), 8 pins; 2500-piece large tape and reel; −55°C to +125°C; marking LM193.
