Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Package | SOIC-16-300mil |
| Supply voltage | 2.25V~5.5V;2.25V~5.5V |
| Number of Channels | 4 |
| Isolation voltage | 5000 |
| CMTI(kV/us) | 100kV/us |
| Operating Temperature | -55℃~+125℃ |
| Propagation Delay(tpd) | 10.7ns |
Product Overview

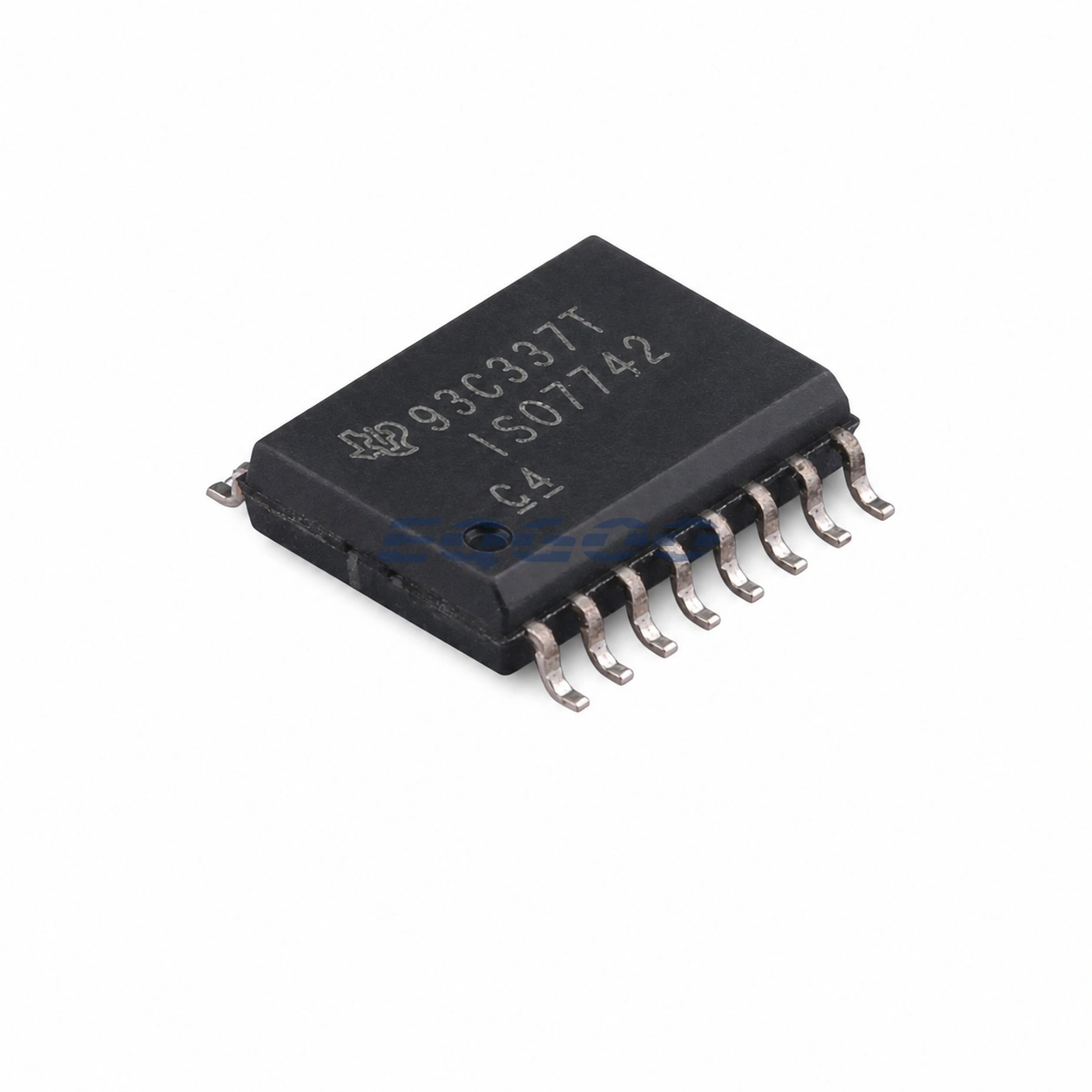

ISO7742DWR is a Texas Instruments digital isolator identified by the exact orderable code ISO7742DWR. Its confirmed technical identity includes Supply voltage 2.25V~5.5V;2.25V~5.5V, Number of Channels 4, Isolation voltage 5000, CMTI(kV/us) 100kV/us.
The exact device is described as: Digital Isolator 5000Vrms Forward 2 Channel Reverse 2 Channel 100Mbps 100kV/us CMTI SOIC-16-300mil. Selection should be based on the exact package and the operating conditions required by the design, rather than on a nearby family member or a generic part number.
Technical Specifications
| Parameter | Value |
|---|---|
| Package | SOIC-16-300mil |
| Supply voltage | 2.25V~5.5V;2.25V~5.5V |
| Number of Channels | 4 |
| Isolation voltage | 5000 |
| CMTI(kV/us) | 100kV/us |
| Operating Temperature | -55℃~+125℃ |
| Propagation Delay(tpd) | 10.7ns |
| Number of Forward Channels | 2 |
| Number of Reverse Channels | 2 |
| Data Rate(Max) | 100Mbps |
| Default Output | High Level |
Exact-Part Selection Insight
This device combines 4 isolated channels with 5000 Vrms isolation and 100Mbps maximum data rate. Channel direction, supply domains, PCB creepage/clearance and required working-voltage standard must be checked as a system; isolation-voltage headline value alone does not define the complete barrier design.
Selection Notes
- Package: SOIC-16-300mil
- Supply voltage: 2.25V~5.5V;2.25V~5.5V
- Number of Channels: 4
- Isolation voltage: 5000
- CMTI(kV/us): 100kV/us
Application Fit
This exact part is appropriate for designs that require a digital isolator with the confirmed package and electrical/function parameters above. Final fit depends on the surrounding circuit, interface, thermal and mechanical requirements of the target design.
Design Considerations
Confirm the available supply rail stays inside the stated operating range, including startup and transient conditions.
Use the exact SOIC-16-300mil footprint/package definition when checking PCB land pattern, assembly clearance and sourcing equivalence.
Related Engineering Resources
- Datasheet — verified HKEQGOO-hosted technical document for this exact product identity.
Alternative Parts
The following source-displayed parts may be useful for engineering comparison. They are not claimed to be drop-in replacements; verify electrical ratings, package, pinout, lifecycle, and application conditions before substitution.
- ISO7842DWR — TI; SOIC-16-300mil
- ISO7842DWW — TI; SOIC-16-300mil
- ISO7742FDWR — TI; SOIC-16-300mil
- BL7142WH — BL; SOIC-16-300mil
- BL7142WL — BL; SOIC-16-300mil
- CEU8742U1W — coileasy; SOP-16-300mil
- SI8642ED-B-ISR — SILICON LABS; SOIC-16-300mil
- SI8642ED-B-IS — SILICON LABS; SOIC-16-300mil
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. After an order is placed, physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
To request a quotation, provide the manufacturer part number, required quantity, destination, target Date Code if applicable, and any testing or inspection requirements.
Alternative Candidates for Engineering Evaluation
Candidate alternative parts require engineering verification before substitution. Electrical characteristics, pinout, package, qualification, and application requirements should be verified before use.
| MPN | Manufacturer | Package |
|---|---|---|
| ISO7842DWR | TI | SOIC-16-300mil |
| ISO7842DWW | TI | SOIC-16-300mil |
| ISO7742FDWR | TI | SOIC-16-300mil |
| BL7142WH | BL | SOIC-16-300mil |
| BL7142WL | BL | SOIC-16-300mil |
| CEU8742U1W | coileasy | SOP-16-300mil |
| SI8642ED-B-ISR | SILICON LABS | SOIC-16-300mil |
| SI8642ED-B-IS | SILICON LABS | SOIC-16-300mil |
