Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Package | SOIC-16-300mil |
| Supply voltage | 2.7V~5.5V;4.75V~5.25V |
| Isolation voltage | 2500 |
| CMTI(kV/us) | 25kV/us |
| Operating Temperature | -40℃~+85℃ |
| Features | Fail-safe circuit;Power-up determined state |
| ESD Protect | ±2kV |
Product Overview

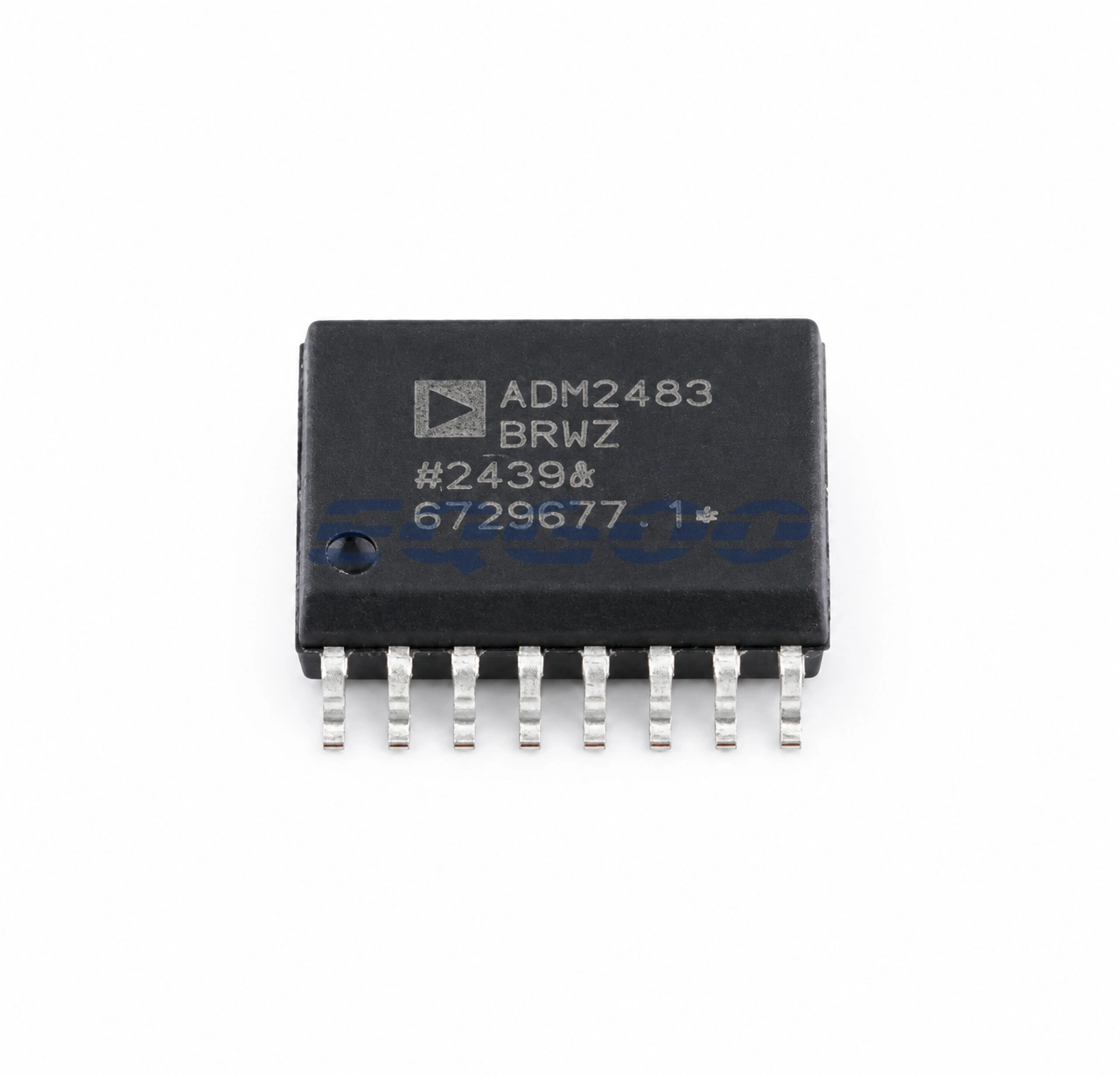

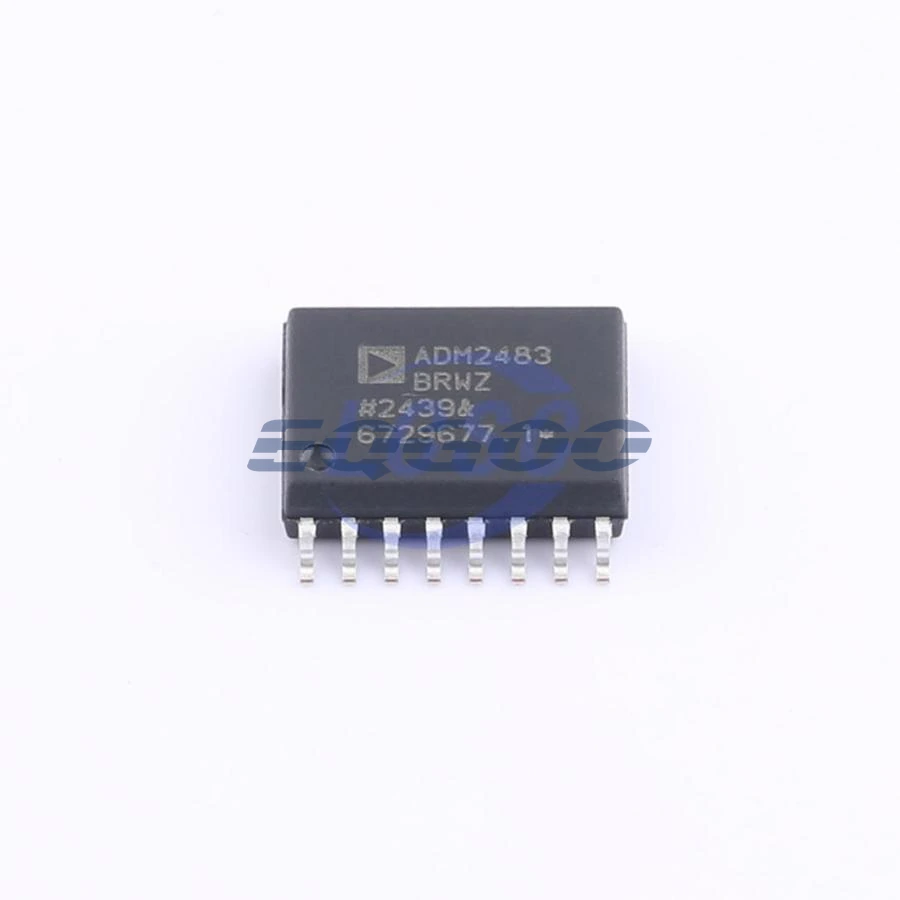

ADM2483BRWZ-REEL is a Analog Devices digital isolator identified by the exact orderable code ADM2483BRWZ-REEL. Its confirmed technical identity includes Supply voltage 2.7V~5.5V;4.75V~5.25V, Isolation voltage 2500, CMTI(kV/us) 25kV/us, Operating Temperature -40℃~+85℃.
The exact device is described as: 25kV/us SOIC-16-300mil Digital Isolators. Selection should be based on the exact package and the operating conditions required by the design, rather than on a nearby family member or a generic part number.
Technical Specifications
| Parameter | Value |
|---|---|
| Package | SOIC-16-300mil |
| Supply voltage | 2.7V~5.5V;4.75V~5.25V |
| Isolation voltage | 2500 |
| CMTI(kV/us) | 25kV/us |
| Operating Temperature | -40℃~+85℃ |
| Features | Fail-safe circuit;Power-up determined state |
| ESD Protect | ±2kV |
| Number of Drivers | 1 |
| Number of Nodes | 256 |
| Communication Mode | Half-Duplex |
| Data Rate(Max) | 500Kbps |
| Number of Receivers | 1 |
Selection Notes
- Package: SOIC-16-300mil
- Supply voltage: 2.7V~5.5V;4.75V~5.25V
- Isolation voltage: 2500
- CMTI(kV/us): 25kV/us
- Operating Temperature: -40℃~+85℃
Application Fit
This exact part is appropriate for designs that require a digital isolator with the confirmed package and electrical/function parameters above. Final fit depends on the surrounding circuit, interface, thermal and mechanical requirements of the target design.
Design Considerations
Confirm the available supply rail stays inside the stated operating range, including startup and transient conditions.
Verify interface voltage levels, bus topology and timing/data-rate requirements against the rest of the system.
Use the exact SOIC-16-300mil footprint/package definition when checking PCB land pattern, assembly clearance and sourcing equivalence.
