Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Switch type | SPDT RF switch |
| Frequency range | 0.1 GHz to 6 GHz |
| Insertion loss | 0.25 dB at 1 GHz product-detail value |
| Isolation | 40 dB at 1 GHz product-detail value |
| RF power handling | Up to 30 dBm |
| Supply voltage | 1.8 V to 3.3 V |
| Package | PG-TSNP-6-2, 0.7 × 1.1 mm |
| Product status | Discontinued / End of Life |
Product Overview

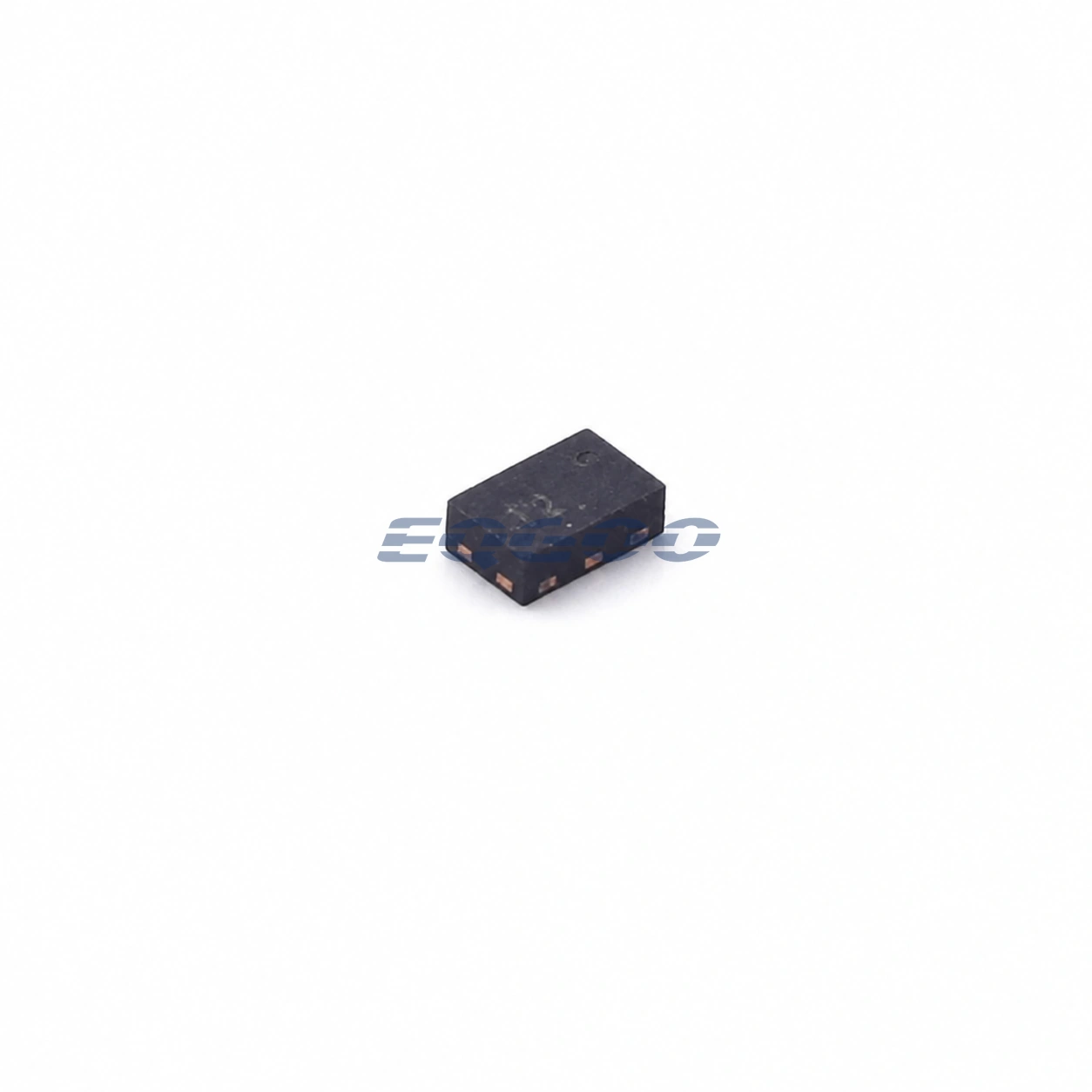

The BGS12SN6E6327XTSA1 is the exact Infineon OPN for the BGS12SN6 SPDT RF switch in the PG-TSNP-6-2 package. It covers 0.1 GHz to 6 GHz and was designed for low-loss, high-isolation antenna or transmit/receive switching in compact wireless systems.
Infineon now marks the product discontinued and End of Life. That lifecycle state is a primary procurement consideration: electrical evaluation can still use the documented 0.25 dB insertion loss and 40 dB isolation at 1 GHz, but new designs should not assume long-term availability of this exact OPN.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Topology | SPDT |
| Frequency range | 0.1 GHz to 6 GHz |
| Insertion loss at 1 GHz | 0.25 dB product-detail value |
| Isolation at 1 GHz | 40 dB product-detail value |
| RF power handling | Up to 30 dBm |
| Supply voltage | 1.8 V to 3.3 V |
| Control | On-chip digital control logic |
| RF ports | Bidirectional |
| Package | PG-TSNP-6-2 |
| Package size | 0.7 × 1.1 mm |
| Package height | 0.375 mm maximum |
| DC blocking | Not required when no DC is applied to RF lines |
| Product status | Discontinued / End of Life |
Design Considerations
The newer BGS12WN6 extends frequency coverage and uses a different TSNP package variant, so it should not be treated as an automatic drop-in replacement for the BGS12SN6. Compare footprint, control behavior and band-specific S-parameters before redesign.
For legacy repair or sourcing, preserve the full OPN including the E6327XTSA1 suffix. Package or packing suffix differences can matter for exact procurement even when the base BGS12SN6 electrical family name is unchanged.
