Key Selection Information

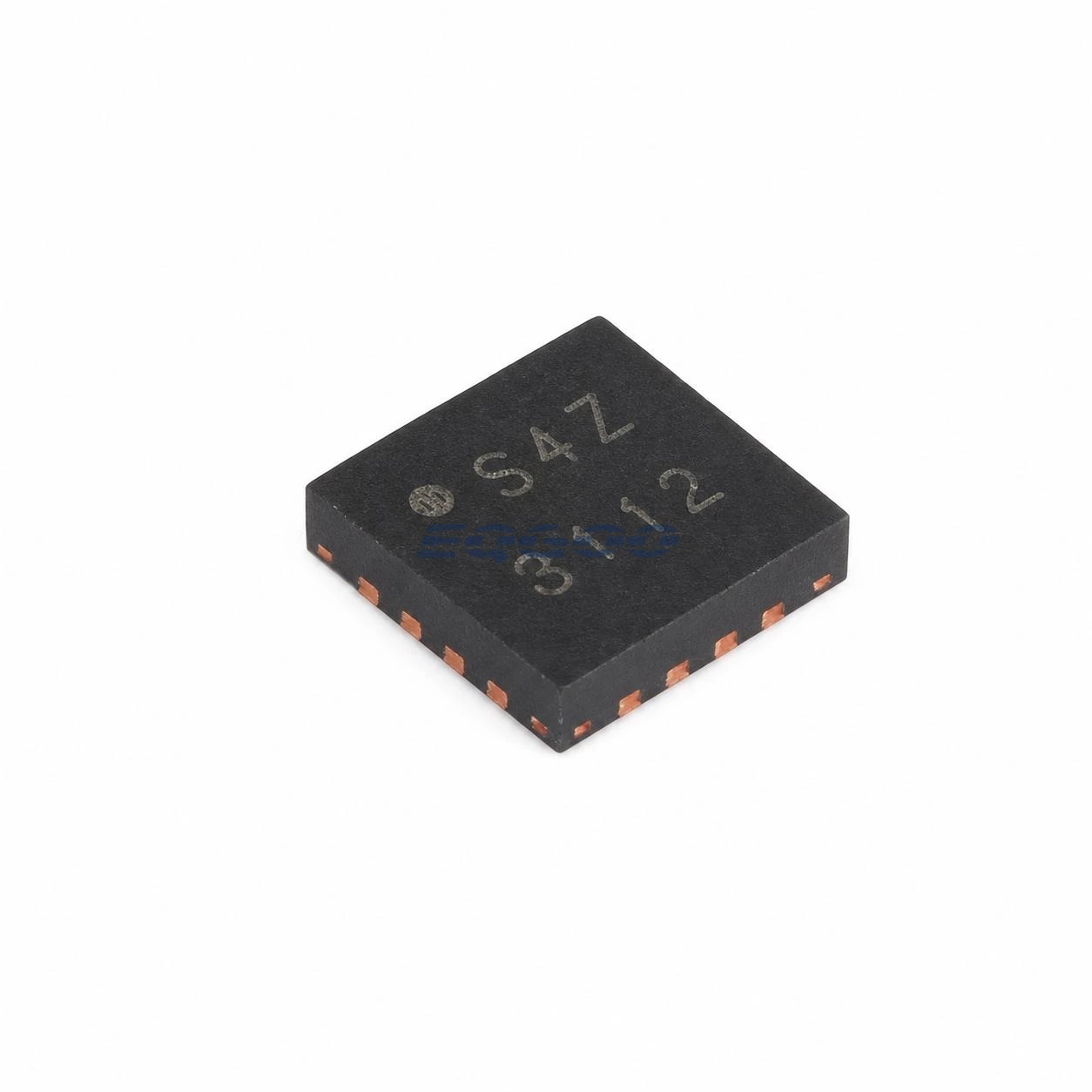

| Selection Parameter | Confirmed Information |
|---|---|
| Switch type | Nonreflective SPDT RF switch |
| Frequency range | 100 MHz to 13 GHz |
| Characteristic impedance | 50 Ω |
| Insertion loss | 0.8 dB typical at 8 GHz |
| Isolation | 45 dB typical at 8 GHz |
| Through-path power handling | 35 dBm class |
| Input P1dB | 39 dBm typical |
| Package | 16-lead 3 mm × 3 mm LFCSP |
Product Overview
ADRF5019BCPZN is a nonreflective 50 Ω SPDT RF switch covering 100 MHz to 13 GHz. It is intended for signal routing where the unused port should remain internally terminated rather than becoming a high-reflection open path.
At 8 GHz, the device combines approximately 0.8 dB typical insertion loss with 45 dB typical isolation. That balance makes frequency, loss budget, isolation and power handling the main selection axes rather than the package alone.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Topology | SPDT, nonreflective |
| Frequency | 100 MHz to 13 GHz |
| Impedance | 50 Ω |
| Insertion loss at 8 GHz | 0.8 dB typical |
| Isolation at 8 GHz | 45 dB typical |
| Input P1dB | 39 dBm typical |
| Input IP3 | 60 dBm typical |
| Through-path power handling | 35 dBm class |
| Package | 16-lead 3 mm × 3 mm LFCSP |
RF Path Considerations
Nonreflective operation terminates the isolated port, which can reduce impedance discontinuities when switching between RF paths. System insertion loss should still include PCB launches, routing and any external matching structures in addition to the switch itself.
Hot-switching capability is lower than the through-path power rating. A design that changes state while RF power is present should check the manufacturer’s hot-switching limit rather than relying on the static through-path figure.
Product Status
Analog Devices lists ADRF5019 as Recommended for New Designs.
