AP2112K-3.3TRG1 SOT-25-5 – Diodes Incorporated

Fixed 3.3 V CMOS LDO regulator with up to 600 mA output current and integrated output discharge.

Add to RFQ View Datasheet
SKU: AP2112K-3.3TRG1 Category: Tag: Brand:
Questions about AP2112K-3.3TRG1 SOT-25-5 – Diodes Incorporated ?

Key Selection Information

Selection Parameter Confirmed Information
Regulator Type Fixed CMOS LDO
Output Voltage 3.3 V
Output Current Up to 600 mA
Enable Active high
Output Discharge Integrated
Package SOT-25, tape and reel

Product Overview

AP2112K-3.3TRG1 is a fixed 3.3 V member of Diodes Incorporated’s AP2112 CMOS LDO family in a compact five-pin package. It combines up to 600 mA output capability with active-high enable and output discharge, making it suitable for compact 3.3 V rails that need controlled shutdown behavior.

As with any small linear regulator, the headline current rating must be evaluated together with VIN-to-VOUT dissipation and PCB thermal conditions.

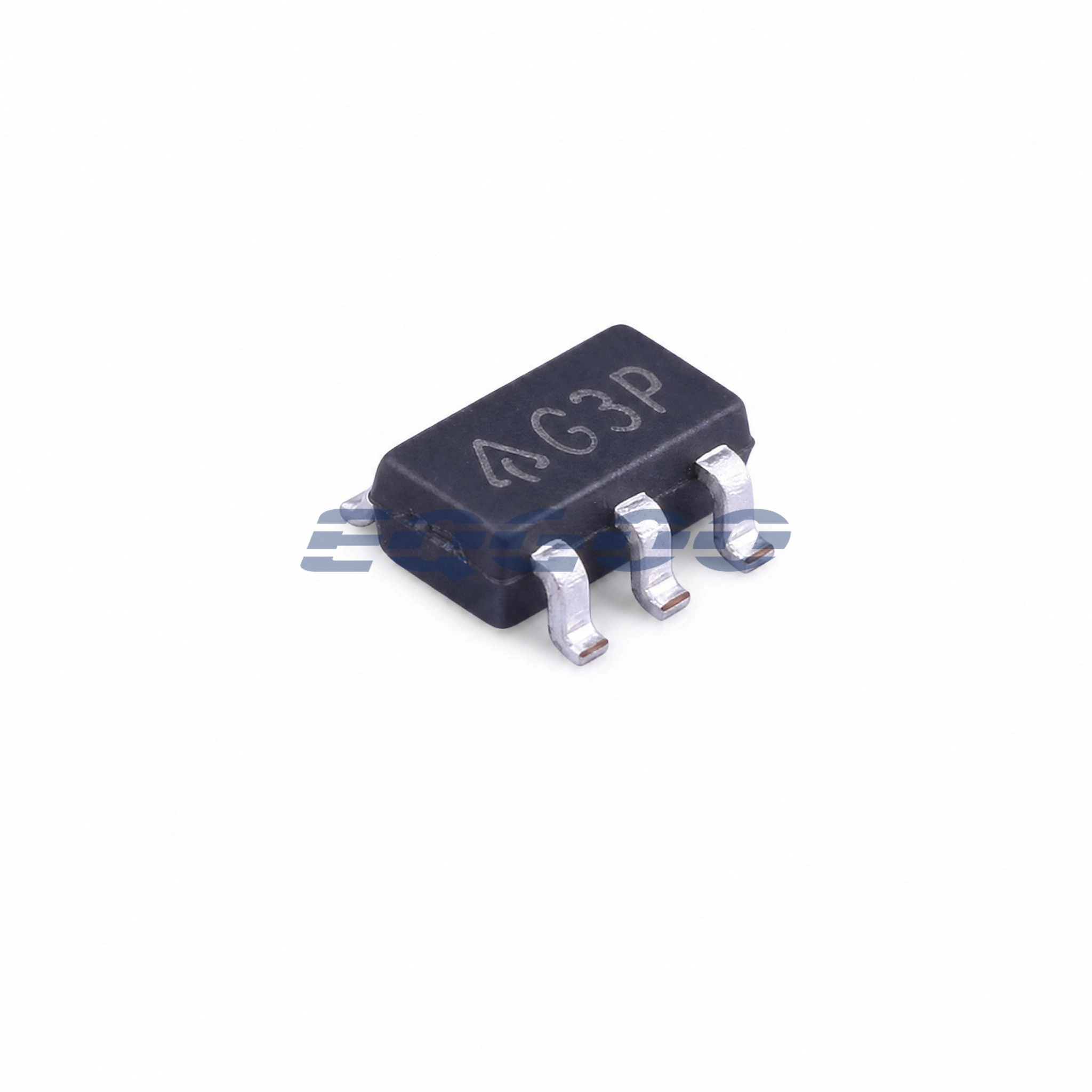

AP2112K-3.3TRG1 product view

Technical Specifications

Group Parameter Value / Condition
Output Nominal voltage 3.3 V
Output Maximum current 600 mA
Control Enable Active high
Control Output discharge Integrated
PSRR At 1 kHz 65 dB family specification
Package Type SOT-25
Packing Format Tape and reel

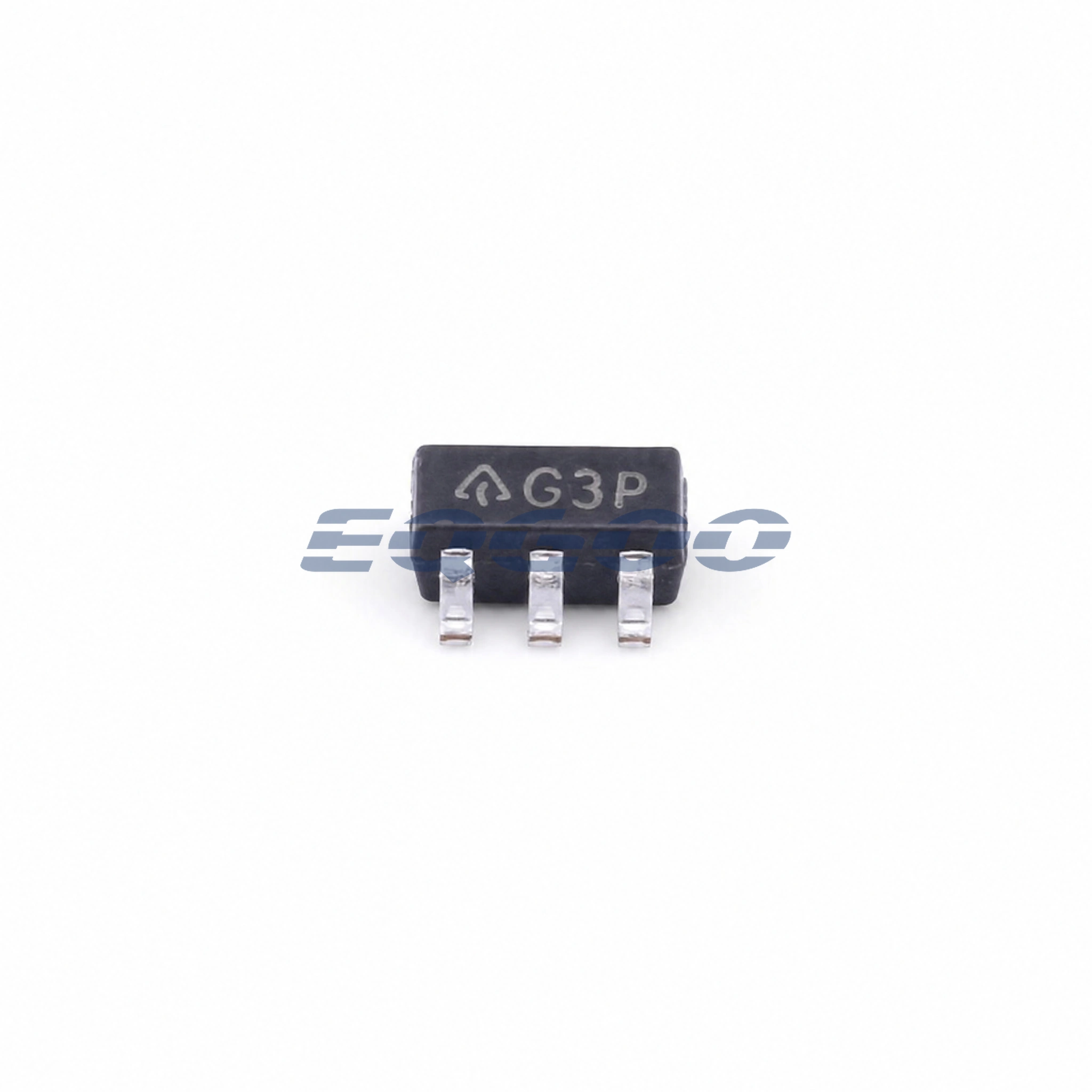

AP2112K-3.3TRG1 additional product view

Functional Highlights

Enable plus output discharge simplifies rail control

The regulator can be disabled by logic control and its output node can be discharged when off, which is useful when a downstream domain must power down predictably.

Compact package still requires thermal checking

Sustainable current depends on the input-output voltage drop, board copper and ambient temperature rather than the 600 mA rating alone.

Applications / Application Fit

  • 3.3 V rails for embedded controllers and digital logic
  • Power domains that require controlled enable and discharge
  • Compact portable or consumer electronics

Design Considerations

Confirm the input range and dropout margin at the required 3.3 V output and load current.

Place the input and output capacitors close to the device and follow Diodes stability guidance.

Account for output-discharge behavior when the regulated rail is connected to another powered domain.
