Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | Single-channel isolated precision gate driver |
| Peak output current | 2.3 A |
| Isolation rating | 5 kV rms class |
| Input supply | 2.5 V to 6.5 V |
| Output-side supply | 4.5 V to 35 V |
| A-grade output UVLO | 4.4 V typical rising threshold |
| Propagation delay | 79 ns maximum falling-edge class |
| Package | 6-lead increased-creepage SOIC |
Product Overview

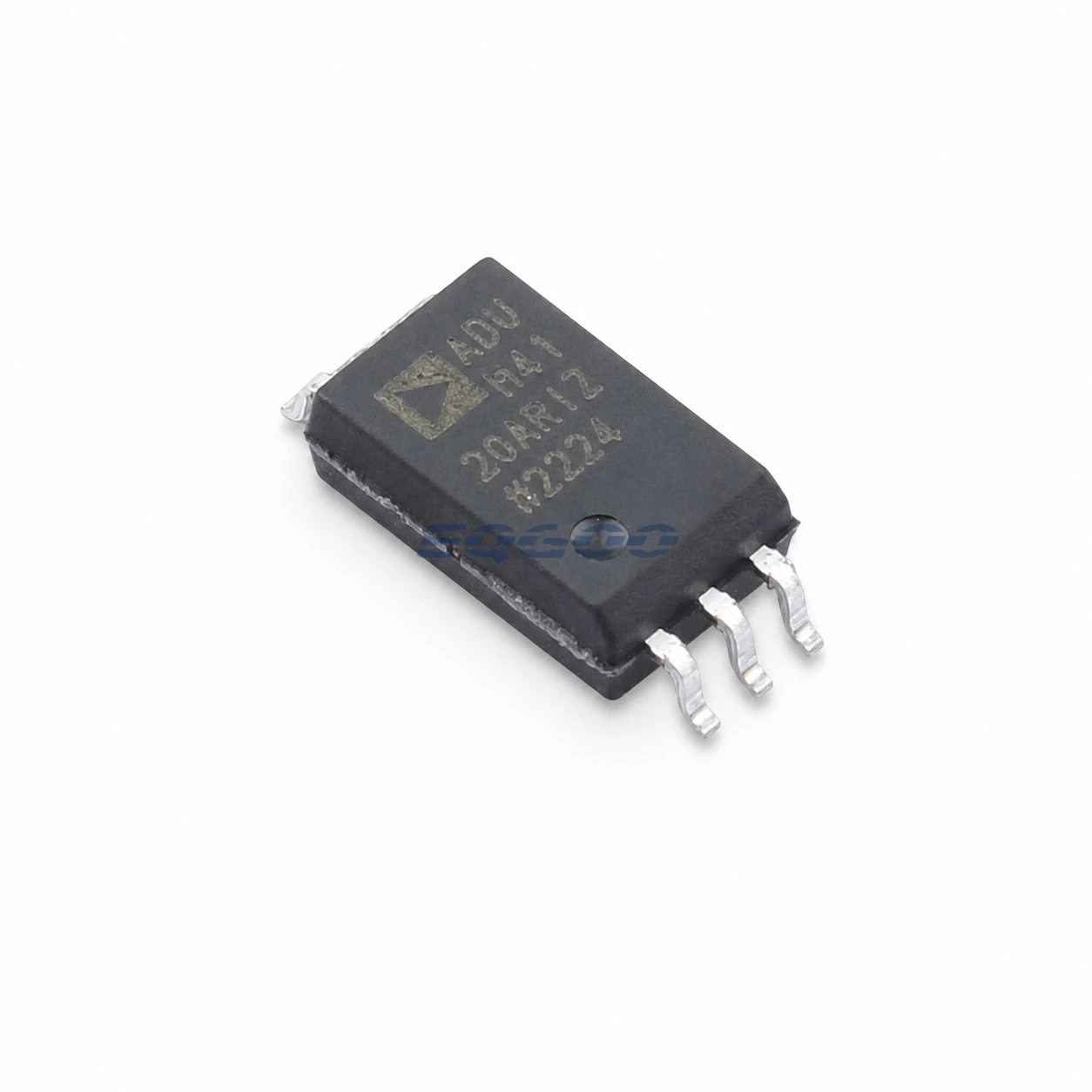

ADUM4120ARIZ is an A-grade single-channel isolated gate driver from Analog Devices. It provides a 2 A-class isolated drive stage with 2.3 A peak output capability and supports output-side gate-drive supplies from 4.5 V to 35 V.
The A grade uses the lowest output-side UVLO option, with a typical rising threshold around 4.4 V. That makes the exact order code relevant where low gate-drive rails are intentional; B- and C-grade family members use higher UVLO thresholds and should not be substituted without checking the required gate voltage.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Channels | 1 |
| Peak output current | 2.3 A |
| Input supply | 2.5 V to 6.5 V |
| Output supply | 4.5 V to 35 V |
| Input-side UVLO | 2.3 V class |
| A-grade output UVLO | 4.4 V typical rising |
| Falling-edge propagation delay | 79 ns maximum |
| Common-mode transient immunity | 150 kV/µs class |
| Package | 6-lead increased-creepage SOIC |
Gate-Drive Selection Considerations
The low A-grade UVLO can support lower gate-voltage power devices, but the external MOSFET, IGBT, SiC or GaN device must still be fully enhanced at the selected output supply. Gate charge and series resistance determine actual transition current and switching loss.
The 5 kV isolation package offers an 8 mm creepage class, but PCB spacing and isolated-bias design must preserve the intended system barrier outside the IC.
Product Status
Analog Devices lists ADuM4120 as Production.
Manufacturer Resource
Analog Devices ADuM4120 product page
Quality & Verification Support
A-grade identity, increased-creepage package, marking, lot/date information and isolation traceability can be reviewed.
Request a Quote
Request ADUM4120ARIZ exactly and include quantity, date-code and traceability requirements.
