Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Rating | AEC-Q100 automotive; −40°C to +125°C ambient orderable range |
| Drive Strength | ±10 A peak source/sink; split outputs |
| Isolation | 5.7 kVRMS reinforced; 1.5 kVRMS working voltage family spec |
| CMTI | 150 V/ns minimum |
| Protection | 200 ns fast DESAT, 4 A active Miller clamp, 400 mA soft turn-off |
| Sensing / Status | Isolated analog-to-PWM sensor, FLT, RDY and RST/EN |
| Output Drive | Up to 33 V VDD−VEE; 12 V UVLO |
| Exact Package / Packing | SOIC (DW), 16 pins; 2000-piece large tape and reel |
Product Overview

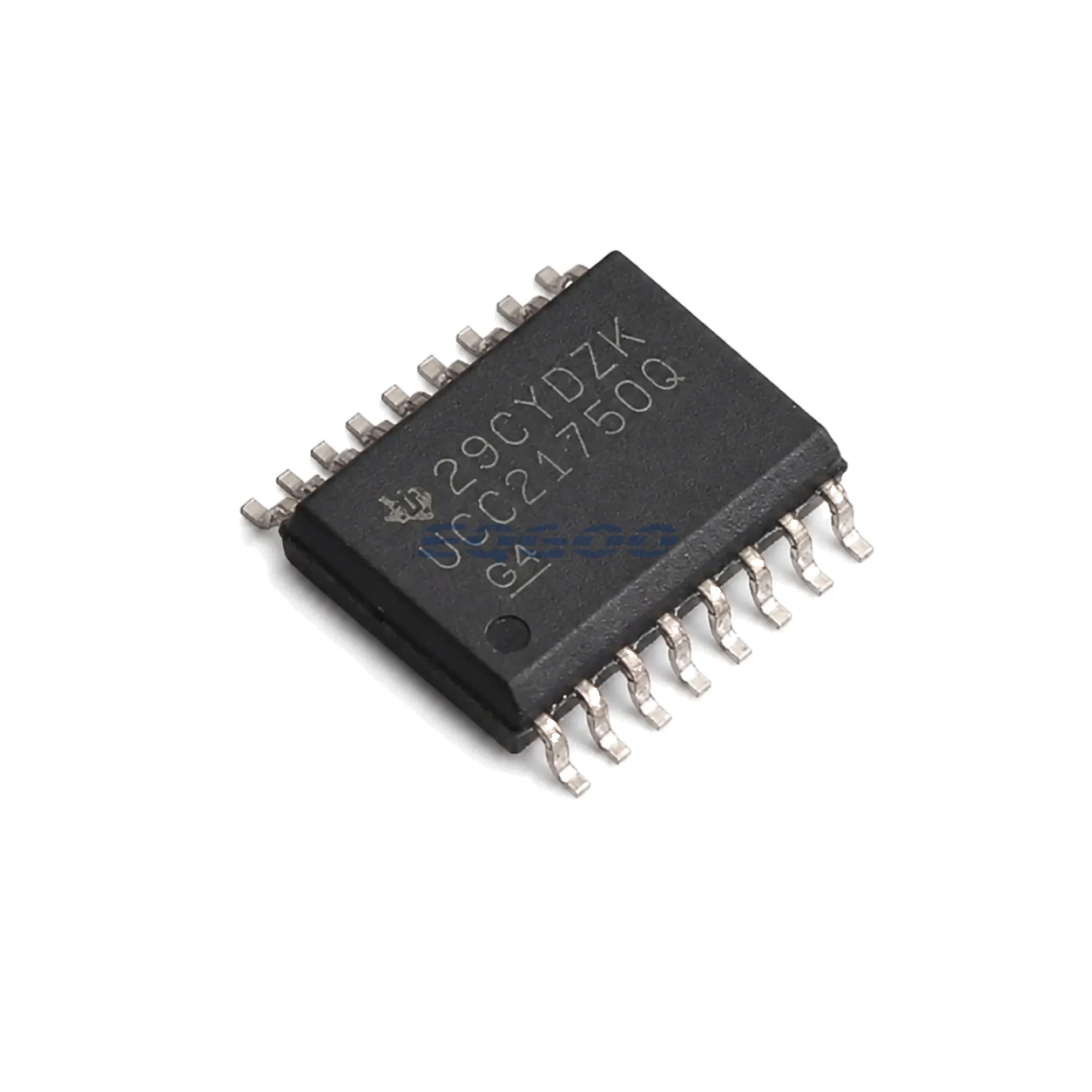

UCC21750QDWRQ1 is the automotive orderable version of TI’s UCC21750-Q1 smart single-channel isolated gate driver for high-voltage SiC MOSFET and IGBT power stages. It combines ±10 A gate drive with DESAT fault detection, soft turn-off and an internal active Miller clamp.
The isolated analog-to-PWM channel is a major differentiator from simpler gate drivers: it can carry temperature or high-voltage sensing information across the barrier without adding a separate analog isolator. That can reduce isolation-channel count in traction, charger or inverter modules.
TI’s current part-detail information lists this exact QDWRQ1 order code as active automotive grade in SOIC-16 DW, 2000-piece large tape-and-reel packaging. The -Q1 identity should be retained because it carries the automotive qualification context.
For related devices, see HKEQGOO’s Isolators – Gate Drivers category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | UCC21750QDWRQ1 |
| Rating | AEC-Q100 automotive; −40°C to +125°C ambient orderable range |
| Drive Strength | ±10 A peak source/sink; split outputs |
| Isolation | 5.7 kVRMS reinforced; 1.5 kVRMS working voltage family spec |
| CMTI | 150 V/ns minimum |
| Protection | 200 ns fast DESAT, 4 A active Miller clamp, 400 mA soft turn-off |
| Sensing / Status | Isolated analog-to-PWM sensor, FLT, RDY and RST/EN |
| Output Drive | Up to 33 V VDD−VEE; 12 V UVLO |
| Exact Package / Packing | SOIC (DW), 16 pins; 2000-piece large tape and reel |
| Manufacturer Status | Active / Production |
| Part Marking | UCC21750-Q1 family marking per TI package data |
Functional Highlights
DESAT plus soft turn-off targets destructive short-circuit events
Fast fault detection is only effective when DESAT blanking, diode network and soft-turn-off behavior are designed around the actual SiC/IGBT module. Too little blanking can nuisance-trip; too much increases short-circuit energy.
Analog PWM sensing can simplify isolated thermal/voltage monitoring
The AIN/APWM path can encode NTC/PTC/diode temperature or high-voltage information across the same isolation barrier, but its bandwidth/accuracy should be matched to protection/telemetry needs rather than treated as a precision ADC replacement.
Design Considerations
- Design DESAT threshold and blanking components from the selected power switch’s saturation/short-circuit behavior.
- Keep gate loop, Miller-clamp path and VDD/VEE bypassing extremely compact to exploit ±10 A drive safely.
- Use creepage/clearance and isolation working-voltage rules for the complete PCB, not only the IC barrier rating.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists UCC21750QDWRQ1 as Active automotive orderable part; SOIC (DW), 16 pins; 2000-piece large tape and reel; Level-3-260C-168 HR; −40°C to +125°C ambient; UCC21750-Q1 family.
