Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Resolution | 24 bits, no missing codes across stated rates/PGA settings |
| Data Rate | Up to 30 kSPS |
| Noise | Up to 23 bits noise-free stated; 27 nV input-referred PGA noise stated |
| Input | Single precision differential converter path in ADS1255 variant |
| PGA / Calibration | Low-noise PGA plus self and system calibration |
| Supplies | 5 V analog; 1.8 V to 3.6 V digital |
| Interface | 5-V-tolerant SPI-compatible digital input interface |

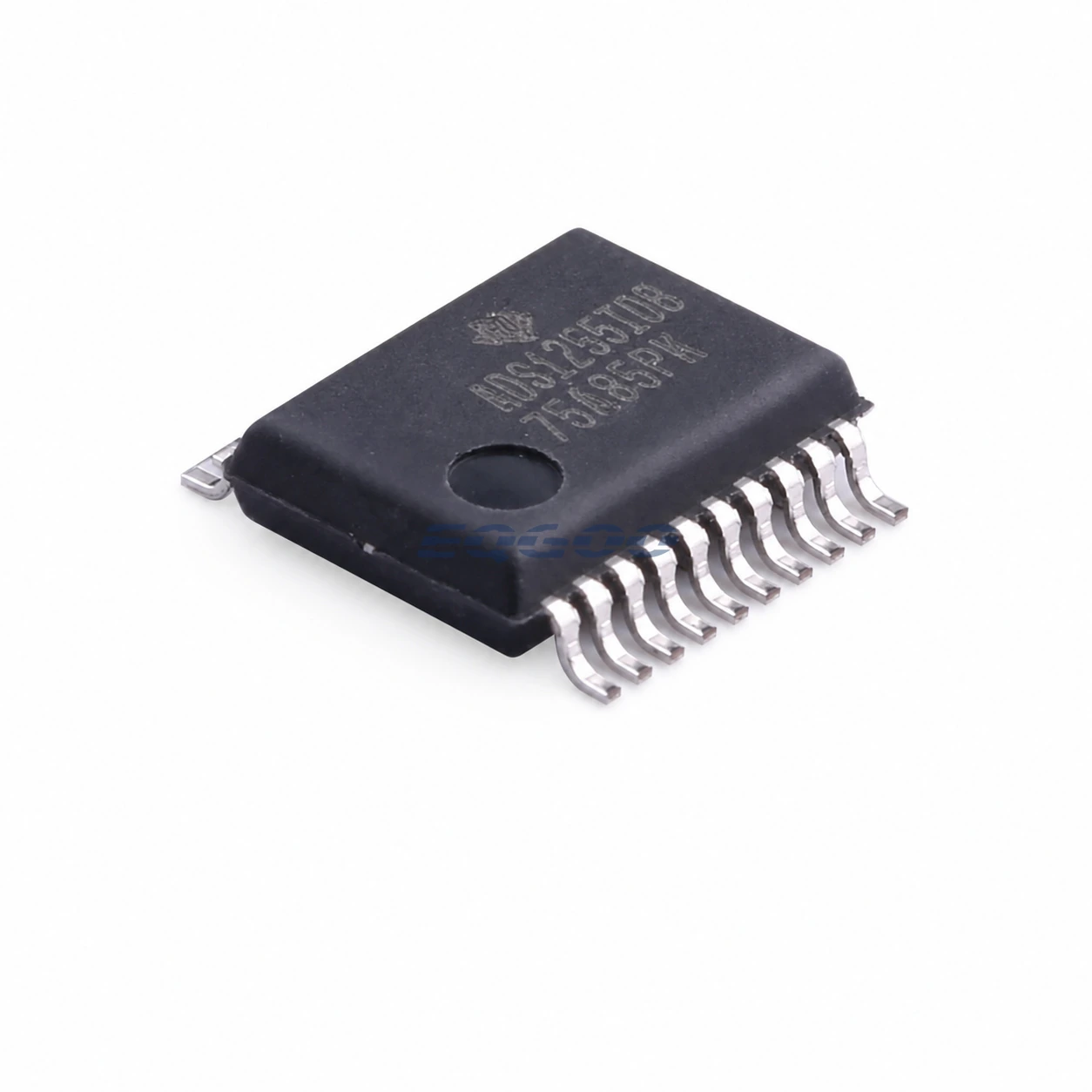

| Exact Package / Packing | SSOP (DB), 20 pins; 1000-piece large reel; marking ADS1255IDB |
Product Overview
ADS1255IDBR targets instrumentation where both very low noise and tens-of-kilosamples-per-second bandwidth are required. Its 30-kSPS ceiling is far above slow sensor ADCs while retaining a 24-bit delta-sigma signal path and programmable gain.
The ADS1255 is the single-input-path member; the related ADS1256 adds a larger analog input multiplexer. That distinction matters when one dedicated precision channel is more valuable than internal channel scanning.
A 5 V analog supply combined with a lower-voltage digital rail separates analog dynamic range from processor I/O voltage. Self/system calibration helps compensate converter and external signal-chain gain/offset under controlled calibration conditions.
For related devices, see HKEQGOO’s ADCs category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | ADS1255IDBR |
| Resolution | 24 bits, no missing codes across stated rates/PGA settings |
| Data Rate | Up to 30 kSPS |
| Noise | Up to 23 bits noise-free stated; 27 nV input-referred PGA noise stated |
| Input | Single precision differential converter path in ADS1255 variant |
| PGA / Calibration | Low-noise PGA plus self and system calibration |
| Supplies | 5 V analog; 1.8 V to 3.6 V digital |
| Interface | 5-V-tolerant SPI-compatible digital input interface |
| Exact Package / Packing | SSOP (DB), 20 pins; 1000-piece large reel; marking ADS1255IDB |
| Manufacturer Status | Active / Production |
| Part Marking | ADS1255IDB |
Functional Highlights
Low noise at kSPS rates fits laboratory and industrial instrumentation
This device occupies a different performance space from 10–80-SPS bridge ADCs: faster dynamic signals can be captured without dropping to SAR-class code depth.
System calibration can include external path errors
Calibration commands can compensate more than internal offset/gain when the board provides suitable known input/reference conditions.
Design Considerations
- Use a low-jitter clock and low-noise reference/supply to preserve high-rate noise performance.
- Separate analog and digital return currents around the 5 V analog / low-voltage digital domains.
- Do not assume ADS1256 mux features exist on the ADS1255 single-channel variant.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists ADS1255IDBR as Active / Production; SSOP (DB), 20 pins; 1000-piece large tape and reel; −40°C to +85°C; marking ADS1255IDB.
