Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Signal isolation | 2500 V rms for 1 minute (UL 1577) |
| Data rate | 20 Mbps |
| Duplex | Half duplex |
| Logic-side supply | 3 V or 5 V (VDD1) |
| Bus-side supply | External isolated 5 V (VDD2) |
| Bus nodes | 50 |
| CMTI | >25 kV/µs |
| Protocol note | PROFIBUS compliant |
| Package | 16-lead SOIC_W, RW-16 |
| Operating temperature | −40°C to +85°C |
Product Overview

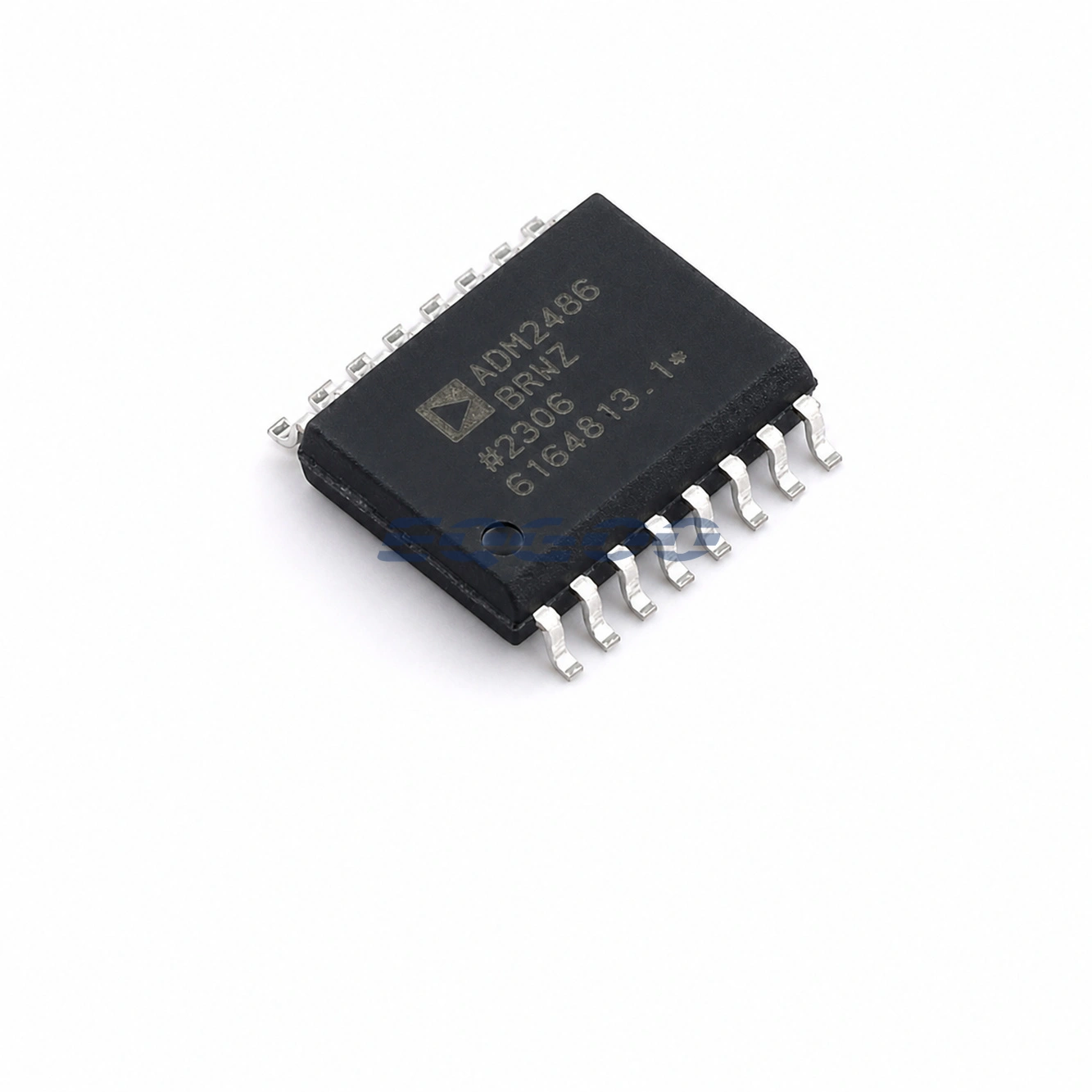

ADM2486BRWZ-REEL is a high-speed galvanically isolated half-duplex RS-485 transceiver specified to 20 Mbps and for PROFIBUS operation. It integrates the digital isolation barrier with the differential driver and receiver.
Unlike isoPower-equipped transceivers, ADM2486 does not generate isolated bus-side power internally. VDD1 can use a 3 V or 5 V logic supply, while VDD2 requires a separately isolated 5 V source. This is a major architecture decision when comparing isolated RS-485 parts.
Key Features
- 20 Mbps half-duplex isolated RS-485 operation.
- 2.5 kV rms signal isolation and >25 kV/µs CMTI.
- PROFIBUS compliance and up to 50 bus nodes.
- Separate logic-side and isolated bus-side supplies.
Functional Highlights
Signal isolation and power isolation are separate responsibilities with ADM2486; an external isolated 5 V rail is required on the bus side.
At 20 Mbps, termination, stub length, connector discontinuities, and driver-enable timing have a larger effect on signal integrity than in slower links.
Application Fit
- Isolated RS-485/RS-422 interfaces.
- PROFIBUS networks.
- Industrial field networks.
- High-speed multipoint data transmission systems.
Design Considerations
- Provide a properly isolated 5 V VDD2 supply; do not assume integrated isoPower.
- Use controlled bus routing and correct termination for 20 Mbps signaling.
- Coordinate driver-enable timing to avoid contention.
- Maintain the RW-16 isolation barrier in the PCB layout.
Product Status
Manufacturer status: PRODUCTION
Analog Devices currently lists ADM2486BRWZ-REEL as PRODUCTION.
