Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| ADC | 12-bit SAR |
| Channels | 8 single-ended inputs |
| Throughput | 50 kSPS to 200 kSPS specified |
| Interface | SPI/QSPI/MICROWIRE/DSP-compatible serial |
| Analog Supply | 2.7 V to 5.25 V; also used as ADC reference |
| Digital Supply | 2.7 V to VA, independent rail |
| Power | 1.2 mW typical at 3 V stated feature |
| Exact Package / Packing | TSSOP (PW), 16 pins; 2500-piece large reel |
Product Overview
ADC128S022CIMTX/NOPB is an eight-channel 12-bit SAR ADC for moderate-speed multiplexed data acquisition. Its 50–200 kSPS range is substantially slower than the pin/function-related ADC128S102, but it consumes less power and may be sufficient for sensors, housekeeping and control loops.
VA doubles as the analog reference, so supply/reference noise directly changes conversion full scale. The separate VD pin allows digital I/O voltage to follow the processor while the analog rail is optimized independently.
Because the input mux feeds one track/hold, source impedance and channel-to-channel step size determine acquisition settling. High-impedance sensors may need buffering or extra settling strategy.
For related devices, see HKEQGOO’s ADCs category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | ADC128S022CIMTX/NOPB |
| ADC | 12-bit SAR |
| Channels | 8 single-ended inputs |
| Throughput | 50 kSPS to 200 kSPS specified |
| Interface | SPI/QSPI/MICROWIRE/DSP-compatible serial |
| Analog Supply | 2.7 V to 5.25 V; also used as ADC reference |
| Digital Supply | 2.7 V to VA, independent rail |
| Power | 1.2 mW typical at 3 V stated feature |
| Exact Package / Packing | TSSOP (PW), 16 pins; 2500-piece large reel |
| Manufacturer Status | Active / Production |

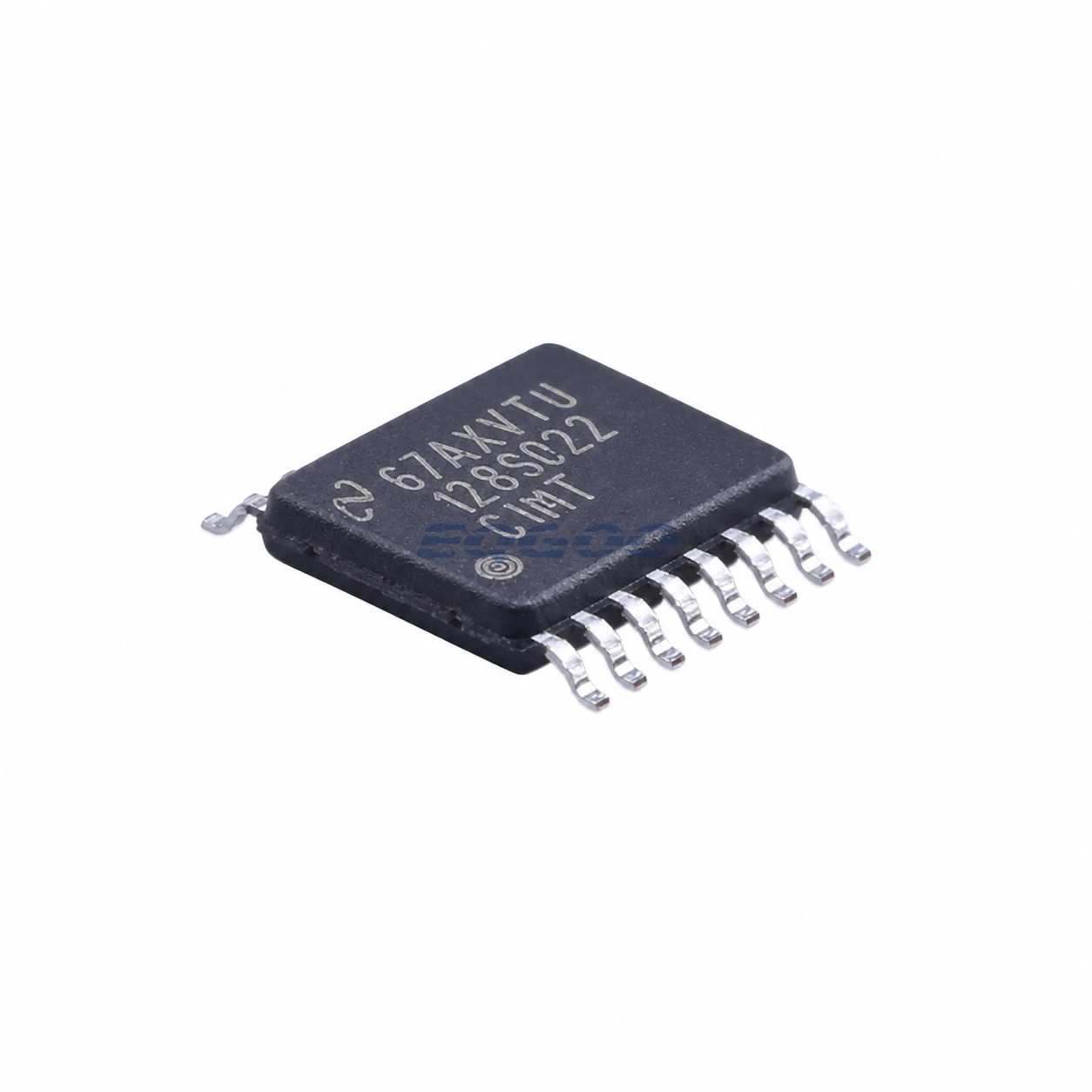

| Part Marking | 128S022 CIMT |
Functional Highlights
200 kSPS is a deliberate power/speed point
Selecting the 1 MSPS sibling unnecessarily can raise power/EMI without improving a slow sensor application.
VA is both supply and reference
A noisy 5 V rail becomes gain/reference noise. Reference-quality decoupling/regulation is therefore part of ADC accuracy.
Design Considerations
- Check source impedance against acquisition time after channel switching.
- Treat VA as a reference rail and decouple/filter accordingly.
- Set SPI clock/throughput inside the 50–200 kSPS specified operating range.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists ADC128S022CIMTX/NOPB as Active / Production; TSSOP (PW), 16 pins; 2500-piece large tape and reel; −40°C to +105°C.
