Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | Demodulating logarithmic detector/controller |
| Frequency range | 0.1 GHz to 2.5 GHz |
| Dynamic range | 70 dB to ±3 dB |
| High-accuracy range | ±1 dB over 65 dB at 1.9 GHz |
| Full-scale response | About 40 ns typical |
| Supply voltage | 2.7 V to 5.5 V |
| Typical current | 13.7 mA at 3 V |
| Package | 8-lead MSOP |
Product Overview

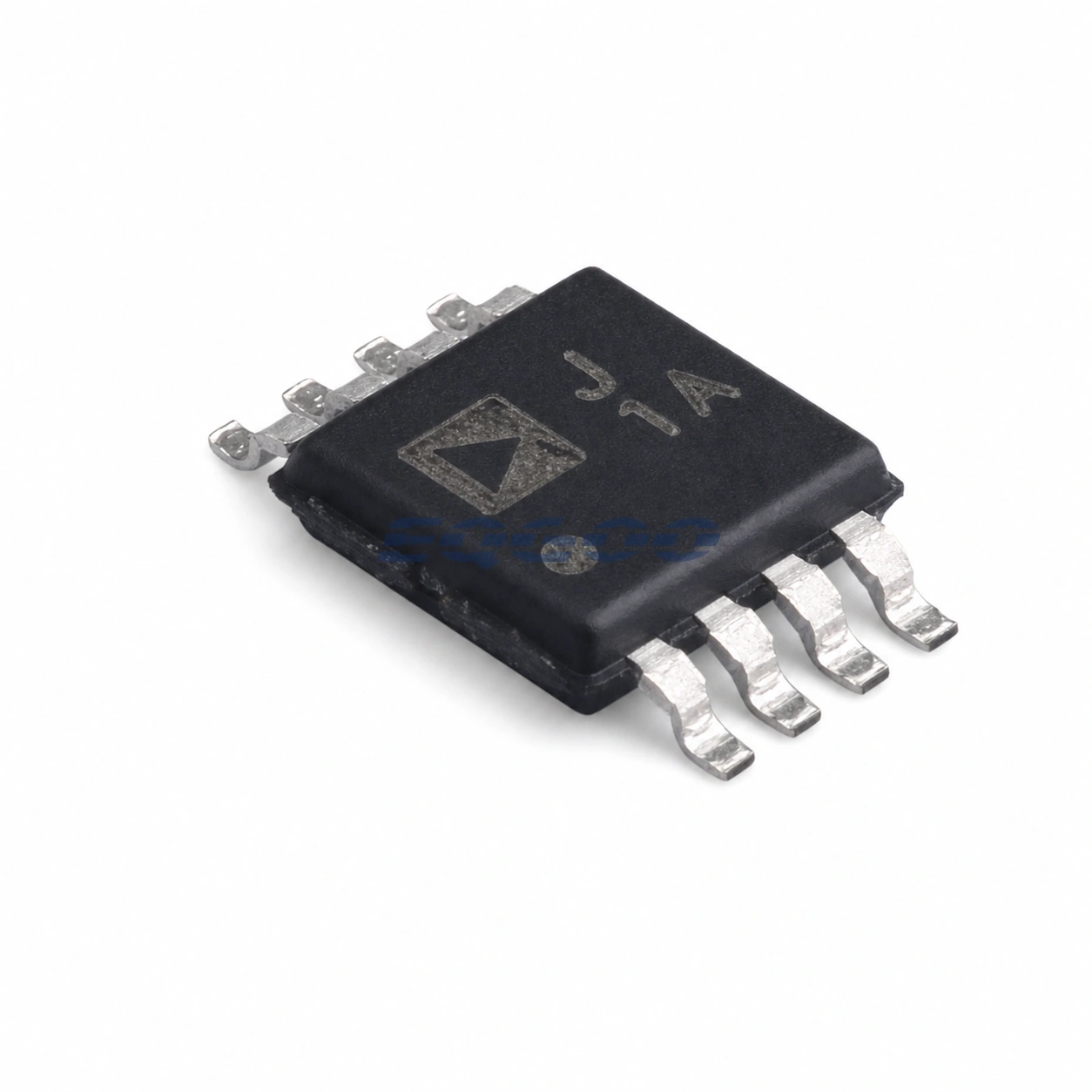

The AD8313ARMZ-REEL7 is the tape-and-reel 8-lead MSOP version of Analog Devices’ AD8313 logarithmic RF detector/controller. It converts RF input level into a decibel-scaled output voltage from 100 MHz to 2.5 GHz and can also be used inside a feedback loop to regulate an RF amplifier.
A major selection advantage is the wide logarithmic range: Analog Devices specifies 70 dB dynamic range to ±3 dB and ±1 dB accuracy over 65 dB at 1.9 GHz. This makes the part useful for received-signal-strength measurement or transmitter power control where logarithmic response over several decades matters more than true-rms waveform independence.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Detector type | Demodulating logarithmic amplifier |
| Frequency range | 0.1 GHz to 2.5 GHz |
| Dynamic range | 70 dB to ±3 dB |
| Accuracy range at 1.9 GHz | ±1 dB over 65 dB |
| Typical full-scale response | 40 ns |
| Supply voltage | 2.7 V to 5.5 V |
| Typical current at 3 V | 13.7 mA |
| Power-down current | About 20 µA |
| Operating temperature | -40°C to +85°C |
| Package | 8-lead MSOP |
| Product status | Production |
Design Considerations
The logarithmic transfer function is frequency dependent, so intercept and slope calibration should be based on the actual operating band when absolute power accuracy matters. A system that spans multiple bands may need frequency-specific calibration constants.
The AD8313 measures logarithmic envelope power rather than true rms power. Complex modulation with changing crest factor can therefore produce a different result from a TruPwr detector such as AD8361 or AD8362, even when the average RF power is the same.
