Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | Logarithmic RF detector/controller |
| Frequency range | 1 MHz to 10 GHz useful operation |
| Accurate log conformance | To 8 GHz |
| Dynamic range | 55 dB with <±3 dB error through 8 GHz |
| Log slope | Approximately -22 mV/dB |
| Pulse response | 6 ns / 10 ns fall/rise |
| Supply | 3.0 V to 5.5 V at 22 mA |
| Package | 8-lead LFCSP, 3 × 2 mm |
Product Overview

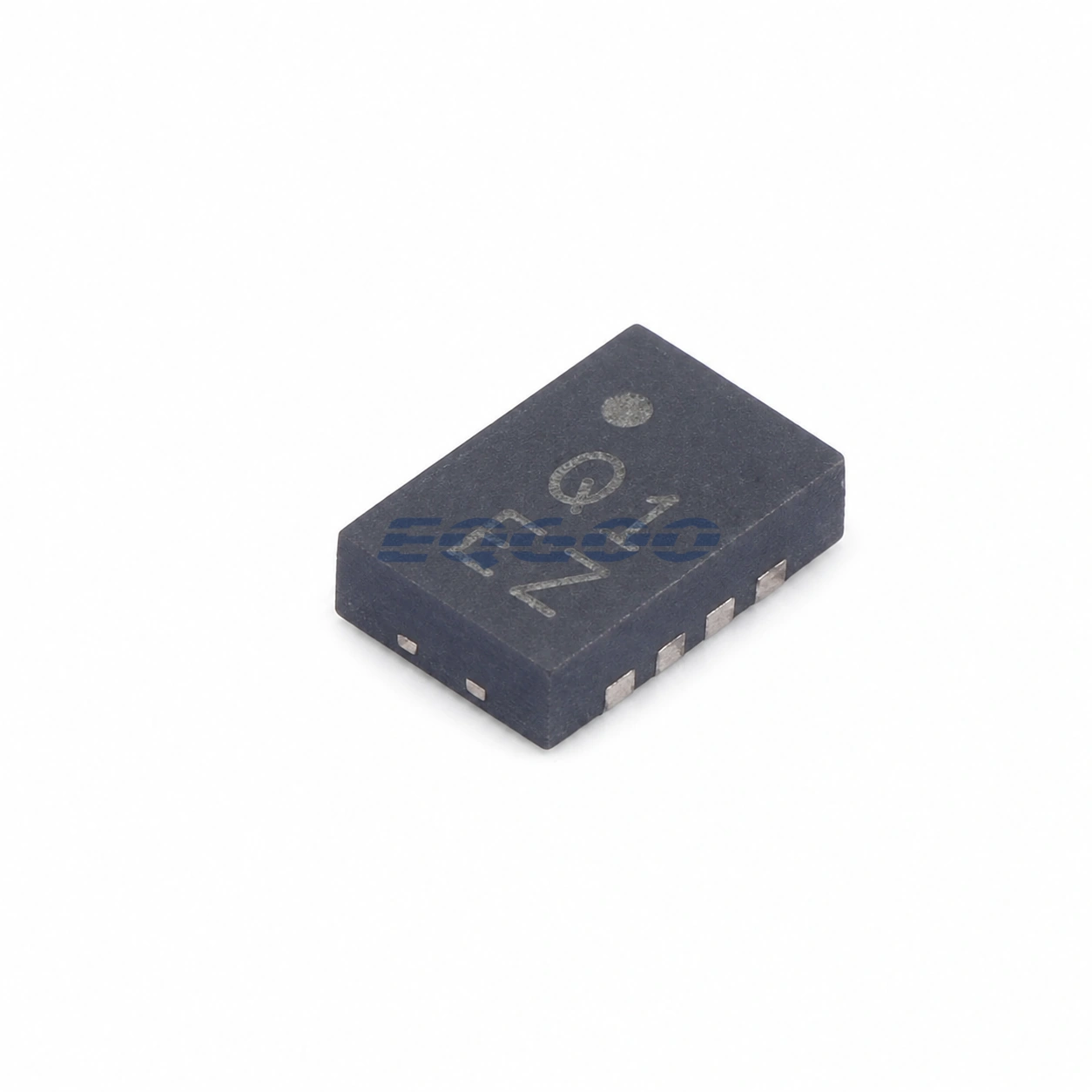

The AD8317ACPZ-R7 is a compact wideband logarithmic detector/controller that extends useful RF power detection from 1 MHz to 10 GHz. Its progressive-compression architecture provides a decibel-scaled output and supports both measurement and closed-loop RF power-control applications.
The part’s key selection point is bandwidth combined with fast response. Analog Devices specifies accurate logarithmic conformance through 8 GHz, useful operation to 10 GHz, and a 55 dB input range with less than ±3 dB error through 8 GHz. Pulse response of approximately 6 ns falling and 10 ns rising makes it suitable for fast RF-burst detection where slower power detectors would average away the event.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Detector type | Demodulating logarithmic amplifier |
| Frequency range | 1 MHz to 10 GHz useful operation |
| Accurate logarithmic range | To 8 GHz |
| Dynamic range | 55 dB with <±3 dB error through 8 GHz |
| High-accuracy behavior | ±1 dB over documented range and temperature |
| Log slope | Approximately -22 mV/dB |
| Pulse response | 6 ns / 10 ns fall/rise |
| Supply voltage | 3.0 V to 5.5 V |
| Supply current | 22 mA |
| Disabled current | About 200 µA |
| Operating temperature | -40°C to +85°C |
| Package | 8-lead LFCSP, 3 × 2 × 0.75 mm with exposed pad |
| Product status | Production |
Design Considerations
The useful 10 GHz headline should not be confused with uniform log accuracy to 10 GHz. For calibrated power measurement above 8 GHz, review the exact frequency-dependent error and intercept curves rather than applying lower-frequency calibration constants unchanged.
Fast response also increases output-noise bandwidth. Choose any external output filtering from the required burst response and measurement noise floor together; excessive filtering removes the speed advantage, while too little filtering can degrade ADC stability.
