Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | TruPwr true-rms RF power detector/controller |
| Frequency range | 50 Hz to 3.8 GHz |
| Input dynamic range | >65 dB, -52 dBm to +8 dBm in 50 Ω |
| Output scale | 50 mV/dB |
| Conformance error | Approximately ±0.5 dB feature specification |
| Supply voltage | 4.5 V to 5.5 V |
| Typical current | 24 mA |
| Package | 16-lead TSSOP |
Product Overview

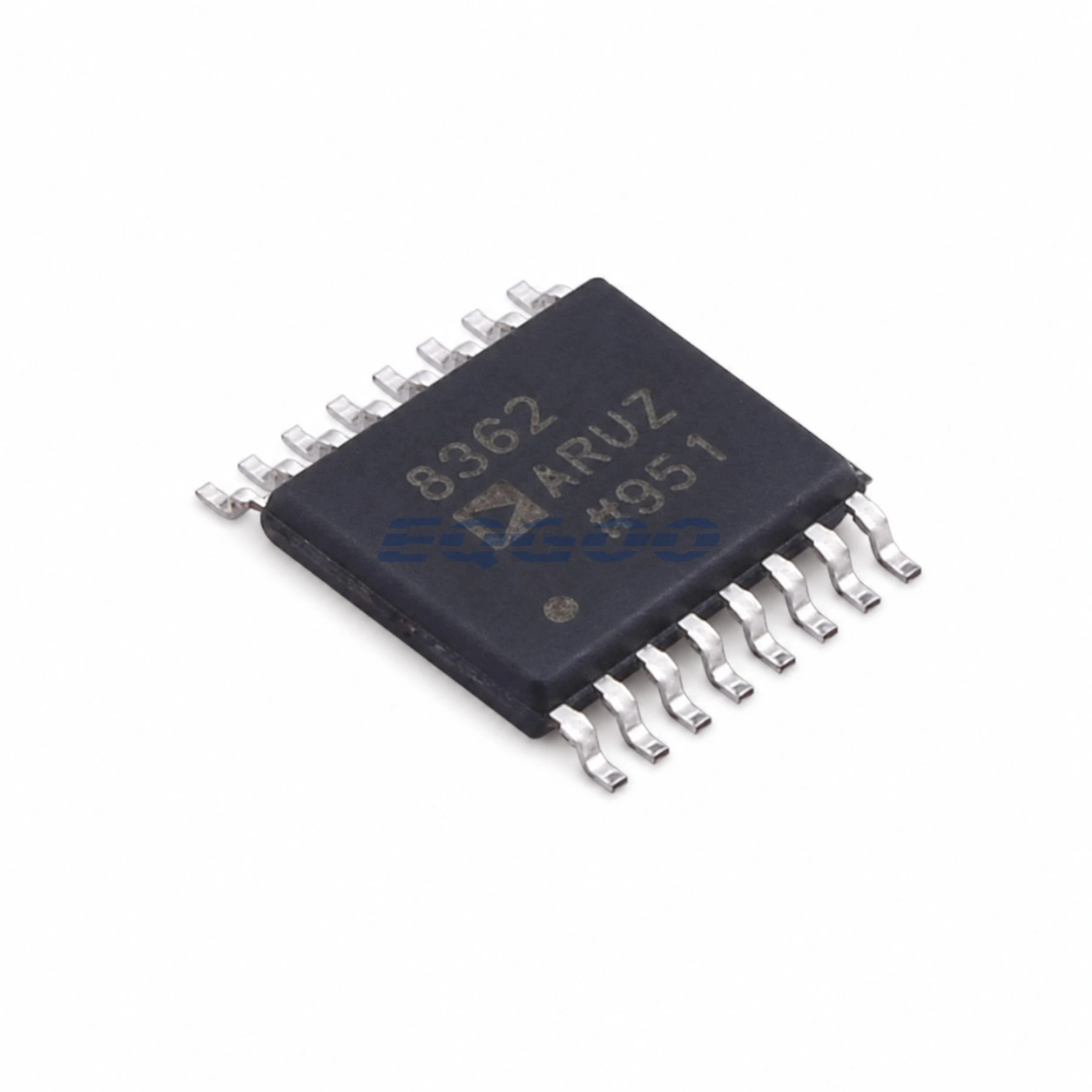

The AD8362ARUZ-REEL7 is the tape-and-reel TSSOP version of Analog Devices’ wide-dynamic-range TruPwr power detector. It measures true rms power from 50 Hz to 3.8 GHz and converts the result to a linear-in-dB output, combining waveform-independent power measurement with a logarithmic-scale interface.
Analog Devices specifies more than 65 dB input dynamic range, from -52 dBm to +8 dBm in a 50 Ω system, with a 50 mV/dB output slope. This makes the AD8362 substantially different from a linear-voltage rms detector: it preserves true-rms response while directly spanning several decades of input power on a dB-scaled output.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Detector type | TruPwr true-rms |
| Frequency range | 50 Hz to 3.8 GHz |
| Input dynamic range | >65 dB |
| 50 Ω input range | -52 dBm to +8 dBm |
| Output scaling | 50 mV/dB |
| Conformance error | Approximately ±0.5 dB feature specification |
| Waveform dependence | Designed to be modulation/waveform independent |
| Supply voltage | 4.5 V to 5.5 V |
| Typical supply current | 24 mA |
| Power-down consumption | 1.3 mW |
| Operating temperature | -40°C to +85°C |
| Package | 16-lead TSSOP |
| Product status | Production |
Design Considerations
The >65 dB range is a system advantage only when the output ADC and calibration strategy preserve that range. ADC reference, output filtering and noise floor should be selected from the minimum power that must be resolved, not only the maximum input rating.
True-rms detection reduces error caused by waveform crest factor, but external coupling and matching can still introduce frequency-dependent loss. For wideband use, calibrate the complete RF path when absolute power accuracy is required.
