Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Manufacturer | Winbond |
| Exact MPN | W9751G6KB-25 |
| Memory Type | DDR2 SDRAM |
| Memory Density | 512 Mbit |
| Clock Frequency | 400 MHz |
| Operating Voltage | 1.7 V to 1.9 V |
| Package | WBGA-84(8×12.5) |

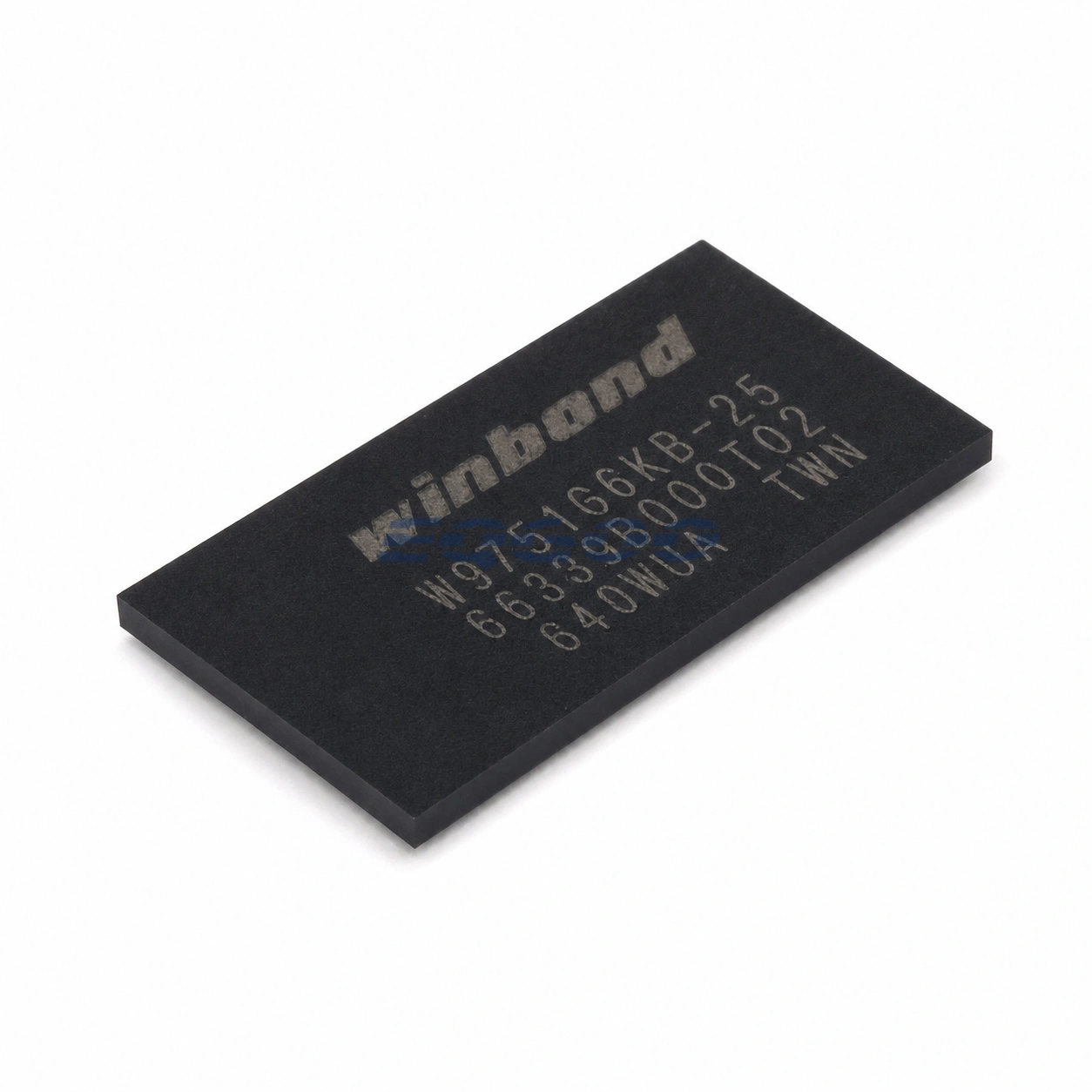

Product Overview
W9751G6KB-25 is a 512 Mbit, DDR2 SDRAM, up to 400 MHz, for 1.7 V to 1.9 V, supplied in WBGA-84(8×12.5).
The exact part should be matched to a controller that supports DDR2 SDRAM, the stated voltage range and the required package footprint.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Winbond |
| Exact MPN | W9751G6KB-25 |
| Functional Category | DRAM |
| Memory Type | DDR2 SDRAM |
| Package | WBGA-84(8×12.5) |
| Memory Architecture | DDR2 SDRAM |
| Clock Frequency | 400 MHz |
| Memory Density | 512 Mbit |
| Operating Voltage | 1.7 V to 1.9 V |
| Source Catalog ID | C50253 |
Selection Notes
The host memory controller must explicitly support DDR2 SDRAM; do not substitute across DDR generations solely because density or package appears similar.
Controller voltage, clock target and package footprint should be screened together, with organization and detailed timing confirmed from the exact device documentation before layout or substitution.
Design Considerations
- Configure the memory controller for DDR2 SDRAM, not merely for the same density.
- Validate controller timing and power-rail compatibility at the intended operating point before PCB release.
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. Physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
For W9751G6KB-25 quotation, provide the exact MPN, required quantity, destination, target Date Code if applicable, and any inspection or testing requirements.
When selecting DDR2 memory bus width, Winbond W9751G8KB-25 is a 512 Mbit, 64M x 8 device in a 60-ball WBGA package, whereas W9751G6KB-25 is 512 Mbit, 32M x 16 in 84-ball WBGA. Both belong to the 1.8 V DDR2 range, but their I/O width and ball count differ, so controller wiring and PCB footprint must be re-evaluated rather than treating them as pin-compatible.
