Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Manufacturer | Winbond |
| Exact MPN | W9864G6KH-6I |
| Memory Type | DRAM memory |
| Memory Density | 64 Mbit |
| Clock Frequency | 166 MHz |
| Operating Voltage | 3 V to 3.6 V |
| Package | TSOP-54-10.2mm |
Product Overview

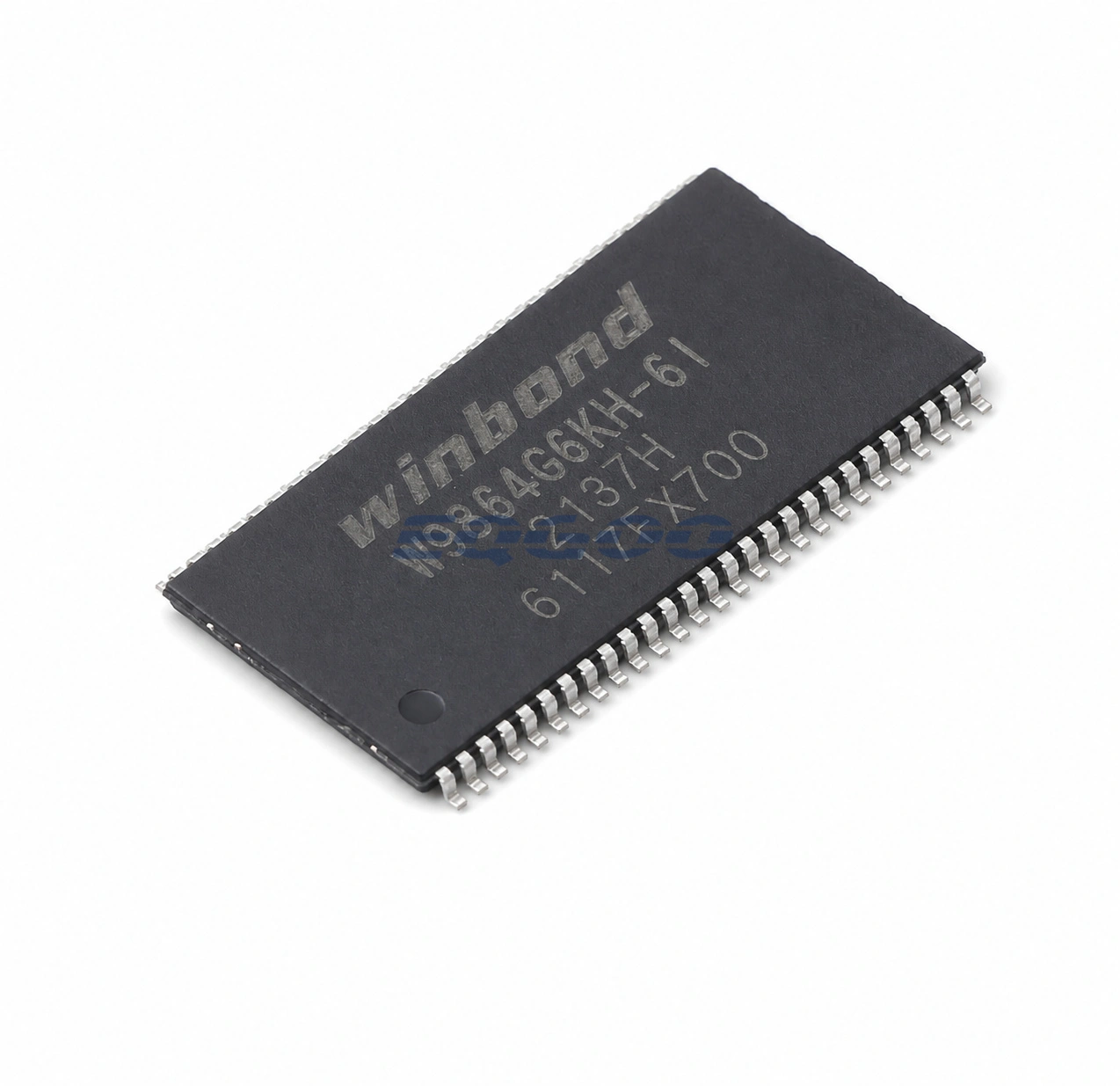

W9864G6KH-6I is a 64 Mbit, DRAM memory, up to 166 MHz, for 3 V to 3.6 V, supplied in TSOP-54-10.2mm.
The exact part should be matched to a controller that supports the listed DRAM generation, the stated voltage range and the required package footprint.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Winbond |
| Exact MPN | W9864G6KH-6I |
| Functional Category | DRAM |
| Memory Type | DRAM memory |
| Package | TSOP-54-10.2mm |
| Packing | 108 pcs/tray |
| Memory Density | 64 Mbit |
| Clock Frequency | 166 MHz |
| Operating Voltage | 3 V to 3.6 V |
| Functional Feature | Auto precharge; auto refresh; high-speed clock synchronization; automatic column-address generation |
| Source Catalog ID | C503937 |
Selection Notes
Controller voltage, clock target and package footprint should be screened together, with organization and detailed timing confirmed from the exact device documentation before layout or substitution.
Design Considerations
- Validate controller timing and power-rail compatibility at the intended operating point before PCB release.
Exact Variant and Procurement Notes
The source record lists 108 pcs/tray for this exact order code.
Preserve the complete manufacturer part number in BOMs, RFQs and purchase orders; adjacent Winbond family variants may differ in package, voltage, speed or ordering suffix.
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. Physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
For W9864G6KH-6I quotation, provide the exact MPN, required quantity, destination, target Date Code if applicable, and any inspection or testing requirements.
For commercial-temperature SDRAM sourcing, Winbond W9864G6KH-6 is listed for 0 to +70 C, compared with the -40 to +85 C industrial-grade W9864G6KH-6I. Both are 64 Mbit, 3.3 V, x16 SDRAM devices in the 54-pin TSOP family; the narrower grade must not be assumed suitable for an industrial ambient-temperature requirement.
