Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Manufacturer | Winbond |
| Exact MPN | W9751G8KB-25 |
| Memory Type | DDR2 SDRAM |
| Memory Density | 512 Mbit |
| Clock Frequency | 400 MHz |
| Operating Voltage | 1.7 V to 1.9 V |
| Package | WBGA-60 |
Product Overview

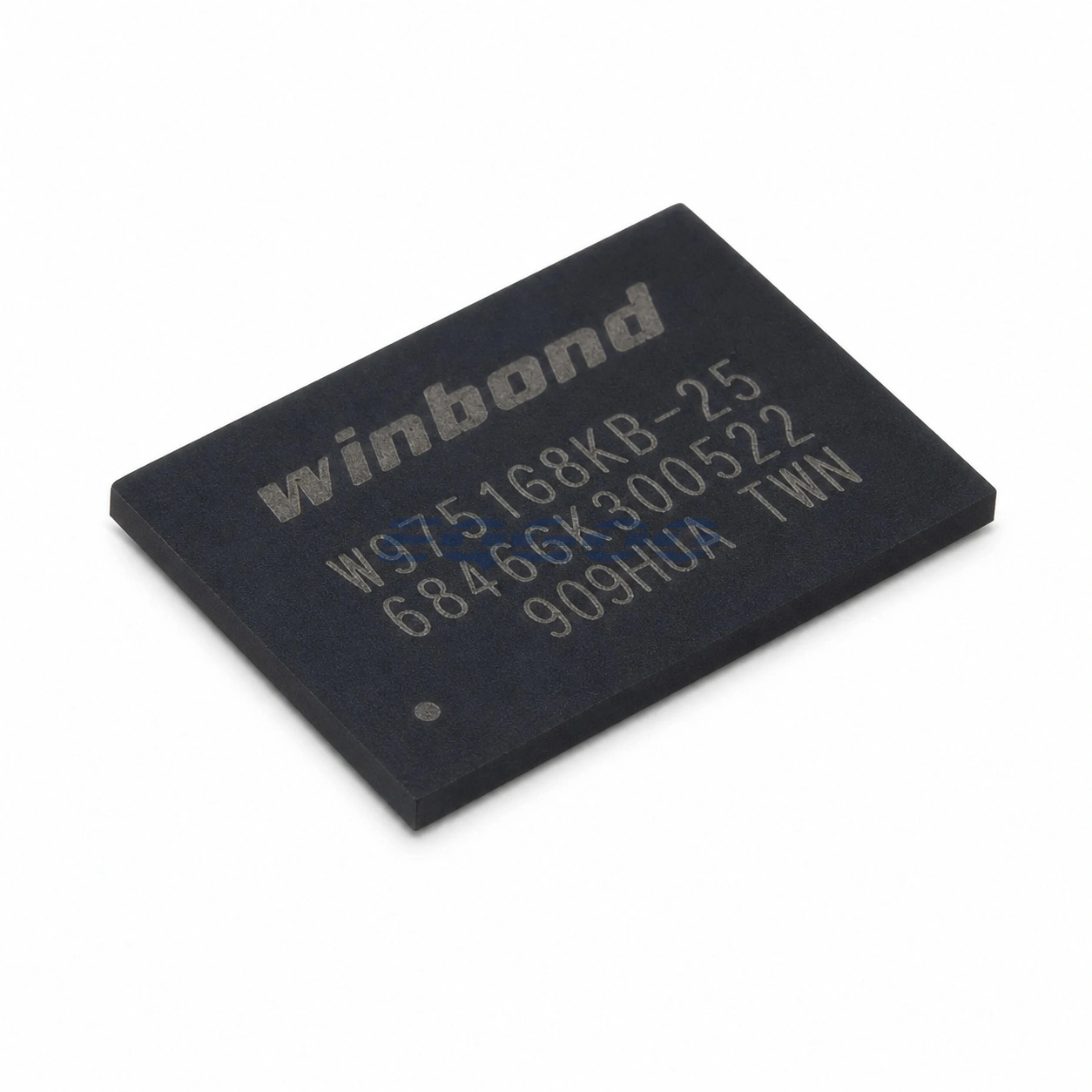

W9751G8KB-25 is a 512 Mbit, DDR2 SDRAM, up to 400 MHz, for 1.7 V to 1.9 V, supplied in WBGA-60.
The exact part should be matched to a controller that supports DDR2 SDRAM, the stated voltage range and the required package footprint.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Winbond |
| Exact MPN | W9751G8KB-25 |
| Functional Category | DRAM |
| Memory Type | DDR2 SDRAM |
| Package | WBGA-60 |
| Memory Architecture | DDR2 SDRAM |
| Clock Frequency | 400 MHz |
| Memory Density | 512 Mbit |
| Operating Voltage | 1.7 V to 1.9 V |
| Source Catalog ID | C401658 |
Selection Notes
The host memory controller must explicitly support DDR2 SDRAM; do not substitute across DDR generations solely because density or package appears similar.
Controller voltage, clock target and package footprint should be screened together, with organization and detailed timing confirmed from the exact device documentation before layout or substitution.
Design Considerations
- Configure the memory controller for DDR2 SDRAM, not merely for the same density.
- Validate controller timing and power-rail compatibility at the intended operating point before PCB release.
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. Physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
For W9751G8KB-25 quotation, provide the exact MPN, required quantity, destination, target Date Code if applicable, and any inspection or testing requirements.
For a wider DDR2 data interface, Winbond W9751G6KB-25 provides a 32M x 16 organization in an 84-ball WBGA package, versus the 64M x 8 organization and 60-ball WBGA of W9751G8KB-25. Both are 512 Mbit, 1.8 V DDR2 devices, but bus width and package ball count differ; confirm controller connections and board layout before choosing between them.
