Procurement Snapshot
| Procurement Field | Value |
|---|---|
| Exact MPN | USB2422T/MJ |
| Manufacturer | Microchip Technology |
| Package | QFN-24-EP(4×4) |
| Availability | Request current stock and lead time by RFQ |
| Datasheet | Verified PDF |
Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Voltage – Supply | 3.3V |
| Quiescent Supply Current | 425uA |
| Current – Supply | 70mA |
| Data Rate | 480Mbps |
| Number of Channels | 2 |
| Memory Interface | SMBus |
| Operating Temperature | 0℃~+70℃ |
| Features | BC1.1 protocol support;Port power switch control;Downstream port power switch;Overcurrent Protection;Internal regulator;ESD protection |
Product Overview

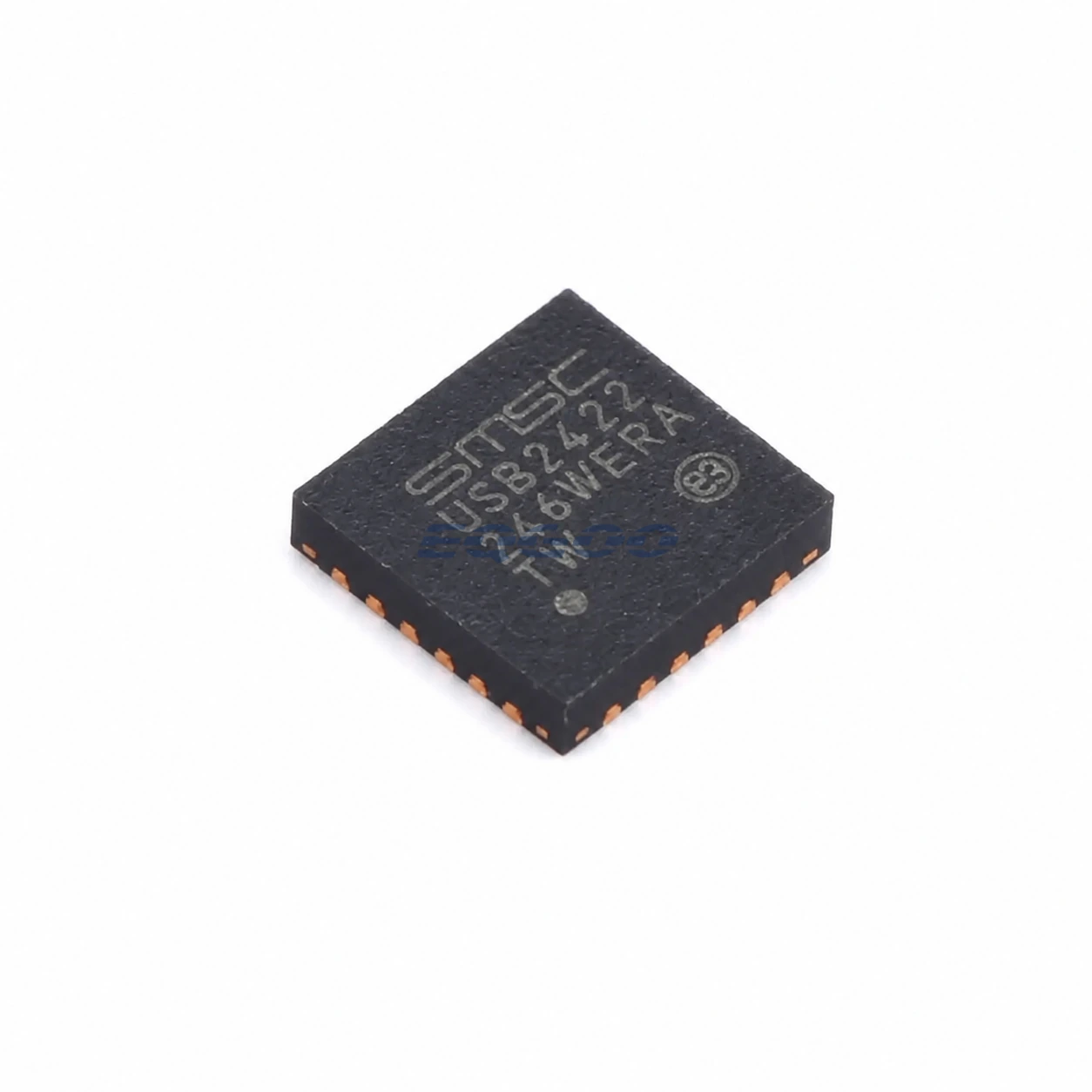

USB2422T/MJ is a 480Mbps QFN-24-EP(4×4) Controllers from Microchip Technology. The exact manufacturer order code is preserved for BOM, RFQ and incoming-inspection control. The verified package is QFN-24-EP(4×4), and the verified functional category is Controllers. Confirmed selection data for this exact listing includes Voltage – Supply 3.3V, Quiescent Supply Current 425uA, Current – Supply 70mA, Data Rate 480Mbps.
Alternative Candidates
| MPN | Manufacturer | Package |
|---|---|---|
| USB2422/MJ | MICROCHIP | QFN-24-EP(4×4) |
| USB2422T-I/MJ | MICROCHIP | QFN-24-EP(4×4) |
| USB2422-I/MJ | MICROCHIP | QFN-24-EP(4×4) |
These candidates are listed by LCSC. Verify electrical characteristics, pinout, package, qualification and application requirements before substitution.
Quality & RFQ Support
For quotation or inspection requirements, provide the exact MPN, quantity, destination, target Date Code if applicable, and any requested third-party testing before shipment.
For designs requiring four rather than two USB 2.0 Hi-Speed hub downstream ports, compare USB2514B-I/M2 (4-port, SQFN-36, 6 × 6 mm) with this USB2422T/MJ (2-port, QFN-24, 4 × 4 mm). Both are Microchip USB 2.0 hub controllers, but the port count, PCB land pattern and configuration differ; check the datasheets rather than assuming pin or firmware compatibility.
