Procurement Snapshot
| Procurement Field | Value |
|---|---|
| Exact MPN | USB2514B-I/M2 |
| Manufacturer | Microchip Technology |
| Package | SQFN-36-EP(6×6) |
| Availability | Request current stock and lead time by RFQ |
| Datasheet | Verified PDF |
Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Voltage – Supply | 3.3V |
| Quiescent Supply Current | 550uA |
| Current – Supply | 70mA |
| Data Rate | 480Mbps |
| Number of Channels | 4 |
| Memory Interface | I2C |
| Operating Temperature | -40℃~+85℃ |
| Features | BC1.1 protocol support;Port power switch control;Internal regulator;ESD protection;Overcurrent Protection |
Product Overview

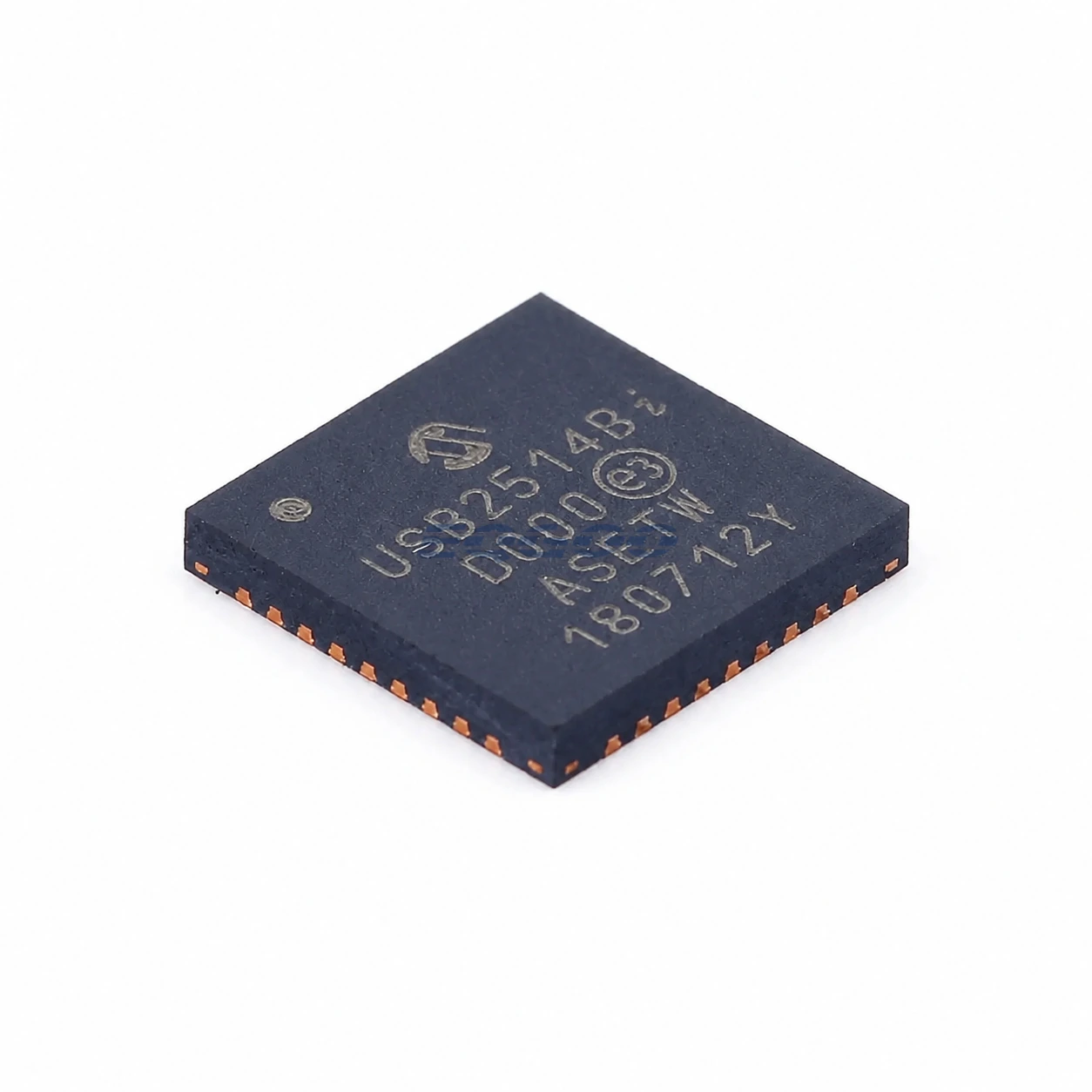

USB2514B-I/M2 is a 480Mbps SQFN-36-EP(6×6) Controllers from Microchip Technology. The exact manufacturer order code is preserved for BOM, RFQ and incoming-inspection control. The verified package is SQFN-36-EP(6×6), and the verified functional category is Controllers. Confirmed selection data for this exact listing includes Voltage – Supply 3.3V, Quiescent Supply Current 550uA, Current – Supply 70mA, Data Rate 480Mbps.
Alternative Candidates
| MPN | Manufacturer | Package |
|---|---|---|
| USB2514B/M2 | MICROCHIP | SQFN-36-EP(6×6) |
| USB2514BT-I/M2 | MICROCHIP | QFN-36-EP(6×6) |
| USB2534-1080AEN | MICROCHIP | QFN-36-EP(6×6) |
| USB2534I-1080AEN | MICROCHIP | SQFN-36-EP(6×6) |
These candidates are listed by LCSC. Verify electrical characteristics, pinout, package, qualification and application requirements before substitution.
Quality & RFQ Support
For quotation or inspection requirements, provide the exact MPN, quantity, destination, target Date Code if applicable, and any requested third-party testing before shipment.
For designs needing only two downstream USB 2.0 Hi-Speed hub ports in a smaller package, compare USB2422T/MJ (2-port, QFN-24, 4 × 4 mm) with this USB2514B-I/M2 (4-port, SQFN-36, 6 × 6 mm). Microchip identifies both as USB 2.0 hub controllers, but their port-count, PCB footprint and configuration details differ; this is not a pin-compatible replacement recommendation.
