Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Channels | 3 constant-current sinks |
| PWM | 12-bit / 4096-step grayscale |
| Interface | Single-wire EasySet, up to 3 Mbps |
| Current | 2–35 mA/channel at VCC ≤4 V; up to 50 mA above 4 V |
| Output Voltage | Up to 21 V |
| Supply | 3 V to 6 V |
| Cascade | Unlimited-device serial cascading stated |
| Exact Package / Packing | SOIC (D), 8 pins; 2500-piece large reel |
Product Overview
TLC5973DR targets a single RGB LED cluster or long cascaded strings where wiring count matters. One data wire carries 12-bit values to three constant-current sinks and can be daisy-chained through many devices.
The current ceiling depends on VCC: 50 mA/channel is conditional on VCC above 4 V. A design using 3.3 V should not copy the 50 mA headline.
The 21 V output rating allows series/high-forward-voltage LED arrangements, but the sink voltage/current product determines package heat.
For related devices, see HKEQGOO’s LED Drivers ICs category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | TLC5973DR |
| Channels | 3 constant-current sinks |
| PWM | 12-bit / 4096-step grayscale |
| Interface | Single-wire EasySet, up to 3 Mbps |
| Current | 2–35 mA/channel at VCC ≤4 V; up to 50 mA above 4 V |
| Output Voltage | Up to 21 V |
| Supply | 3 V to 6 V |
| Cascade | Unlimited-device serial cascading stated |
| Exact Package / Packing | SOIC (D), 8 pins; 2500-piece large reel |
| Manufacturer Status | Active / Production |

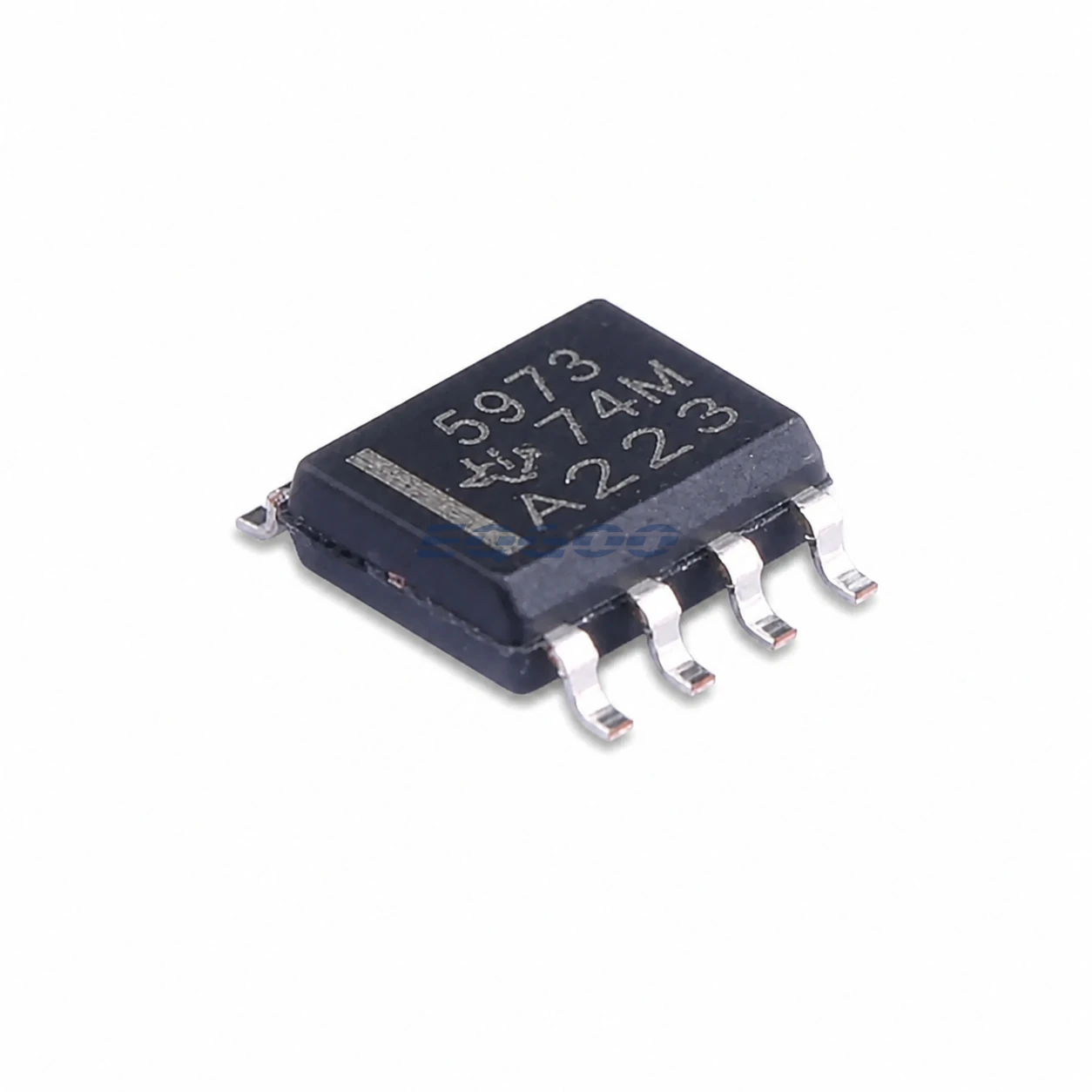

| Part Marking | 5973 |
Functional Highlights
Single-wire control minimizes harness traces
EasySet can be attractive in distributed RGB clusters where adding clock/chip-select wires is expensive.
12-bit grayscale supports smoother fades than 8-bit drivers
The benefit is most visible at low brightness, provided LED current matching and optical variation are also controlled.
Design Considerations
- Use the VCC-dependent current limit when choosing R_IREF and LED current.
- Check sink power at the maximum LED supply/output voltage.
- Validate cascade timing/data integrity over the actual physical wiring length.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists TLC5973DR as Active / Production; SOIC (D), 8 pins; 2500-piece large tape and reel; −40°C to +125°C; marking 5973.
