Device Overview

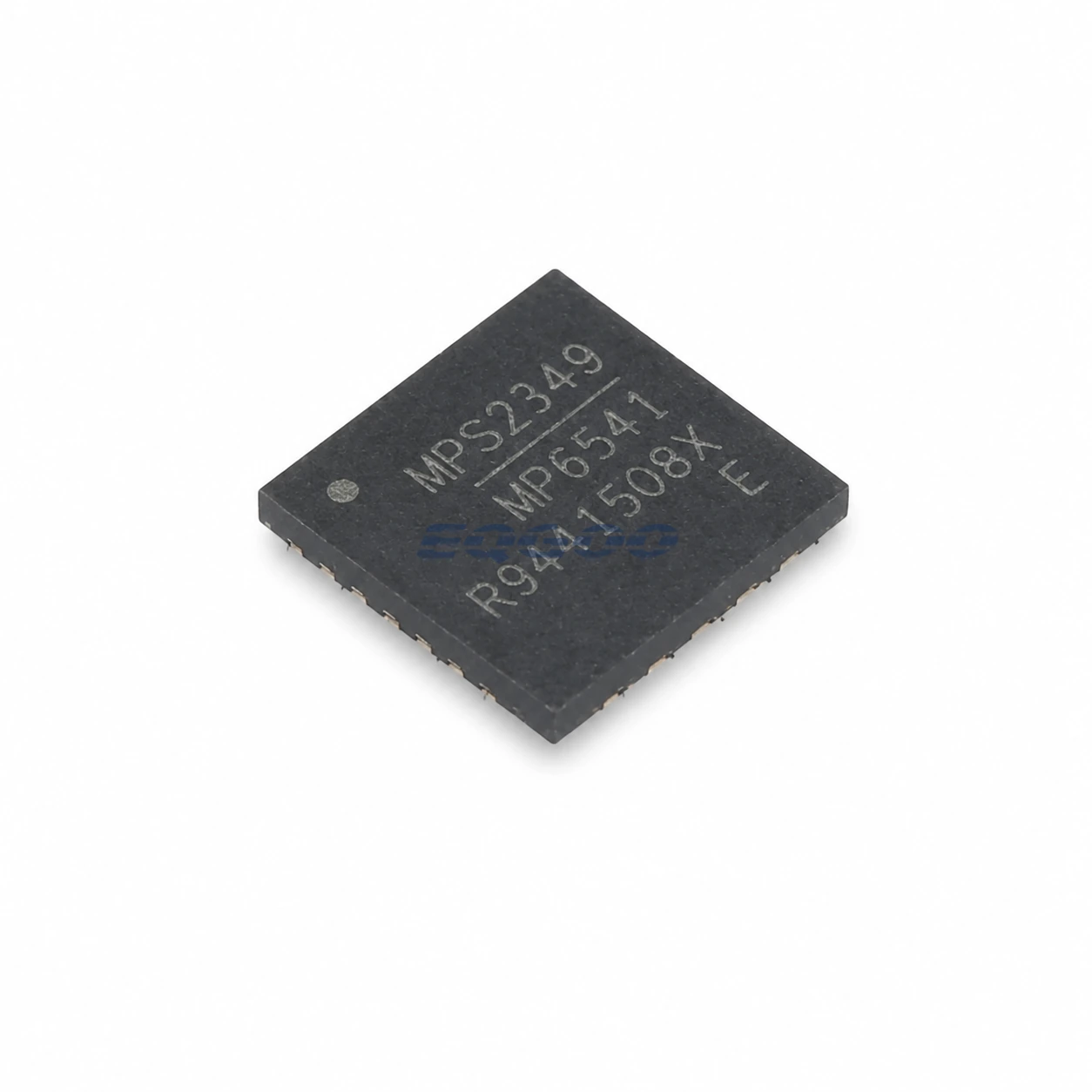

MPQ6541GQKTE-AEC1-Z is the automotive-qualified MPQ6541-AEC1 three-phase BLDC power stage from MPS. It integrates three half-bridges built from six N-channel MOSFETs, current-sense amplifiers, gate-drive supplies, and PWM/ENBL control in a wettable-flank TQFN-26 package.
Key Selection Information
| Parameter | Verified Information |
|---|---|
| Manufacturer | Monolithic Power Systems (MPS) |
| Exact MPN | MPQ6541GQKTE-AEC1-Z |
| Operating supply | 4.75 V to 40 V |
| Power stage | Three integrated half-bridges / six N-channel MOSFETs |
| Continuous output current | Up to 8 A, dependent on PCB and thermal conditions |
| Peak output current | Up to 12 A for 1 second |
| MOSFET on-resistance | 15 mΩ per MOSFET |
| Exact control interface | PWM and ENBL inputs for each half-bridge |
| Duty-cycle capability | Internal charge pump supports 100% duty-cycle operation |
| Protection | UVLO, OVP, over-current protection and thermal shutdown |
| Qualification | AEC-Q100 Grade 1 |
| Package | Wettable-flank TQFN-26, 6 mm x 6 mm |
| Manufacturer lifecycle | Active |
Engineering Selection Notes
The 8 A value is a continuous-current capability only when PCB copper and thermal conditions support it. The 12 A value is a separate one-second peak condition. Motor phase current, ambient temperature, switching loss and board thermal resistance therefore determine how much of the headline current can be used continuously.
The exact MPQ6541-AEC1 interface uses PWM and ENBL inputs. The related MPQ6541A-AEC1 uses separate high-side and low-side inputs, so those family variants should not be treated as control-interface equivalents without firmware and pinout review.
The integrated charge pump supports 100% duty-cycle operation, which is useful when phase voltage must approach the supply rail. This does not remove the need to verify switching frequency, dead-time behavior, current-sense headroom and motor inductance for the intended control scheme.
