Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Manufacturer | MPS |
| Exact MPN | MP6536DU-LF-Z |
| Product Category | Motor Drivers, Controllers |
| Package | QFN-40(5×5) |
| Packing | 5,000 pcs/reel |
| Driver Type | Three-phase |
| Half-Bridge Count | 3 |
| Output Current | 5.5A |
| Peak Current | 5.5A |
Product Overview

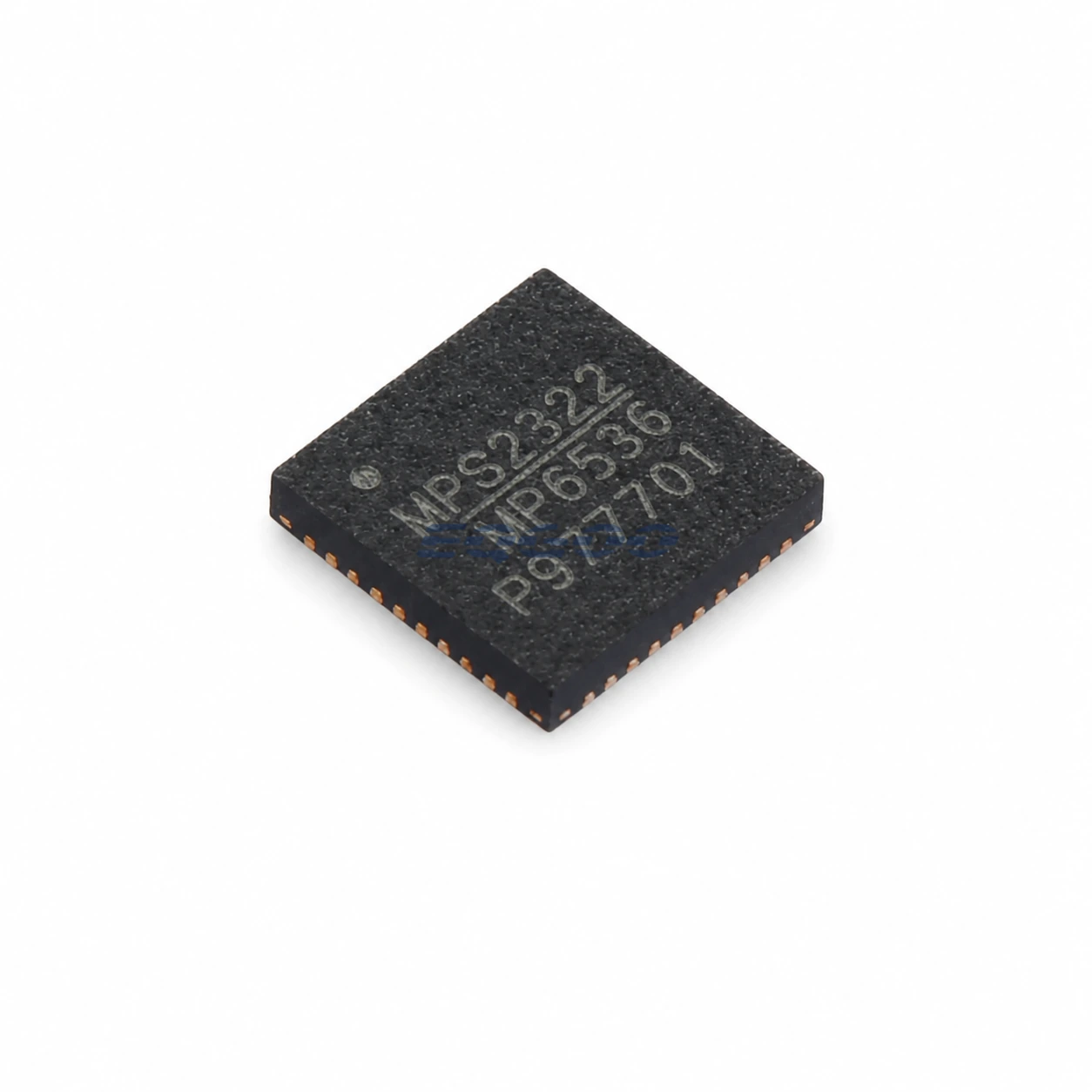

MPS currently lists MP6536DU-LF-Z as an active orderable part in the MP6536 family. MP6536 is a 26V, Ā±5.5A peak, 3-channel half-bridge driver intended for three-phase BLDC motor drive.
The published Ā±5.5A value is a peak output rating, so continuous motor current still depends on switching conditions and thermal design. The three-channel architecture is appropriate where the controller and commutation scheme match the PWM interface.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | MPS |
| Exact MPN | MP6536DU-LF-Z |
| Functional Category | Motor Drivers, Controllers |
| Package | QFN-40(5×5) |
| Packing | 5,000 pcs/reel |
| Source Catalog ID | C3655732 |
| Driver Type | Three-phase |
| Half-Bridge Count | 3 |
| Output Current | 5.5A |
| Peak Current | 5.5A |
| Manufacturer Status | Active; the current MPS product page lists MP6536DU-LF-Z among active part numbers. |
Selection Notes
supply-voltage margin; per-phase/aggregate current and thermal capability; PWM/control interface; package and PCB thermal design; exact suffix/orderability.
Match bridge topology, motor voltage/current, integrated-FET architecture and control interface before comparing protection or thermal features.
Manufacturer Decision-Relevant Notes
Motor-driver type: three-phase BLDC driver. ; Motor-supply range: 5V to 26V (evaluation-board description). ; Output capability: Ā±5.5A peak current output. ; Control: PWM-modulated inputs. ; Protection/features: low-current shutdown, standby mode, input undervoltage protection, current limit, thermal shutdown, fault flag.
Design Considerations
-
- Use the QFN-40 (5mm Ć 5mm) package drawing for the DU variant. 2. Treat Ā±5.5A as a peak rating and validate continuous current against the actual PCB and thermal conditions. 3. Confirm input-voltage transient limits, PWM thresholds/frequency, current-limit behavior, and fault semantics. 4. Validate exposed-pad/via/thermal-copper requirements against the 40-lead QFN package.
Application Fit
Three-phase BLDC motor drive; MPS lists the device in UAV-related resources.
Manufacturer Resources
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. Physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
For MP6536DU-LF-Z quotation, provide the exact MPN, required quantity, destination, target Date Code if applicable, and any inspection or testing requirements.
