Device Overview
MP2636GR-Z is the tape-and-reel orderable of the MP2636 single-cell switch-mode battery charger with system power-path management. It supports normal charging when an input source is present and reverse-boost operation from the battery when the system must be powered without the input source.
Confirmed Technical and Ordering Data
| Parameter | Confirmed value | Scope / condition |
|---|---|---|
| Device Function | Single-cell Li-ion/Li-poly switch-mode charger with power-path management | Specified for the documented device/orderable |
| Recommended Input Voltage | 4.5 to 6.0 V | recommended operating VIN; not the 16 V sustainable-input headline |
| Sustainable Input Voltage | Up to 16 V | survivability/feature headline; not the recommended operating range |
| Battery Voltage Range | 2.5 to 4.35 V | recommended BATT operating range |
| Programmable Charge Current | Up to 3.0 A | Specified for the documented device/orderable |
| Charge Voltage | Selectable 4.2 / 4.3 / 4.35 V | 0.5% accuracy headline |
| Boost Output Current Limit | Up to 3.0 A | programmable current limit in reverse-boost mode |
| Switching Frequency | 600 kHz | electrical characteristics, FREQ = LOW |
| Operating Junction Temperature | -40 to +125 °C | recommended operating conditions |

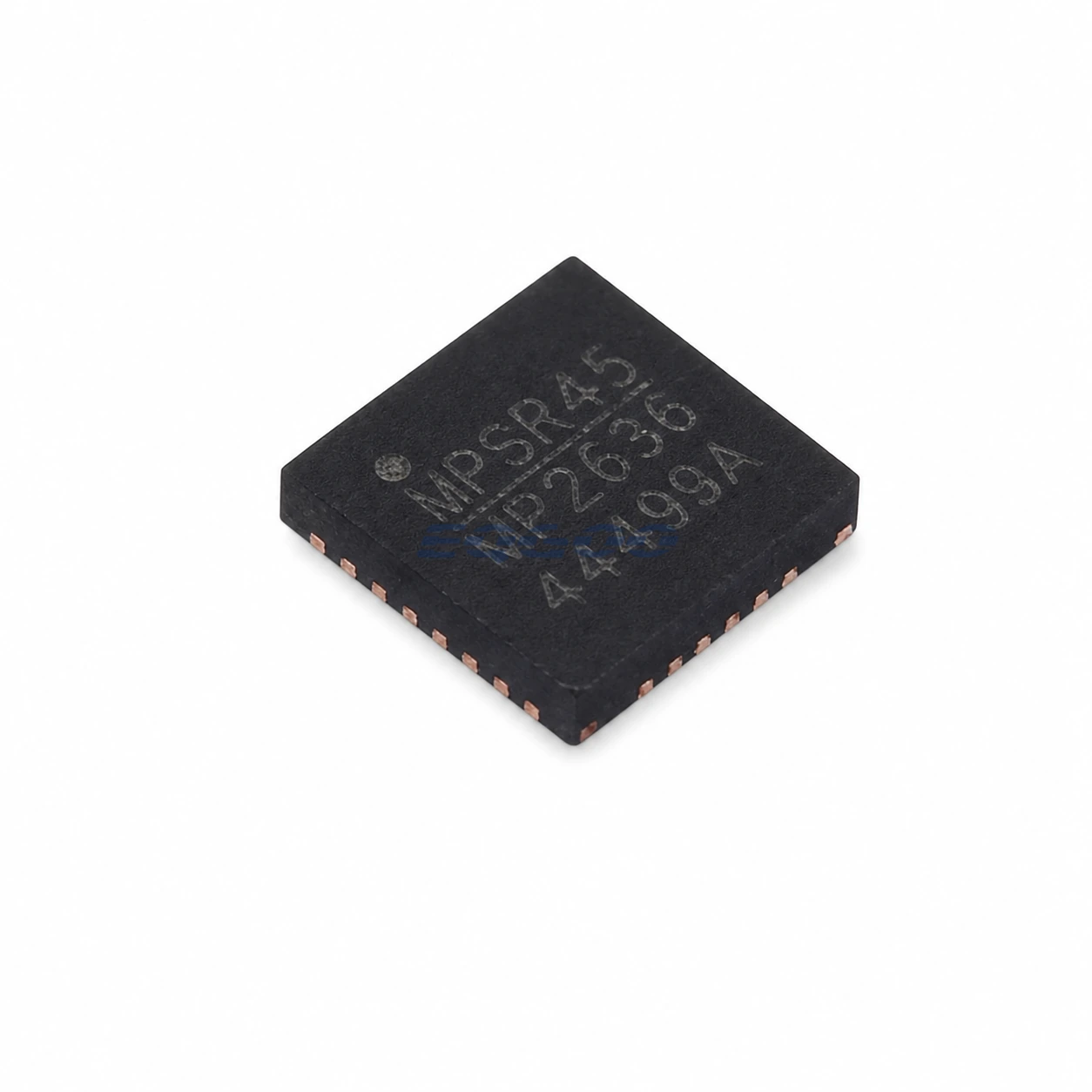

| Exact Package | QFN-30 (4×4 mm) | MP2636GR; -Z denotes tape-and-reel |
Engineering Selection Guidance
Use 4.5 to 6.0 V as the design operating VIN range. The 16 V figure describes sustainable input capability and must not be used as the normal recommended input range.
Charge current and reverse-boost output current are separately programmable up to 3.0 A; they belong to different operating modes and should not be treated as one continuous-current rating.
The selectable 4.2 V, 4.3 V and 4.35 V charge targets allow the charger to match different single-cell chemistries, while battery temperature monitoring, timer protection and thermal regulation still set system-level charging constraints.
Lifecycle and Procurement
Monolithic Power Systems (MPS) currently lists the exact orderable MP2636GR-Z as Active. The verified package is QFN-30 (4×4 mm). Lifecycle information supports sourcing and design planning; it does not state HKEQGOO stock, lead time, MOQ or final availability.
Official Engineering Resources
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment.
Request a Quote
For MP2636GR-Z sourcing, provide the required quantity, destination, target Date Code if applicable, and any inspection or testing requirements.
