Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | Quad differential comparator |
| Channels | 4 |
| Maximum supply | 36 V |
| Supply range | 3 V to 36 V class |
| Output topology | Open collector |
| Typical response time | 1.3 µs class |
| Typical supply current | 1 mA class |
| Package | SOIC-14 |
| Temperature range | −40°C to +105°C |
Product Overview

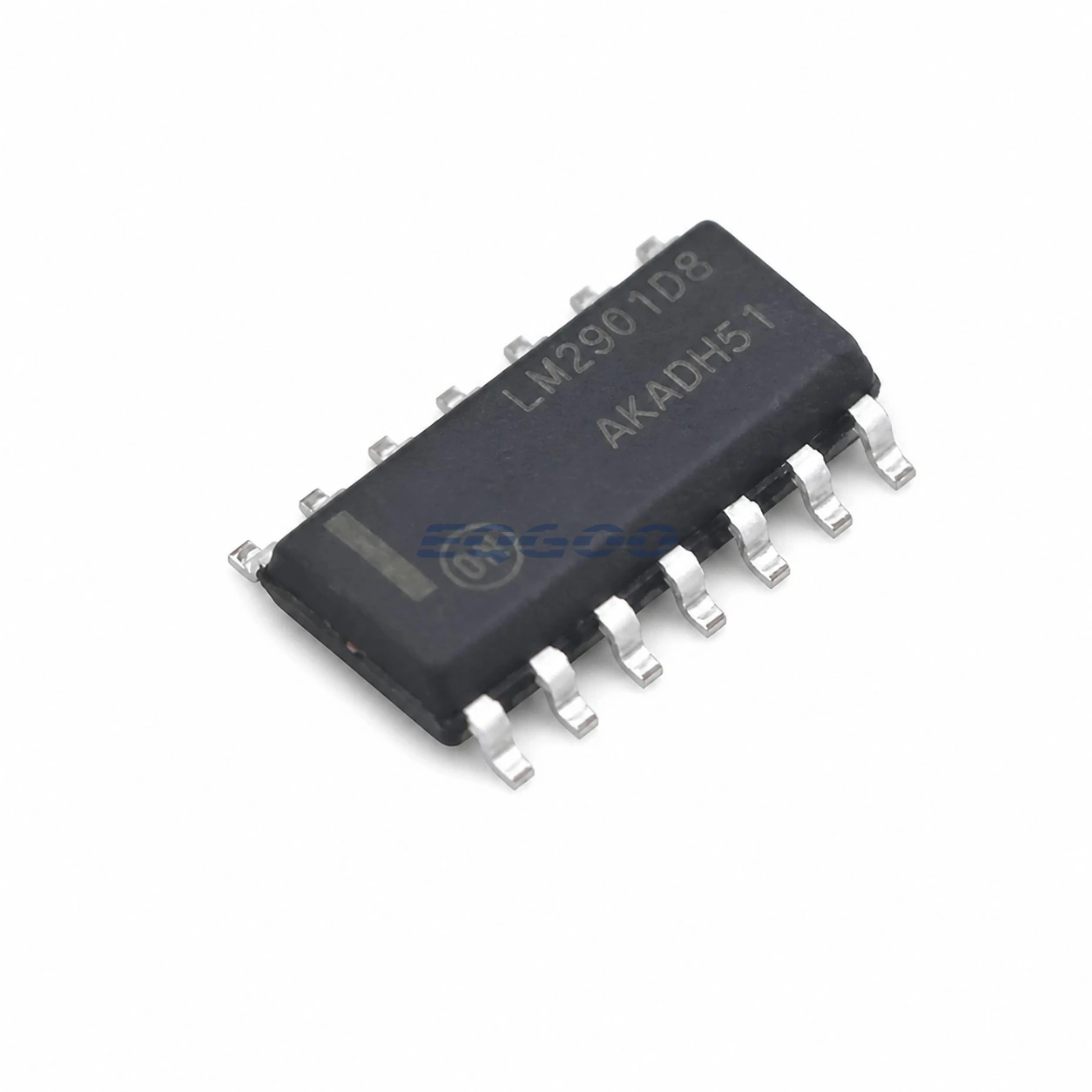

LM2901DR2G is onsemi’s quad general-purpose comparator in SOIC-14 tape-and-reel packaging. Four independent comparator channels share the supply and provide open-collector outputs, allowing pull-up voltage selection and wired logic functions.
The device supports a broad 3 V to 36 V supply range, making it suitable for monitoring and threshold functions in mixed-voltage control systems.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Channels | 4 |
| Supply | 3 V to 36 V class |
| Output | Open collector |
| Typical response time | 1300 ns class |
| Typical supply current | 1 mA class |
| Input offset maximum class | 7 mV |
| Package | SOIC-14 |
| Temperature | −40°C to +105°C |
Comparator Integration Considerations
Because the outputs are open collector, each used channel needs an appropriate pull-up. Input signals near the upper supply rail should also be checked against the comparator’s common-mode limits rather than assuming rail-to-rail input operation.
