Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | 7-bit volatile digital potentiometer |
| Nominal resistance | 5 kΩ |
| Wiper positions | 128 |
| Interface | I²C-compatible |
| Digital supply operation | 1.8 V to 5.5 V |
| Analog specification range | 2.7 V to 5.5 V |
| Terminal B | Internally connected to ground |
| Family status | In Production |
Product Overview

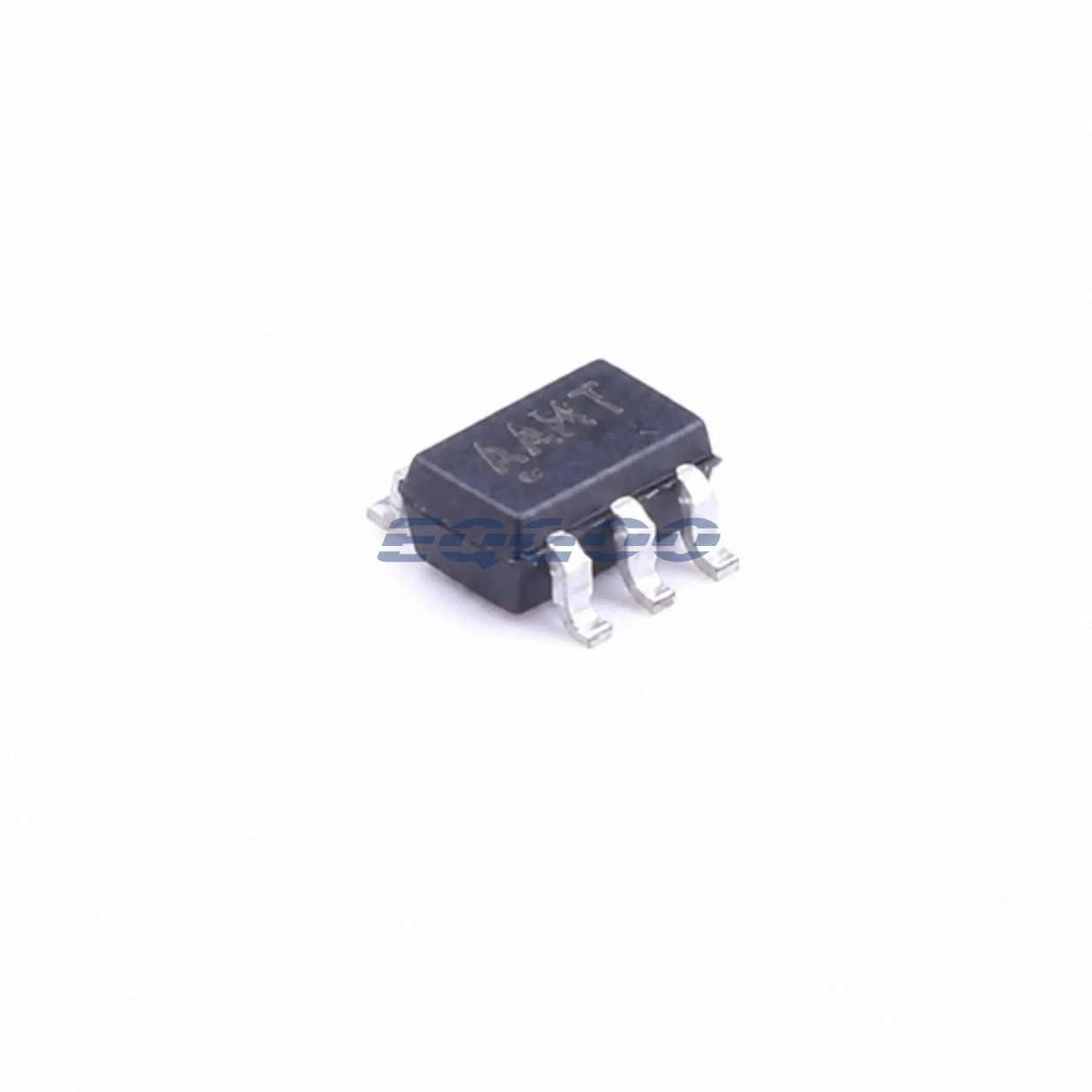

The MCP4018T-502E/LT is the 5 kΩ extended-temperature version of Microchip’s MCP4018 volatile I²C digital potentiometer in SC70-6. It provides 128 wiper settings while internally connecting terminal B to ground, simplifying grounded-divider applications.
That internal B-to-ground connection is the key topology constraint. The device should not be substituted for a fully floating three-terminal digital potentiometer where both ends of the resistor string must be independently accessible.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Resolution | 7 bit / 128 steps |
| Nominal resistance | 5 kΩ |
| Digital operating voltage | 1.8 V to 5.5 V |
| Analog specified voltage | 2.7 V to 5.5 V |
| Typical wiper resistance | ~100 Ω at VDD = 5.5 V, IW = 2 mA, code 00h |
| Typical static current | 2.5 µA |
| I²C standard mode | Up to 100 kHz |
| I²C fast mode | Up to 400 kHz at specified bus conditions |
| Typical ratiometric tempco | ~15 ppm/°C at midscale |
| Operating temperature | -40°C to +125°C |
| Package | SC70-6 |
Design Considerations
Wiper resistance becomes a larger percentage of the programmed value at low codes. Include it in the divider error budget, especially with the 5 kΩ element.
Because the setting is volatile, firmware should restore the required code after power-up. The grounded B terminal should also be reflected in schematic symbol and PCB review to prevent accidental floating use.
Related Engineering Resources
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. After an order is placed, physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
To request a quotation, provide the manufacturer part number, required quantity, destination, target Date Code if applicable, and any testing or inspection requirements.
For a different 5-kohm digital resistance control topology, compare MCP4017T-502E/LT. Microchip DS22147 lists this MCP4018 as an I2C-controlled three-terminal potentiometer configuration to ground, while MCP4017 is the two-terminal rheostat configuration. Both -502E/LT codes are 5-kohm SC70-6 options, but the pin functions differ; check wiring before selection. This is a circuit-topology selection comparison, not a pin-compatible replacement statement.
