Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | Dual differential comparator |
| Channels | 2 |
| Output topology | Open collector |
| Supply class | Up to 36 V single-supply family |
| Input capability | Includes ground in common-mode range |
| Package | TSSOP-8 / PW |
| Temperature range | −40°C to +125°C |
| Packing | R tape-and-reel |
| Product status | Active |
Product Overview

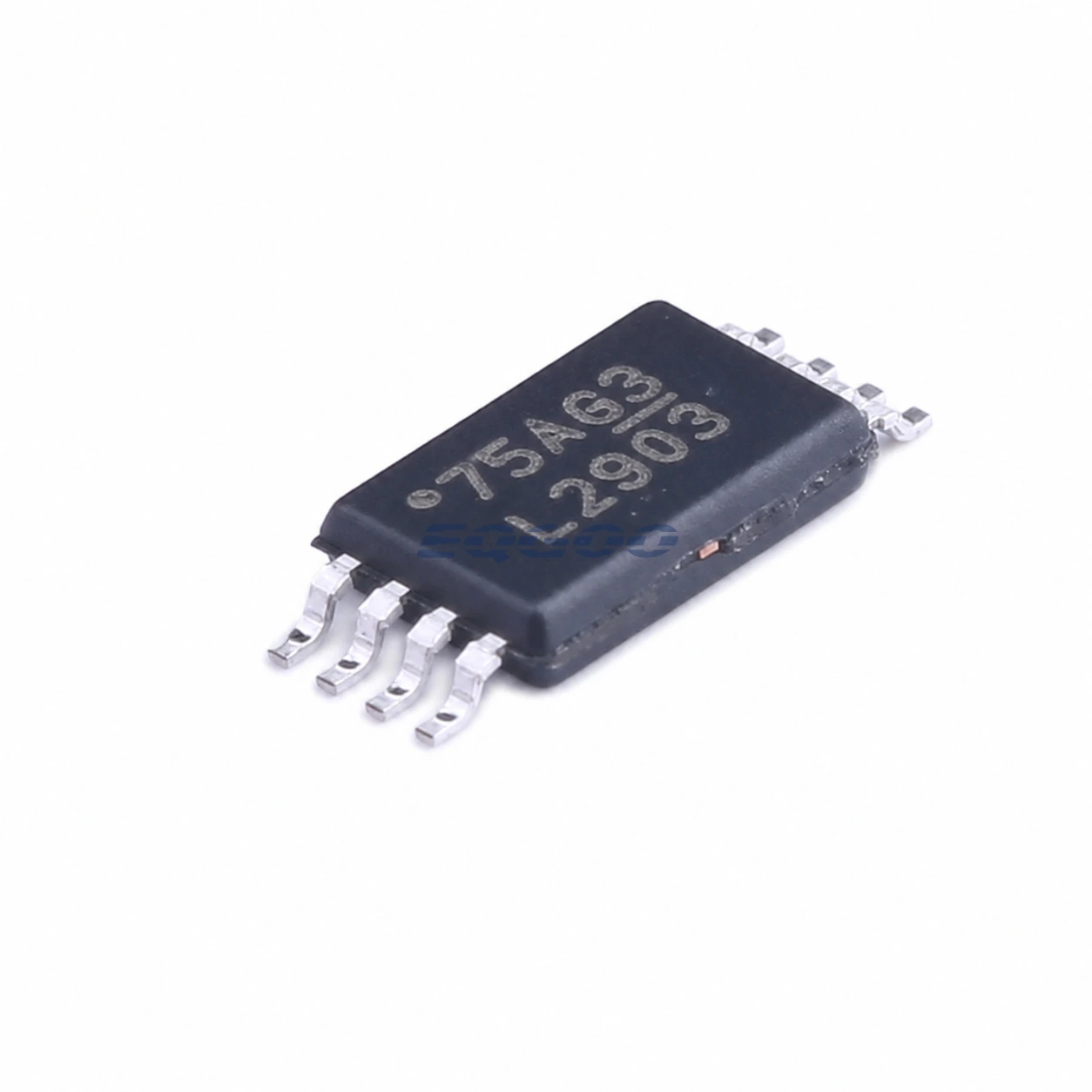

LM2903PWR is a dual open-collector comparator from Texas Instruments in TSSOP-8. The LM2903 family is widely used for threshold detection, window sensing, level conversion and oscillator functions where a simple comparator output can be pulled up to the required logic rail.
Its high supply-voltage capability makes it useful in industrial and automotive-adjacent control circuitry where 5 V-only comparators are not sufficient.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Comparator channels | 2 |
| Output | Open collector |
| Supply-voltage class | Up to 36 V |
| Common-mode behavior | Ground-sensing capable |
| Temperature | −40°C to +125°C |
| Package | TSSOP-8 |
| Package code | PW |
| Reel suffix | R |
Open-Collector Output Considerations
The output requires an external pull-up resistor. That allows level shifting but means rise time depends on pull-up resistance and load capacitance; choose the resistor to balance speed and sink current.
Manufacturer Resource
Texas Instruments LM2903 product page
Quality & Verification Support
Exact LM2903PWR package and reel suffix, marking and lot/date information can be reviewed before shipment.
Request a Quote
Request LM2903PWR exactly and include quantity, date-code and traceability requirements.
For the same Texas Instruments LM2903 dual open-collector comparator in a wider SOIC footprint, compare LM2903DR (SOIC-8, D package) with this LM2903PWR (TSSOP-8, PW package). The comparator family is the same but the mechanical dimensions and PCB land patterns differ, so select the exact orderable package for the board rather than assuming a footprint swap.
