Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Package | LGA-12(2×2) |
| Supply voltage | 1.71V~3.6V |
| Interface | I2C;SPI |
| Acceleration range | ±16g |
| Operating Temperature | -40℃~+85℃ |
| Output Bits | 8bit;10bit;12bit |
| Accelerometer Sensing Axis | X,Y,Z |
Product Overview

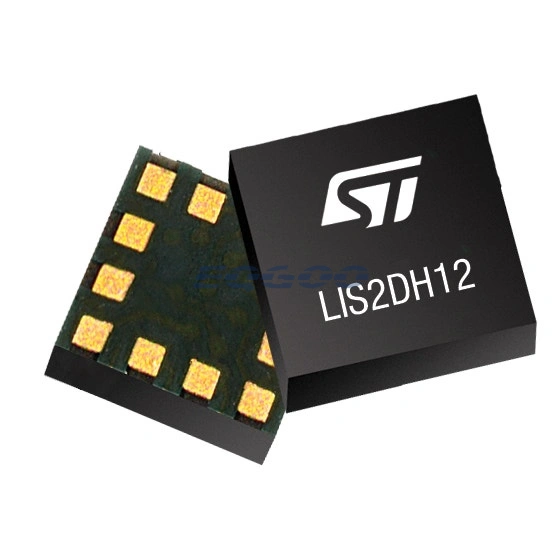

LIS2DH12TR is a STMicroelectronics accelerometer identified by the exact orderable code LIS2DH12TR. Its confirmed technical identity includes Supply voltage 1.71V~3.6V, Interface I2C;SPI, Acceleration range ±16g, Operating Temperature -40℃~+85℃.
The exact device is described as: LGA-12(2×2) Accelerometers. Selection should be based on the exact package and the operating conditions required by the design, rather than on a nearby family member or a generic part number.
Technical Specifications
| Parameter | Value |
|---|---|
| Package | LGA-12(2×2) |
| Supply voltage | 1.71V~3.6V |
| Interface | I2C;SPI |
| Acceleration range | ±16g |
| Operating Temperature | -40℃~+85℃ |
| Output Bits | 8bit;10bit;12bit |
| Accelerometer Sensing Axis | X,Y,Z |
| Cache Size | 0.2KB |
| Features | Motion event detection |
| Standby Current | 500nA |
Selection Notes
- Package: LGA-12(2×2)
- Supply voltage: 1.71V~3.6V
- Interface: I2C;SPI
- Acceleration range: ±16g
- Operating Temperature: -40℃~+85℃
Application Fit
This exact part is appropriate for designs that require a accelerometer with the confirmed package and electrical/function parameters above. Final fit depends on the surrounding circuit, interface, thermal and mechanical requirements of the target design.
Design Considerations
Confirm the available supply rail stays inside the stated operating range, including startup and transient conditions.
Verify interface voltage levels, bus topology and timing/data-rate requirements against the rest of the system.
Use the exact LGA-12(2×2) footprint/package definition when checking PCB land pattern, assembly clearance and sourcing equivalence.
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. After an order is placed, physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
To request a quotation, provide the manufacturer part number, required quantity, destination, target Date Code if applicable, and any testing or inspection requirements.
