Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Quiescent Current | 175 µA per channel |
| Supply | ±1.35 V to ±18 V |
| Gain Range | 5 V/V to 10,000 V/V with one external resistor |
| Offset Voltage | 250 µV maximum |
| Offset Drift | 3 µV/°C maximum |
| Input Bias Current | 25 nA maximum |
| Input Noise | 35 nV/√Hz stated feature |
| Exact Package / Packing | SOIC (D), 8 pins; 2500-piece large tape and reel |
Product Overview

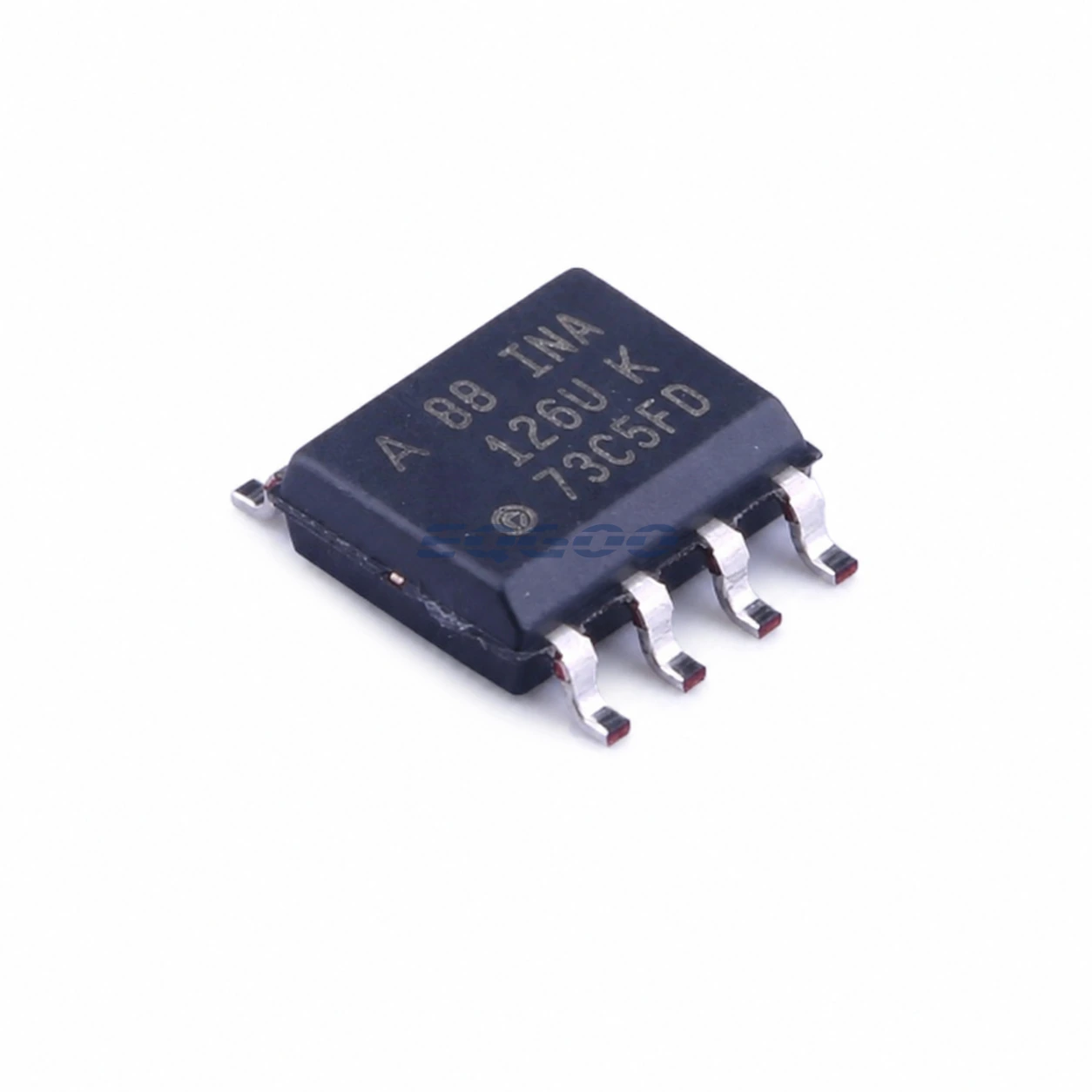

INA126UA/2K5 is a micropower instrumentation amplifier aimed at sensor interfaces where supply current matters more than very low offset or wide bandwidth. The two-op-amp architecture consumes about 175 µA and supports a broad ±1.35 V to ±18 V supply range.
Gain starts at 5 rather than unity and can be extended to 10,000 with one resistor. That is useful for low-level sensors that always require amplification, but it makes INA126 unsuitable when a unity-gain instrumentation stage is required.
The UA grade is the precision SOIC ordering option in a 2500-piece reel. Its core tradeoff is clear: lower power than INA118/INA821-class devices, but higher offset, drift and noise.
For related devices, see HKEQGOO’s Instrumentation Amplifiers category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | INA126UA/2K5 |
| Quiescent Current | 175 µA per channel |
| Supply | ±1.35 V to ±18 V |
| Gain Range | 5 V/V to 10,000 V/V with one external resistor |
| Offset Voltage | 250 µV maximum |
| Offset Drift | 3 µV/°C maximum |
| Input Bias Current | 25 nA maximum |
| Input Noise | 35 nV/√Hz stated feature |
| Exact Package / Packing | SOIC (D), 8 pins; 2500-piece large tape and reel |
| Manufacturer Status | Active / Production |
| Part Marking | INA 126U A |
Functional Highlights
MicroPower operation is the primary selection advantage
At 175 µA, INA126 can materially reduce analog-front-end current in battery-powered or loop-powered sensing. The cost is looser 250 µV offset, 3 µV/°C drift and 35 nV/√Hz noise compared with higher-performance INAs.
Minimum gain of five affects signal-chain architecture
The internal topology is not intended for G=1 buffering. Sensor full-scale amplitude and ADC range should be checked to ensure the required minimum gain does not overdrive later stages.
Design Considerations
- Confirm the signal chain can accept a minimum gain of 5 V/V.
- Budget offset and drift at the actual gain and temperature range rather than comparing quiescent current alone.
- Use a stable RG because external resistor tolerance directly affects gain.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists INA126UA/2K5 as Active / Production; SOIC (D), 8 pins; 2500-piece large tape and reel; Level-2-260C-1 YEAR; marking INA 126U A.
