Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Switch type | Reflective SPDT RF switch |
| Frequency range | DC to 3 GHz |
| Isolation | 50 dB headline specification |
| Control | Positive control from 0/+3 V to 0/+7 V |
| Off-state RF ports | Reflective open |
| Logic compatibility | CMOS and most TTL families |
| Package | 8-lead MSOP |
| Family guidance | Recommended for new designs |
Product Overview

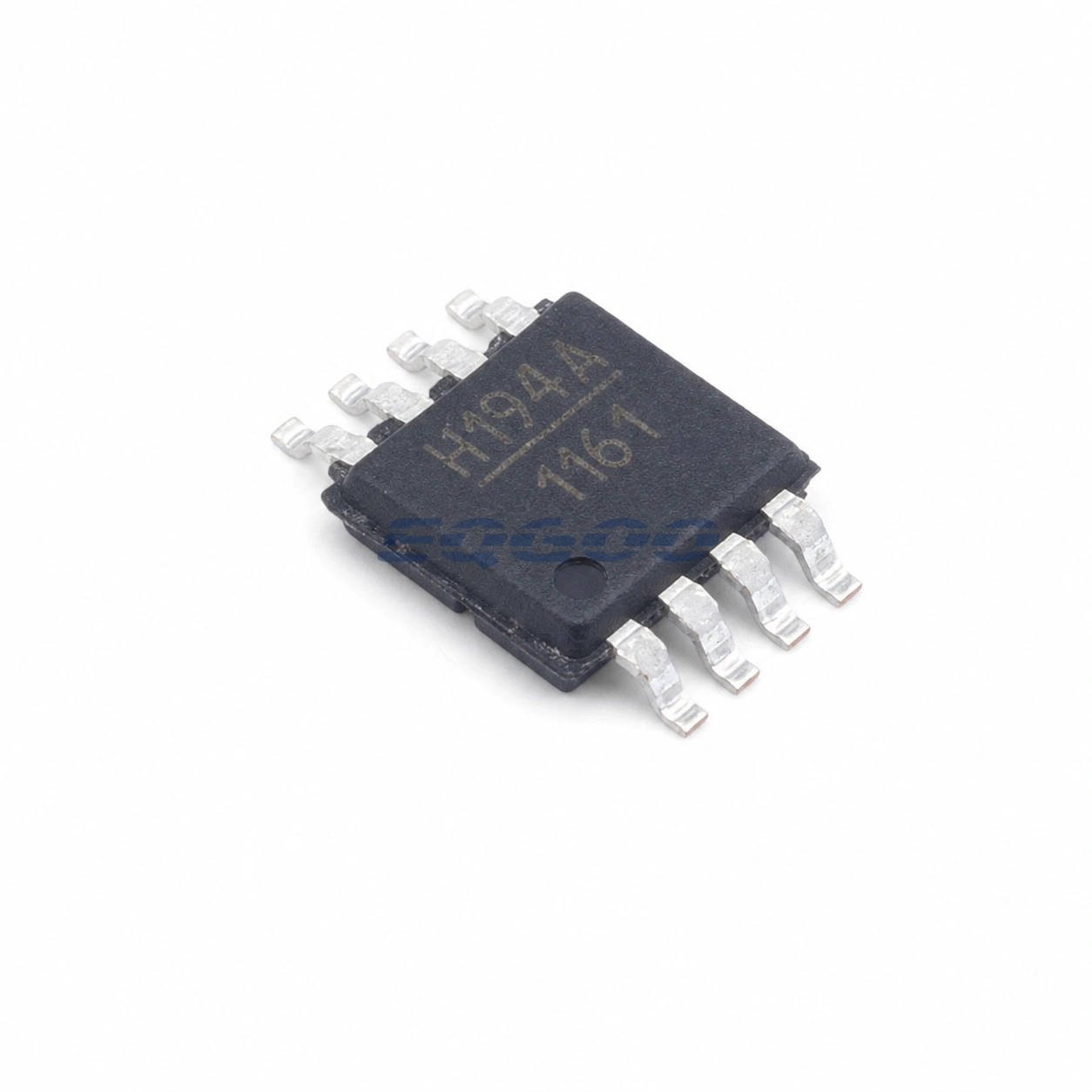

The HMC194AMS8ETR is the tape-and-reel 8-lead MSOP version of Analog Devices’ HMC194A high-isolation SPDT RF switch. It controls signals from DC to 3 GHz and is optimized for applications that need strong separation between two selectable RF paths.
Its defining system behavior is reflective switching: RF1 and RF2 are open when turned off rather than internally matched to 50 Ω. Analog Devices highlights 50 dB isolation and positive-voltage control compatible with CMOS and most TTL logic families. These traits make the part materially different from absorptive SPDT switches even when the operating band overlaps.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Topology | SPDT |
| Off-state behavior | Reflective open |
| Frequency range | DC to 3 GHz |
| Isolation | 50 dB headline specification |
| Positive control range | 0/+3 V to 0/+7 V |
| Control compatibility | CMOS and most TTL logic families |
| Package | 8-lead MSOP |
| Order form | Tape and reel |
| Family design guidance | Recommended for new designs |
Design Considerations
Reflective off-state ports can interact with filters, amplifiers and resonant networks differently from a terminated switch. Check source and load stability in both switch states rather than assuming the high isolation figure also implies a matched inactive port.
The positive-control operating range gives flexibility in logic interfacing, but the selected control voltage must still meet the exact switching-state thresholds and timing conditions in the datasheet. Preserve the MSOP footprint and RF grounding arrangement when comparing replacements.
