Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | Isolated precision half-bridge gate driver |
| Isolation rating | 3 kV rms class |
| Peak output current | 4 A |
| Maximum switching frequency | 1 MHz |
| Secondary UVLO option | A grade, approximately 4.1 V |
| Propagation delay | 54 ns maximum |
| Ordering form | Reel |
| Package | 16-lead SOIC |
Product Overview

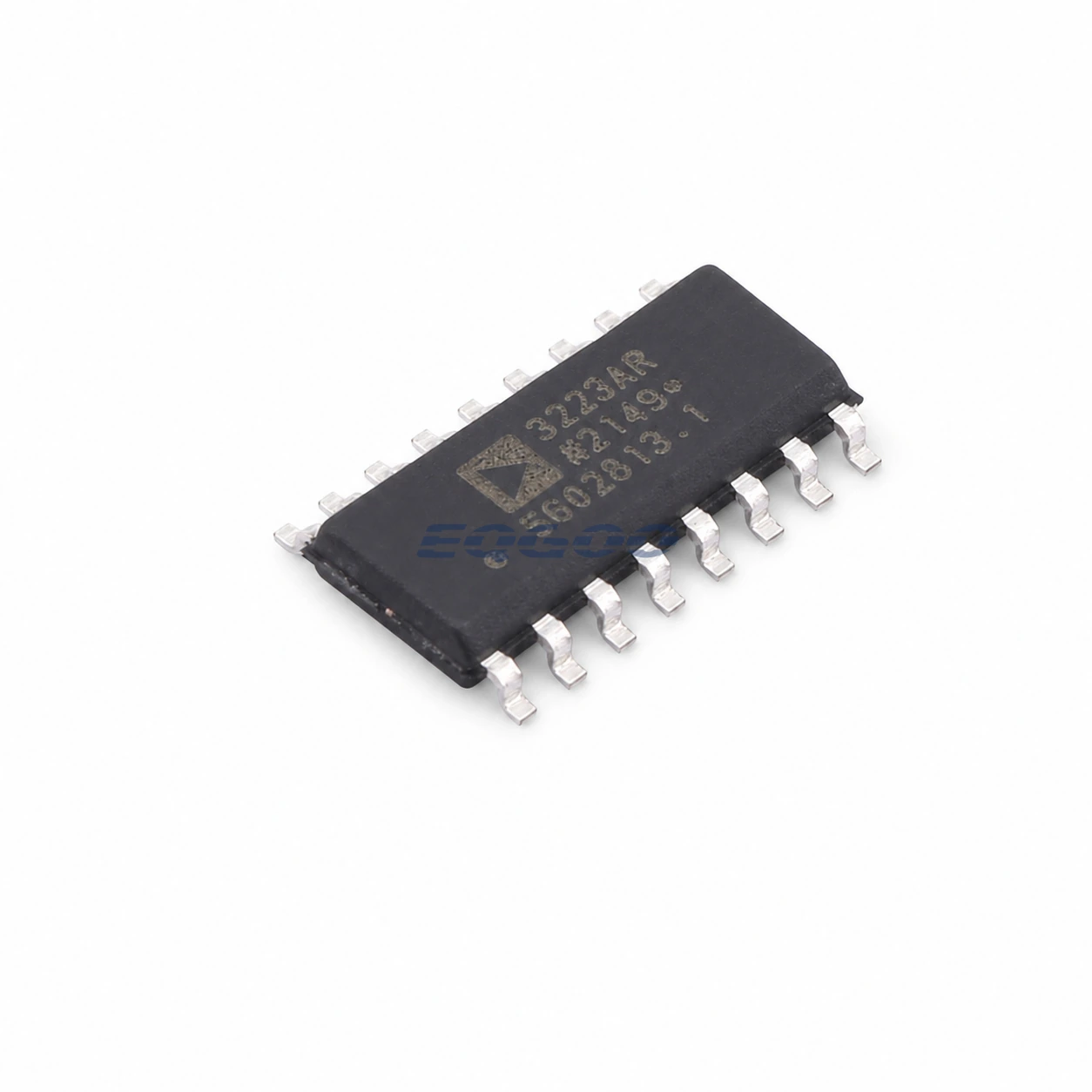

ADUM3223ARZ-RL7 is the reel-packed A-grade orderable of the ADuM3223 isolated half-bridge gate driver. It retains the family’s 4 A peak gate-drive capability, 1 MHz switching-frequency support and tightly matched isolated channels.
The electrical selection point remains the A-grade low secondary-UVLO threshold, while the -RL7 suffix identifies the reel supply form. It is therefore important to preserve both the A grade and the carrier suffix when a production BOM specifies this exact order code.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Peak output current | 4 A |
| Maximum switching frequency | 1 MHz |
| Input logic | 3.3 V / 5 V CMOS compatible |
| Output-side supply | 4.5 V to 18 V |
| A-grade secondary UVLO | Approximately 4.1 V |
| Maximum propagation delay | 54 ns |
| Maximum channel matching | 5 ns |
| Packing | Reel |
Production and Drive-Supply Considerations
A-grade UVLO permits use with lower gate-drive supply voltages than the B- and C-grade variants. The chosen rail must still satisfy the external transistor’s required gate voltage over temperature and load.
The -RL7 order code is a procurement distinction. Replacing it with a non-reel orderable may be electrically acceptable but can break feeder, AVL or material-control requirements.
Manufacturer Resource
Analog Devices ADuM3223 product page
Quality & Verification Support
Exact A-grade suffix, reel label, package marking and lot/date code can be reviewed during sourcing.
Request a Quote
Request ADUM3223ARZ-RL7 exactly and include quantity, date-code and traceability requirements.
