Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | Local and remote temperature monitor |
| Remote resolution | 0.25°C |
| Remote accuracy | ±1°C class |
| Local resolution | 1°C |
| Interface | SMBus / 2-wire |
| SMBus address | 0x4C |
| Extended measurement range | −55°C to +150°C |
| Series-resistance cancellation | Up to 3 kΩ typical |
| Package | MSOP-8 |
Product Overview
ADT7461ARMZ-R7 is an onsemi digital temperature monitor that measures both its internal sensor and an external transistor/processor thermal diode. The remote channel provides 0.25°C resolution and ±1°C-class accuracy while automatically cancelling up to 3 kΩ typical series resistance in the diode path, enabling useful RC noise filtering.

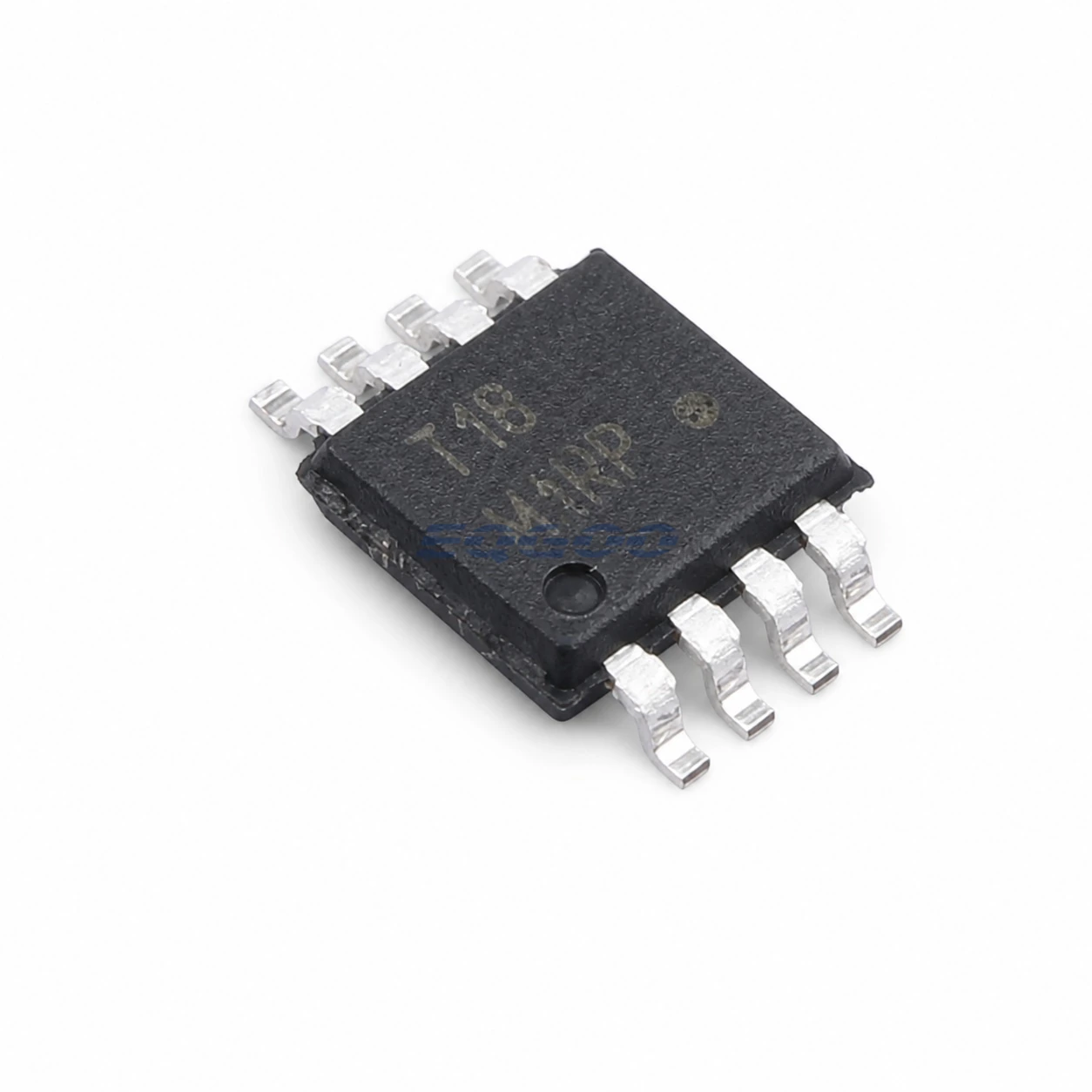

The ARMZ-R7 orderable uses an 8-lead MSOP and ships in 1000-piece tape and reel.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Remote resolution | 0.25°C |
| Remote accuracy | ±1°C class |
| Local resolution | 1°C |
| Local accuracy | ±3°C class |
| Measurement range | 0°C to +127°C default; −55°C to +150°C extended |
| Interface | SMBus |
| SMBus address | 0x4C |
| Supply | 3.0 V to 5.5 V operating domain |
| Package | MSOP-8 |
Remote-Diode Layout Considerations
The remote diode input handles very small signals. Route D+ and D− together, away from switching nodes, and use the datasheet’s filtering guidance where needed. The resistance-cancellation feature reduces error from series filter resistors but does not eliminate poor grounding or coupled noise.
Manufacturer Resource
Quality & Verification Support
Exact ARMZ-R7 MSOP order code, SMBus-address variant, reel format and lot/date information can be reviewed before shipment.
Request a Quote
Request ADT7461ARMZ-R7 exactly and include quantity, date-code and traceability requirements.
