Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Accuracy | ±0.5°C maximum from 0°C to +65°C at 3.3 V; ±1°C maximum from −40°C to +125°C |
| Supply | 1.4 V to 3.6 V |
| Resolution | 12 bits, 0.0625°C |
| Interface | I²C/SMBus compatible with programmable alert |
| Addresses | Up to four devices on one bus |
| Power | 7.5 µA maximum active; 0.35 µA maximum shutdown stated features |
| Traceability | Production testing is NIST-traceable |
| Packing | SOT-5X3 (DRL), 6 pins; 4000-piece large tape and reel |

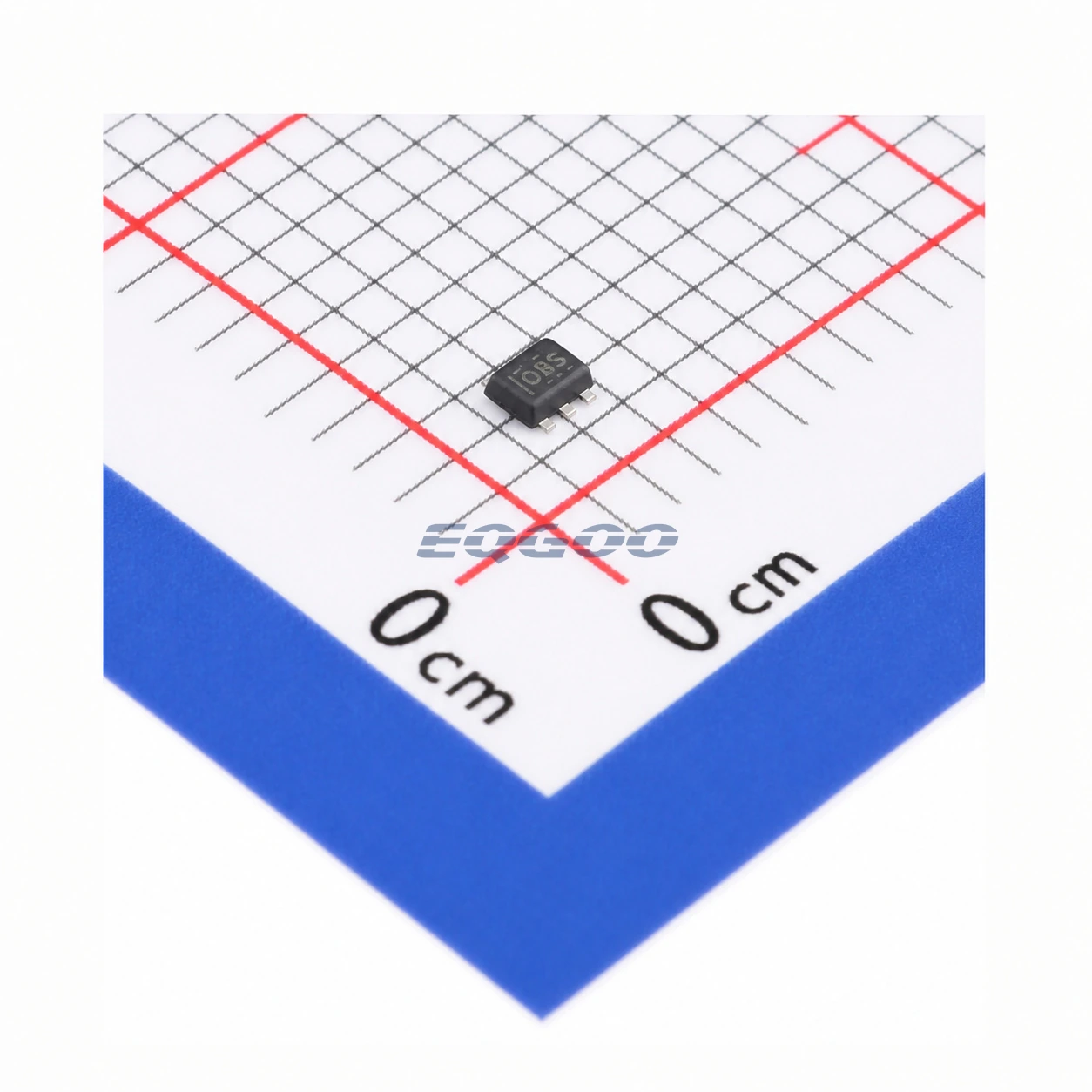

Product Overview
TMP112AIDRLR is a low-voltage digital temperature sensor for compact systems that need better than commodity ±1–2°C performance while operating from rails as low as 1.4 V. The SOT-563 footprint is substantially smaller than SOT-23 while retaining I²C/SMBus and an alert function.
The A variant is characterized for ±0.5°C maximum accuracy from 0°C to 65°C under its stated supply condition and ±1°C maximum across −40°C to 125°C. That accuracy window should be matched to the real operating temperature instead of using only the headline number.
Low active and shutdown current make the part suitable for duty-cycled sensing, but sensor placement and self-heating from nearby board components can dominate system error if the package is mounted in a thermally unrepresentative location.
For related devices, see HKEQGOO’s Temperature Sensors category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | TMP112AIDRLR |
| Accuracy | ±0.5°C maximum from 0°C to +65°C at 3.3 V; ±1°C maximum from −40°C to +125°C |
| Supply | 1.4 V to 3.6 V |
| Resolution | 12 bits, 0.0625°C |
| Interface | I²C/SMBus compatible with programmable alert |
| Addresses | Up to four devices on one bus |
| Power | 7.5 µA maximum active; 0.35 µA maximum shutdown stated features |
| Traceability | Production testing is NIST-traceable |
| Packing | SOT-5X3 (DRL), 6 pins; 4000-piece large tape and reel |
| Manufacturer Status | Active / Production |
| Part Marking | OBS |
Functional Highlights
1.4 V operation removes a separate sensor rail in many low-voltage products
The wide low-voltage supply range can connect directly to modern logic domains without a level translator when the I²C pull-ups are chosen appropriately.
Headline ±0.5°C has a defined temperature/supply window
Outside the central range, the published maximum error relaxes. System specifications should use the limit corresponding to the actual environment.
Design Considerations
- Apply the correct accuracy limit for the intended temperature and supply condition.
- Use shutdown or one-shot strategies when long battery life matters.
- Keep I²C pull-ups compatible with the 1.4–3.6 V domain and avoid thermal coupling to unrelated hot components.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists TMP112AIDRLR as Active / Production; SOT-5X3 (DRL), 6 pins; 4000-piece large tape and reel; Level-1-260C-UNLIM; −40°C to +125°C; marking OBS.
